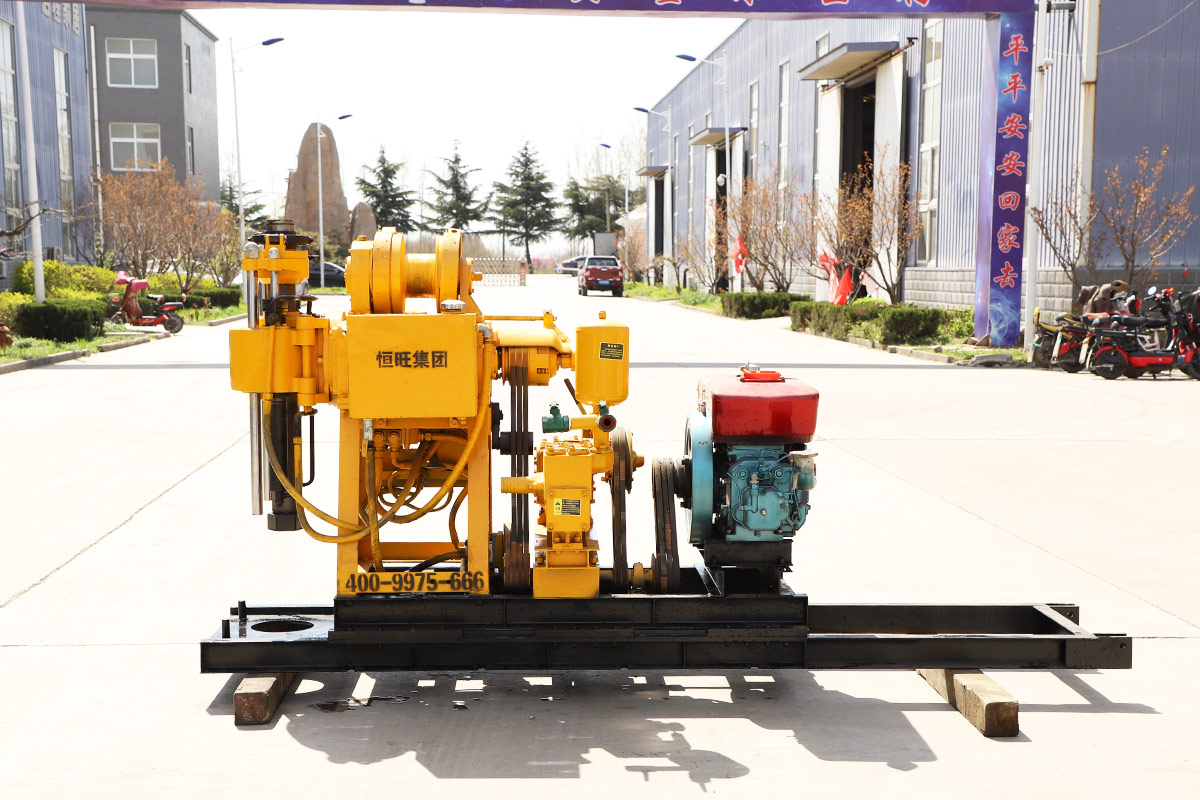

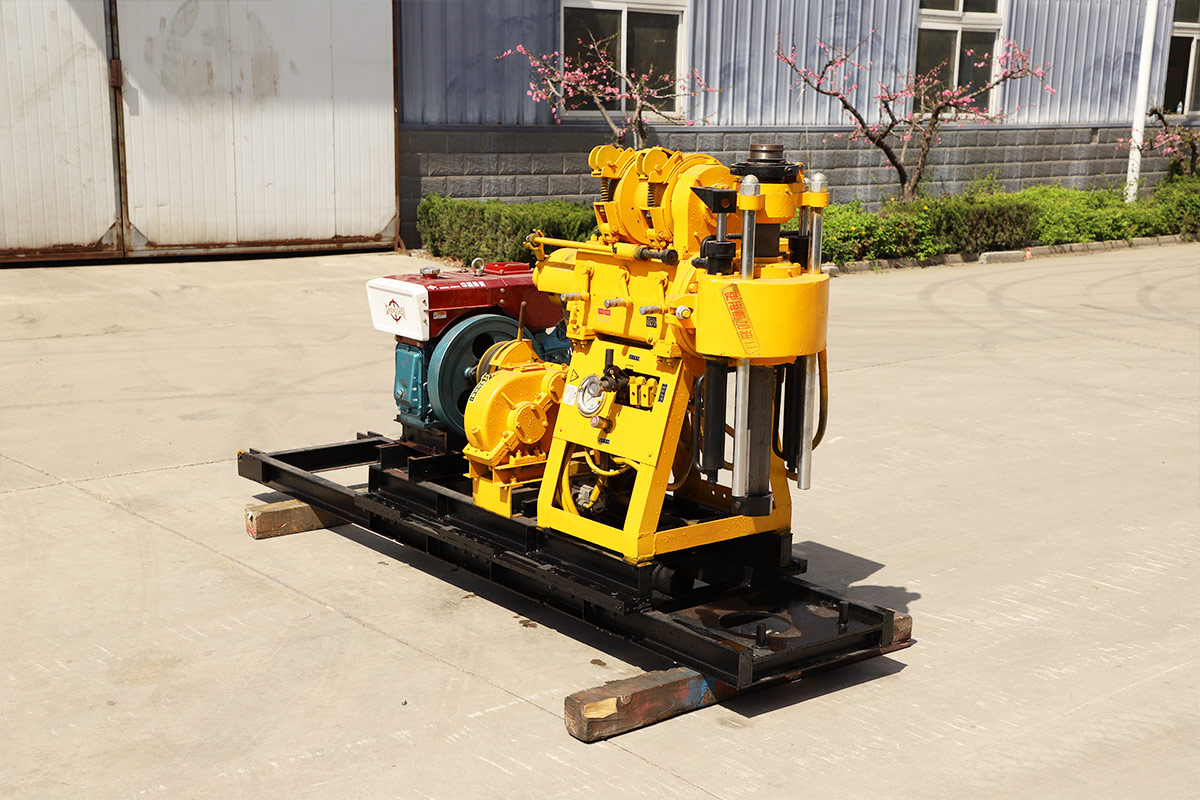

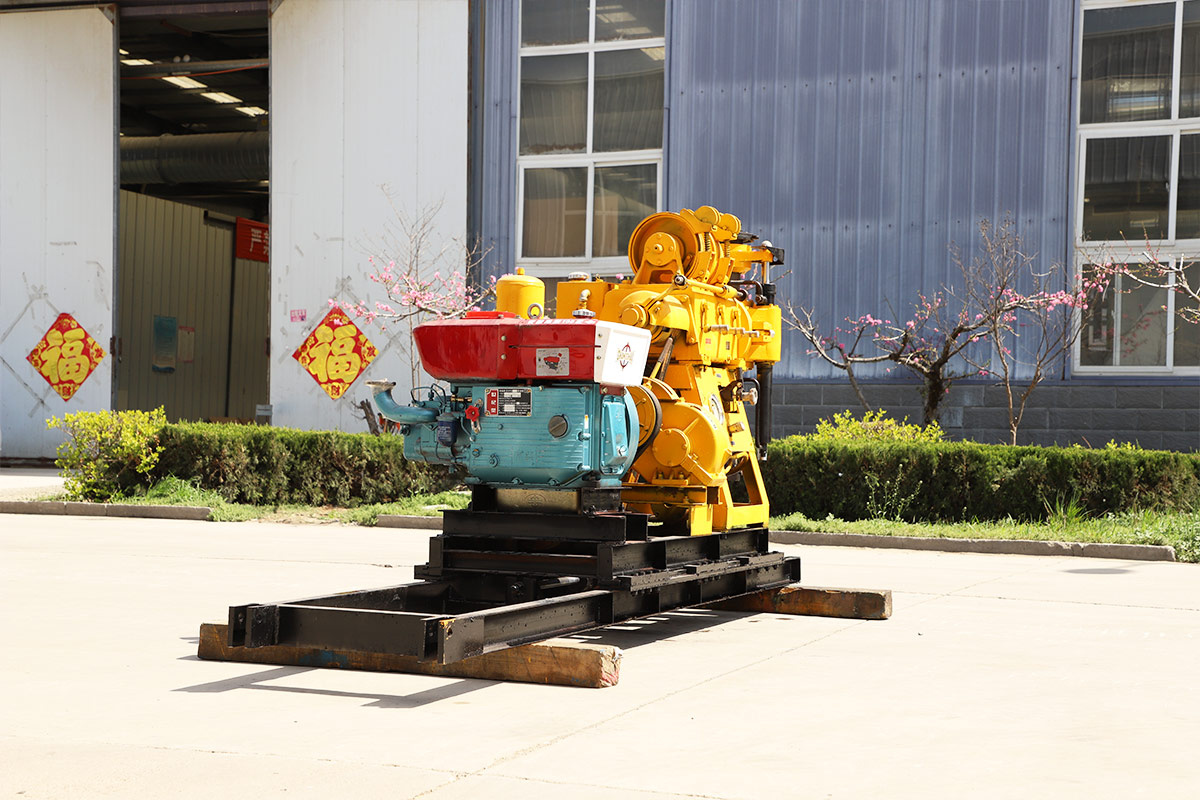

HW-230YY Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling depth: 230m
Drilling diameter: 75-300mm
Rated Power: 15Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon

Hengwang water drilling machines are specifically engineered to be robust and highly reliable, ensuring safe and efficient operation even in the most demanding environments.

The rig offers versatility, making it suitable for various applications including water well drilling, mineral exploration, geothermal applications, soil surveys, rock coring, and more. It can be conveniently mounted on tracks, skids, or trucks, providing flexibility and ease of transportation.



modelHW230YY
Drilling depth230m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50-60mm
Drilling angle90-75°
Engine power15kw
weight950kg
Machine size2700*900*1500mm
Vertical shaft speed64/128/287/557r/min
Vertical axis travel450mm
Single rope lifting force2500kg
Single rope lifting speed0.12-0.95m/s
Wire rope diameterφ12.5mm
Wire rope capacity35m
Rated load18Ton
effective height6.5m
flow145L/Min
greatest pressure2Mpa
Optional configuration

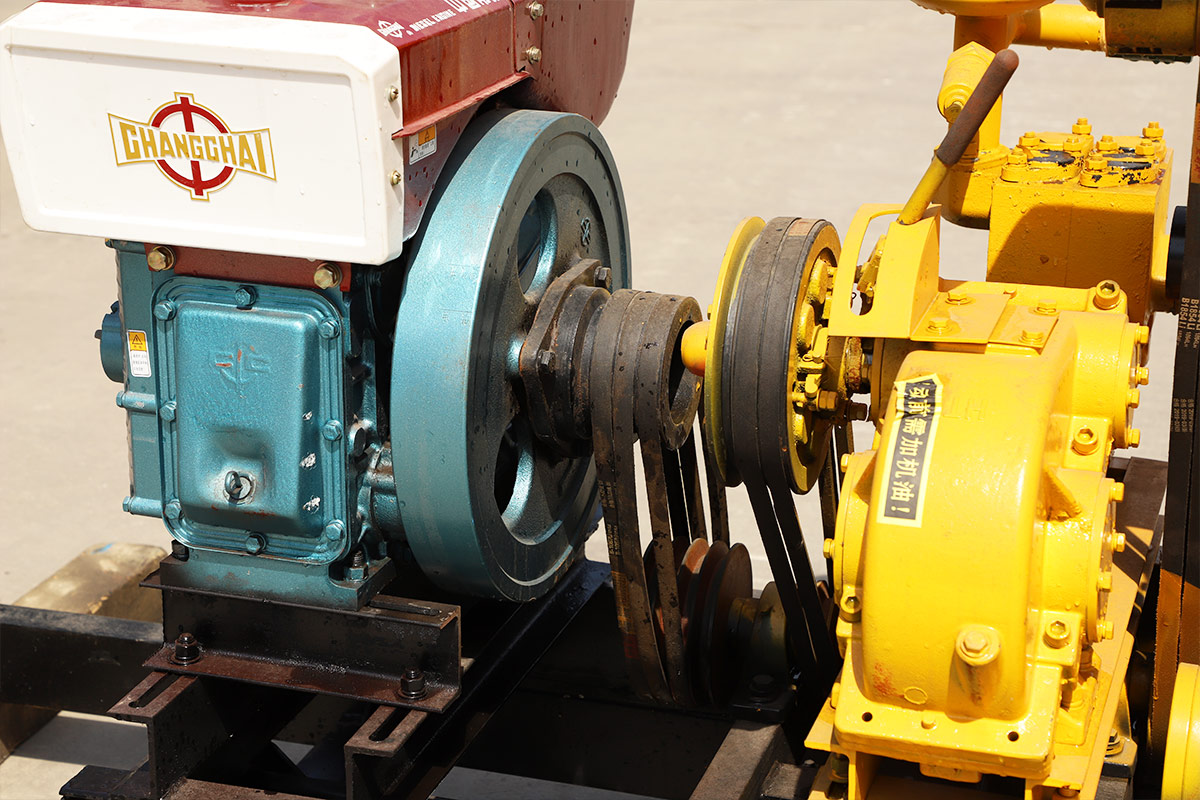

Motor

Main features:

1. Incorporates a hydraulic automatic drilling mechanism, enhancing drilling efficiency and reducing labor intensity.

2. Hengwang well drilling machine is engineered with a focus on optimal compatibility between the engine and hydraulic system, resulting in improved performance and a 7% reduction in fuel consumption.

3. Features a compact and lightweight fuselage design, enabling operation in both plains and mountainous areas with minimal damage to vegetation.


Please note that due to the continuous updates and advancements in technology, the technical parameters and configurations are subject to change upon actual delivery.

Due to the continuous updates and advancements in technology, the technical parameters and configurations of the equipment may vary and are subject to change upon actual delivery. It is recommended to refer to the latest specifications provided at the time of purchase to ensure accurate and up-to-date information.
