Drilling depth: 600m
Drilling diameter: 75-325mm
Rated Power: 42Kw
Drilling diameter: 75-325mm
Rated Power: 42Kw
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon

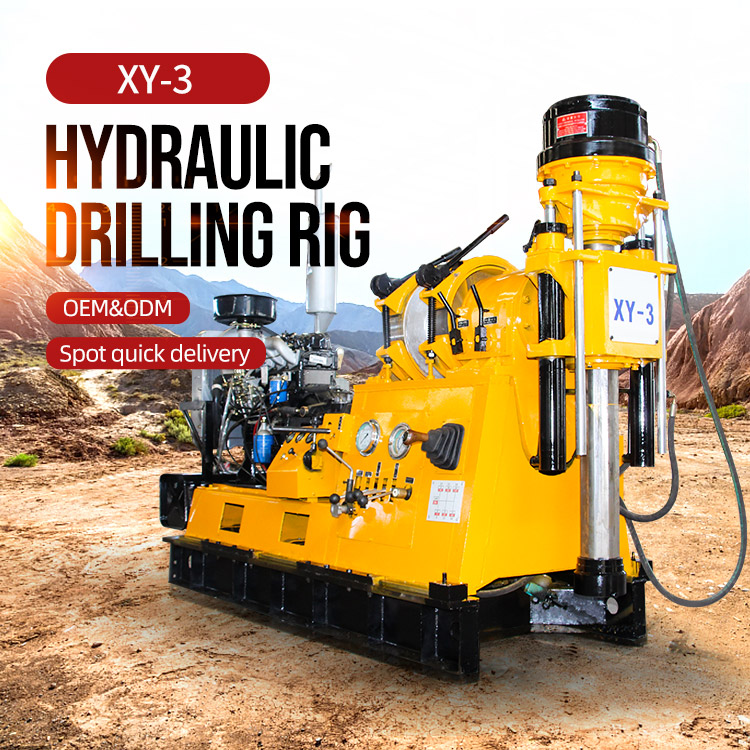

| model | XY-3 | |
| Drilling depth | 600 | m |
| Opening diameter | 325 | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 42 | kw |
| weight | 2350 | kg |
| Machine size | 2600*900*1750 | mm |
| Vertical shaft speed | 32-1057 | r/min |
| Vertical axis travel | 600 | mm |

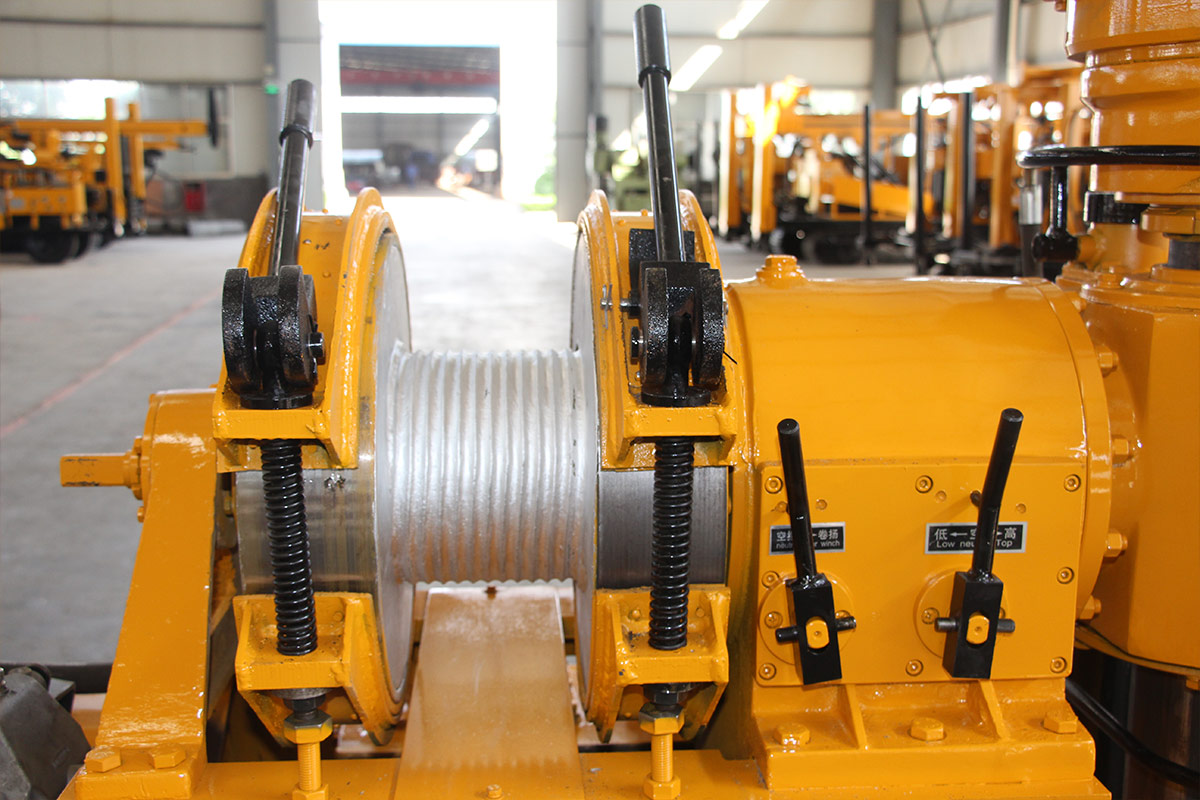

| Single rope lifting force | 3000 | kg |
| Single rope lifting speed | 0.3-1.9 | m/s |
| Wire rope diameter | φ12.5 | mm |
| Wire rope capacity | 65 | m |
| Rated load | 18 | Ton |
| effective height | 11 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Main features:
1. Incorporates a hydraulic automatic drilling mechanism, enhancing drilling efficiency and reducing labor intensity.
2. Hengwang water well drilling rig is engineered with a focus on optimal compatibility between the engine and hydraulic system, resulting in improved performance and a 7% reduction in fuel consumption.
3. Features a compact and lightweight fuselage design, enabling operation in both plains and mountainous areas with minimal damage to vegetation.
Please note that due to the continuous updates and advancements in technology, the technical parameters and configurations are subject to change upon actual delivery.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
