Drilling depth:400-800-1000(m)
Rated speed:2400(rpm)
Maximum torque:950-1300(N·M)
Rated speed:2400(rpm)
Maximum torque:950-1300(N·M)
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon
Parameter
| model | HW-YDX-800SGL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 400-800-1000(M) |
| Hydraulic system | |
| preset pressure | 25(MPA) |
| Rated flow | 260(L/min) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 92（KW） |
| Power head | |
| Maximum torque | 950-1300(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 2400(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 24(T) |
| Feeding force | 12(T) |
| Winch | |
| Lifting force | 600(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 800(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |
| mud pump | Contains Bw-90 mud pump |
| flow | 90-180(L/min) |
| pressure | 4-7(MPA) |
| Shipping dimensions | 5500*2100*2000(MM) |
| Total Weight | 6.5(T) |

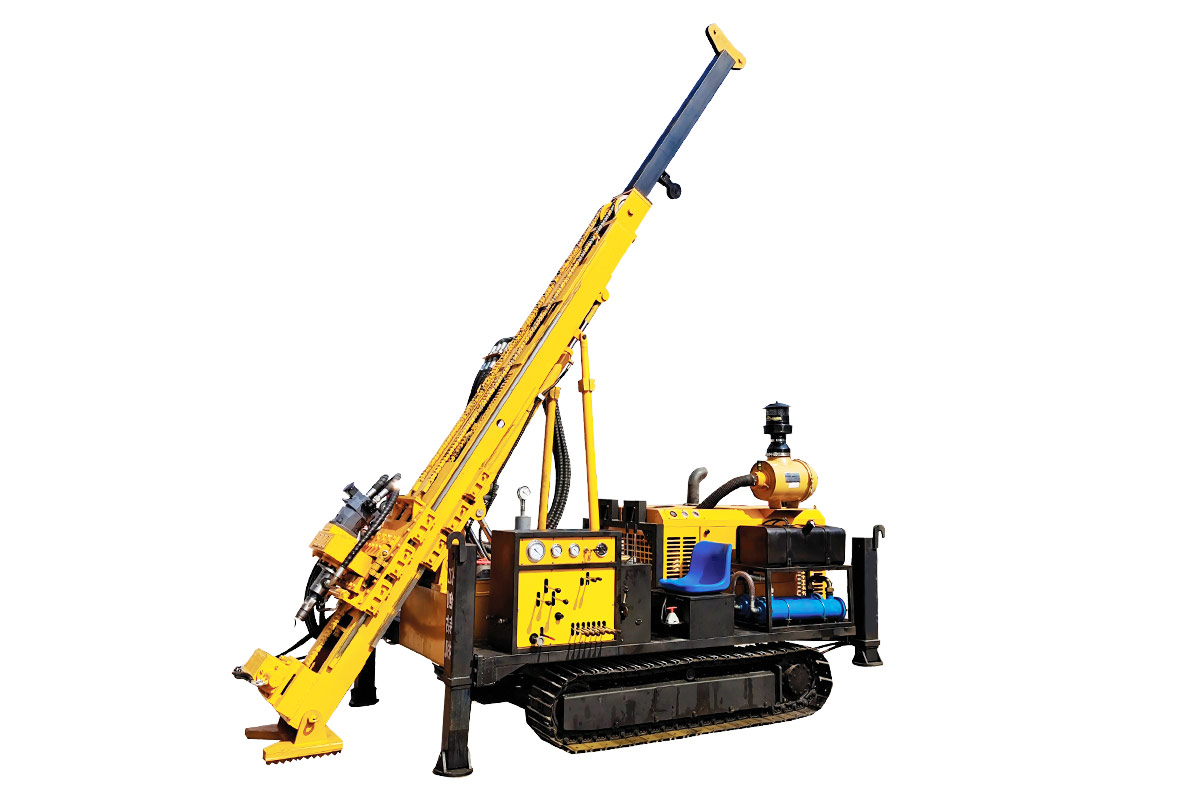

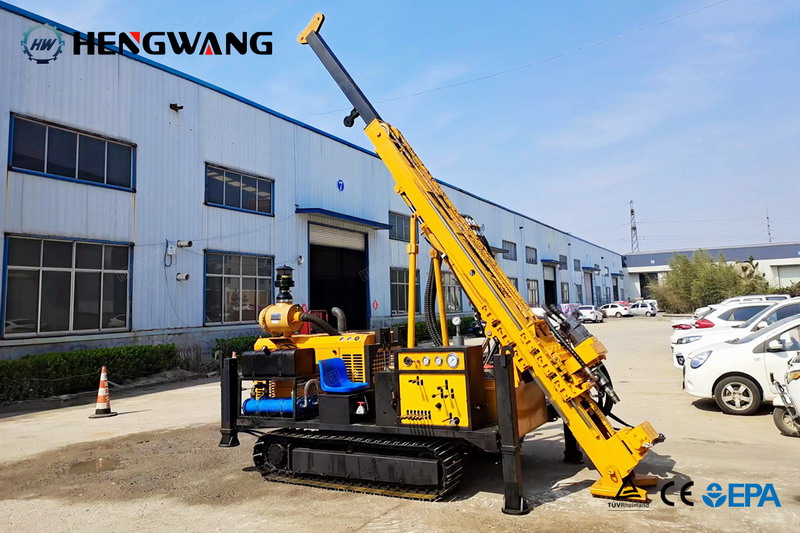

The full hydraulic rock core drilling rig is a highly versatile and advantageous equipment that finds extensive use in various applications.
1. Application Range: It is widely employed in prospecting for minerals such as gold ore, iron ore, coal, lithium ore, rubidium ore, stone ore, and more.
2. Easy Installation: The drilling rig is easy to install, and its rope coring process eliminates the need for lifting the drill pipe. The winch is connected to the salvage device, ensuring efficient coring operations.
3. Improved Efficiency: In contrast to traditional vertical shaft control machines that require drilling and lifting of the drill pipe, the full hydraulic rock core drilling rig offers higher efficiency. It avoids the cumbersome disassembly and assembly of towers, as well as the need for lifting and transporting large equipment, resulting in cost savings.
4. Thin-Wall Drilling Tools: This rig utilizes thin-wall drilling tools, featuring a core diameter of 56 and a thin wall for the drill bit. This design allows for precise and efficient drilling operations.
5. Comparison with Traditional Drilling Rigs: Compared to traditional drilling rigs, the full hydraulic rock core drilling rig offers a larger core diameter of 48 and thinner drill bit walls. This leads to improved drilling performance and enhanced results.
