Drilling depth: 200-600-650 (m)
Rated speed: 2400 (rpm)
Maximum torque: 450-1000 (N·M)
Rated speed: 2400 (rpm)
Maximum torque: 450-1000 (N·M)
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon
Parameter:
| model | HW-YDX-600XL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 200-600-650(M) |
| Hydraulic system | |
| preset pressure | 21(MPA) |
| Rated flow | 192(L/min) |

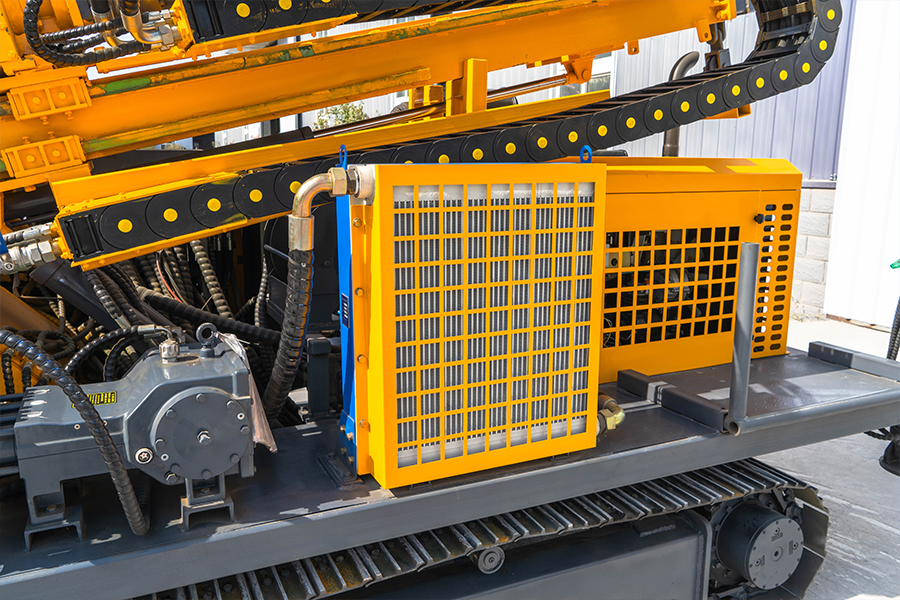

| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Yuchai |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 92（KW） |
| Power head | |
| Maximum torque | 450-1000(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 1900(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 16(T) |
| Feeding force | 8(T) |
| Winch | |
| Lifting force | 600(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 600(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |
| hydraulic mud pump | |
| mud pump | Contains Bw-90 mud pump |
| flow | 30-90(L/min) |
| pressure | 4-7(MPA) |
| Shipping dimensions | 4000*2000*1800(MM) |
| Total Weight | 4.5/5.5(T) |

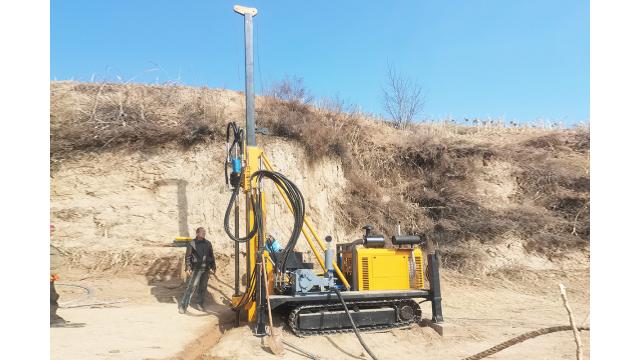

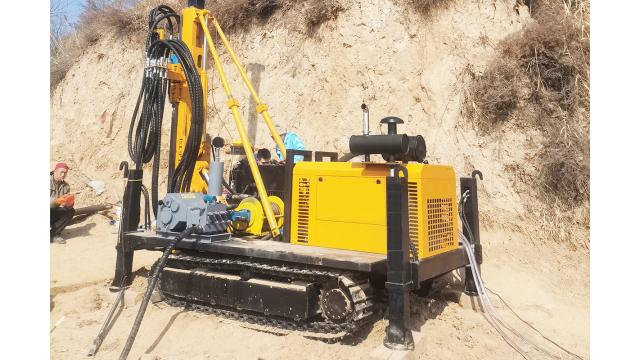

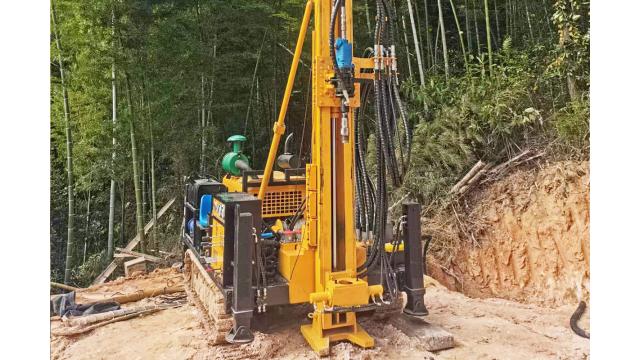

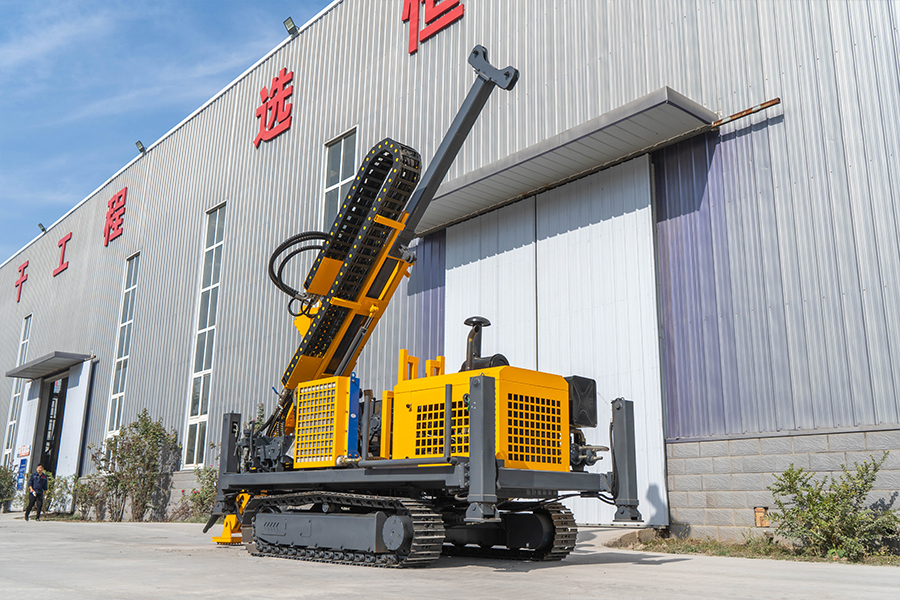

Hengwang full hydraulic core drilling rig is ideal for:
1. Mine Drilling (Geotechnical and Environmental)
2. Rock coring
3. Shallow exploration screening and sampling
To get the latest parameters and quotations, please submit the form.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
