Drilling depth:500-1000-1100(m)
Rated speed:2400(rpm)
Maximum torque:1000-3500(N·M)
Rated speed:2400(rpm)
Maximum torque:1000-3500(N·M)
Crazy Engineering Day discounts, submit the form to receive discounts on orders.
Parameter
| model | HW-YDX-1000GL |
| Drilling ability | |
| caliber | HTW-NTW-BTW |
| depth | 500-1000-1100(M) |
| Hydraulic system | |
| preset pressure | 28(MPA) |
| Rated flow | 300(L/min) |
| Cooling type | Air cooling + Water cooling |
| Engine | |
| Brand | Cummins |
| Type | Turbocharged |
| Rated rotary speed | 2400(RPM) |
| Rated power | 154（KW） |

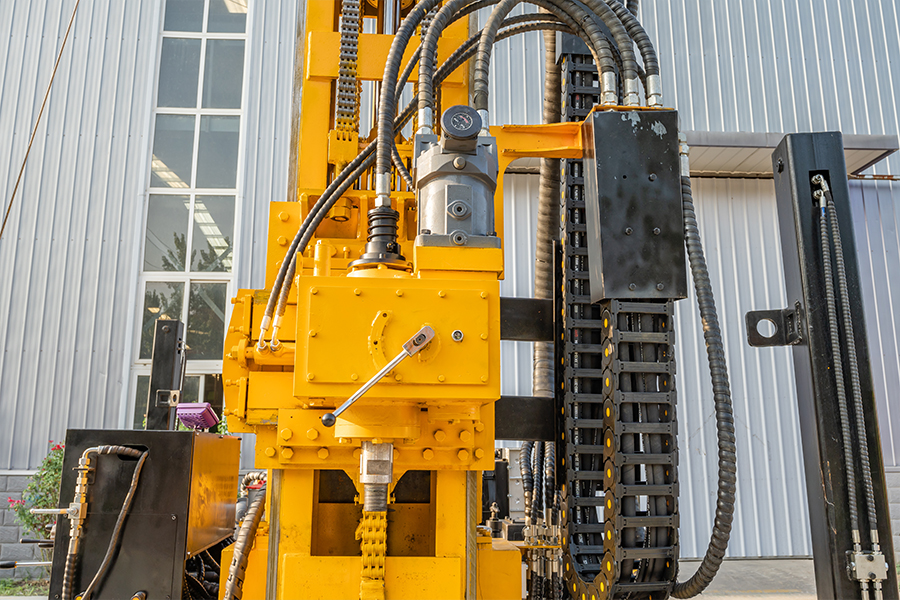

| Power head | |
| Maximum torque | 1000-3500(N.M) |
| Maximum rotary speed | 1300(RPM) |
| Feeding stroke | 3500(MM) |
| Drilling tower | |
| Type | Ground contact integrated tower |
| Drilling angle | 45-90(°) |
| Lifting force | 30(T) |
| Feeding force | 15(T) |
| Winch | |
| Lifting force | 1000(KG) |
| Rotary speed | 100-300(RPM) |
| Wire rope diameter | 6(MM) |
| Rope capacity | 1000(M) |
| walk | |
| type | Manual + remote control |
| Walking speed | 3.5(KM/H) |
| Single machine climbing angle | 45(°) |

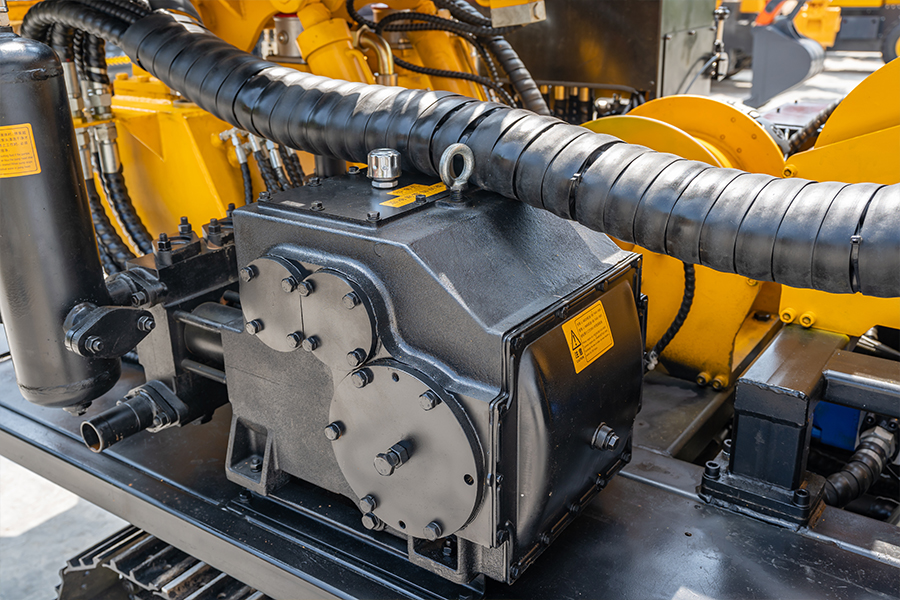

| hydraulic mud pump | |
| mud pump | Contains Bw-160 mud pump |
| flow | 90-180(L/min) |
| pressure | 4-7(MPA) |
| Shipping dimensions | 6000*2200*2400(MM) |
| Total Weight | 7.5(T) |

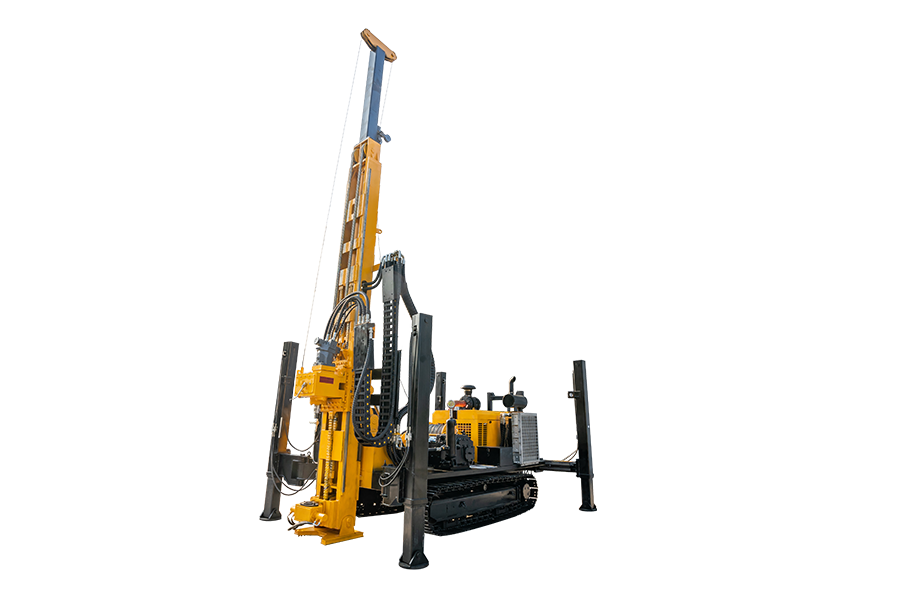

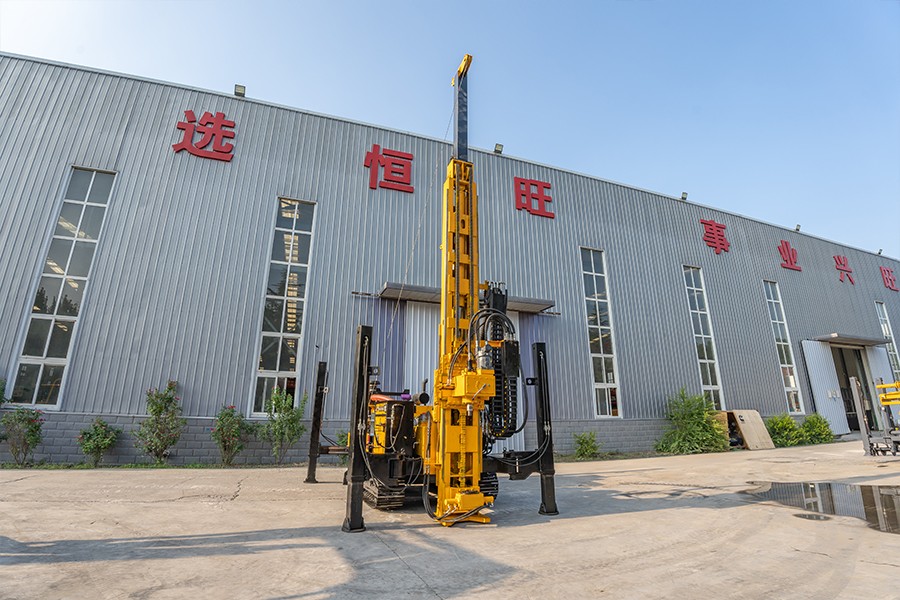

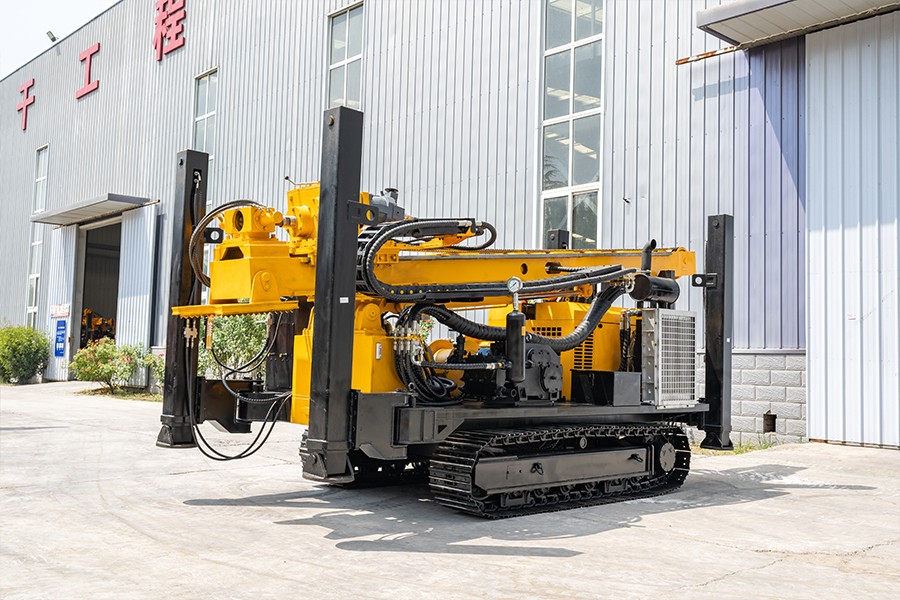

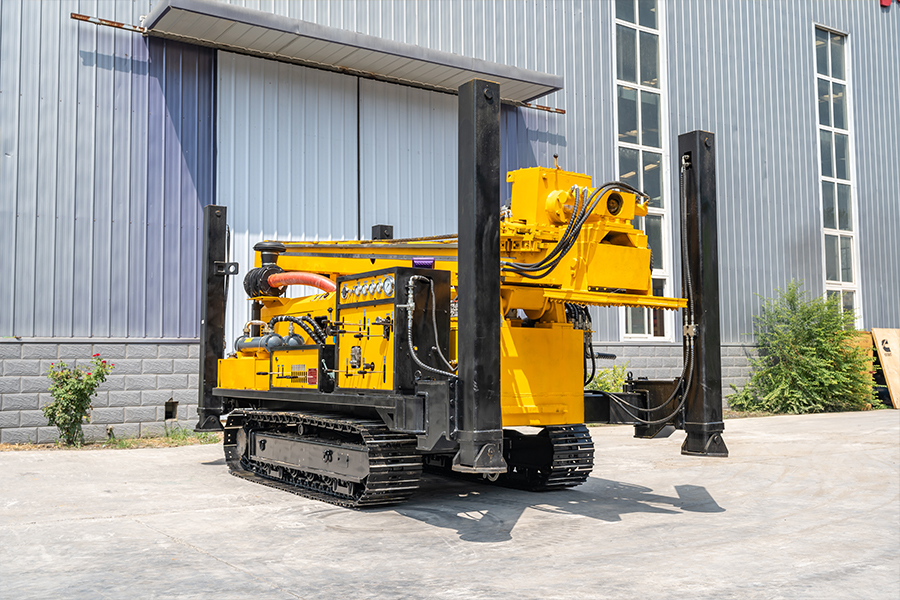

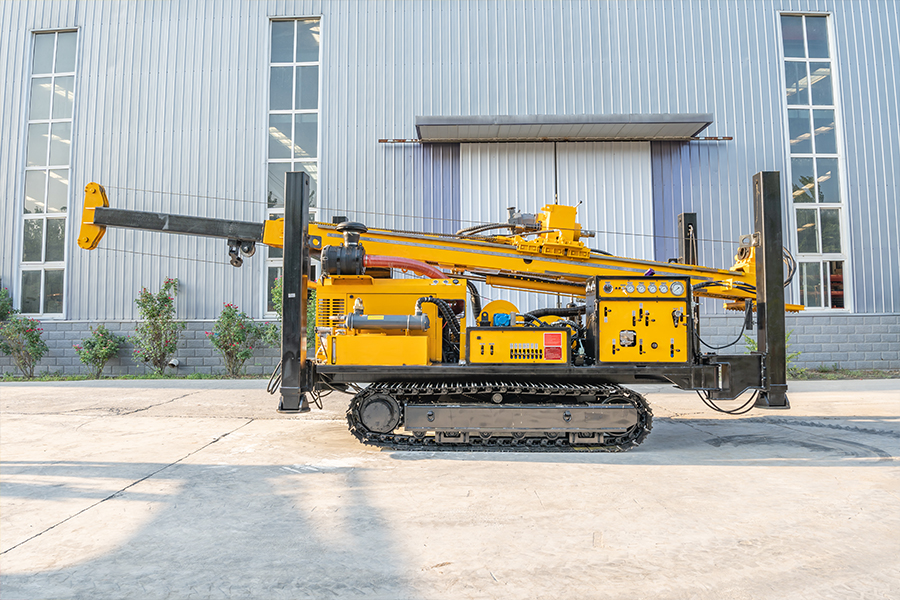

The full hydraulic rock core drilling rig is a widely used equipment that offers significant advantages in various applications.
1. Versatile Application: It is suitable for prospecting and drilling in a range of minerals such as gold ore, iron ore, coal, lithium ore, rubidium ore, and stone ore.
2. Easy Installation: The rig is easy to install, and during rope coring, there is no need to lift the drill pipe. The winch is connected to the salvage device, ensuring high coring efficiency.
3. Enhanced Efficiency: Unlike traditional vertical shaft control machines that require drilling and lifting of the drill pipe, the hydraulic rock core drilling rig offers higher efficiency. It eliminates the need for troublesome disassembly and assembly of the tower, and large equipment lifting and transportation, thereby reducing costs.
4. Thin-Wall Drilling Tools: The drilling rig utilizes thin-wall drilling tools, with a core diameter of 56 and a thin drill bit wall. This enables precise and efficient drilling operations.
5. Comparison to Traditional Drilling Rigs: In comparison to traditional drilling rigs, the full hydraulic rock core drilling rig offers a larger core diameter of 48 and thinner drill bit walls. This provides improved drilling performance and better results.
