Drilling depth: 200m
Drilling diameter: 75-350mm
Engine Power: 42Kw
Drilling diameter: 75-350mm
Engine Power: 42Kw

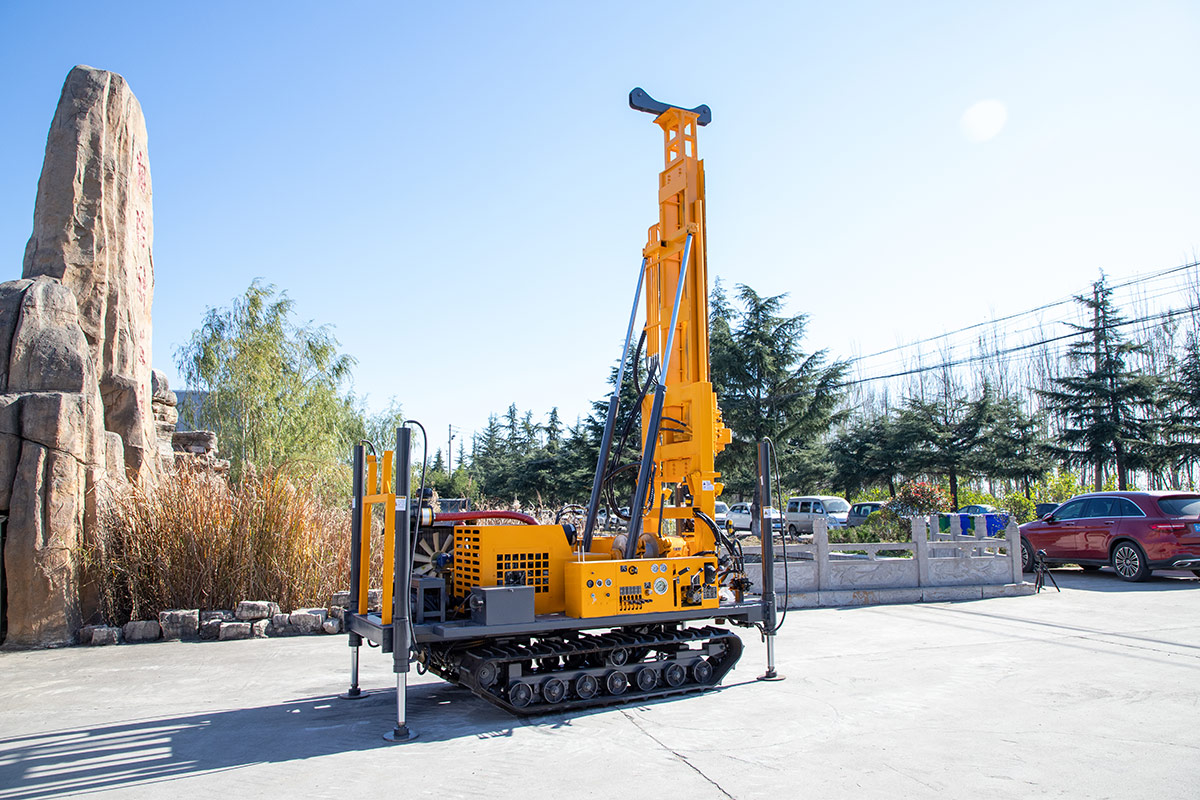

HWDL-280 pneumatic water well drilling rig is a lightweight, efficient and multifunctional drilling equipment.Suitable for industrial, civil drilling and geothermal drilling projects.
Main features:
1. Pneumatic drilling rig cooperates with air compressor, which has high working efficiency.
2. Increase the counterweight, the work stability is strong.
3. The engine and hydraulic system cooperate perfectly, reducing fuel efficiency.
Parameter:
| Model | HWDL280 |
| Drilling depth | 200m (152mm~203mm) |
| Rope core-drilling 75mm bore diameter | 300m |
| Drilling diameter | Ø75～Ø350mm |
| Drilling angle | 90° |
| Lifting force | 100KN |
| Propulsive force | 50KN |
| Rotating speed | Forward: 33-1120r/min |
| Reverse: 37/180r/min | |
| Maximum torque | 9800N.m |
| Transport dimension | 4600*1700*2400mm |
| Working state dimension | 3200*2300*5600mm |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
