Drilling depth: 500m
Drilling diameter: 130-350mm
Engine Power: 118Kw
Drilling diameter: 130-350mm
Engine Power: 118Kw
| model | HQZ-500L | |
| tower | 6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-350 | mm |
| Drilling depth | 500 | m |
| One-time advancement length | 6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 118 | kw |
| working pressure | 1.7-3.5 | mpa |
| Air consumption | 17-42 | m³/min |
| Drill pipe diameter | 102/108/114 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 26 | T |
| Swing speed | 40-100 | rpm |
| Rotating torque | 8000-10000 | N.m |
| Dimensions | 6000*2200*2950 | mm |
| weight | 11.5 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.

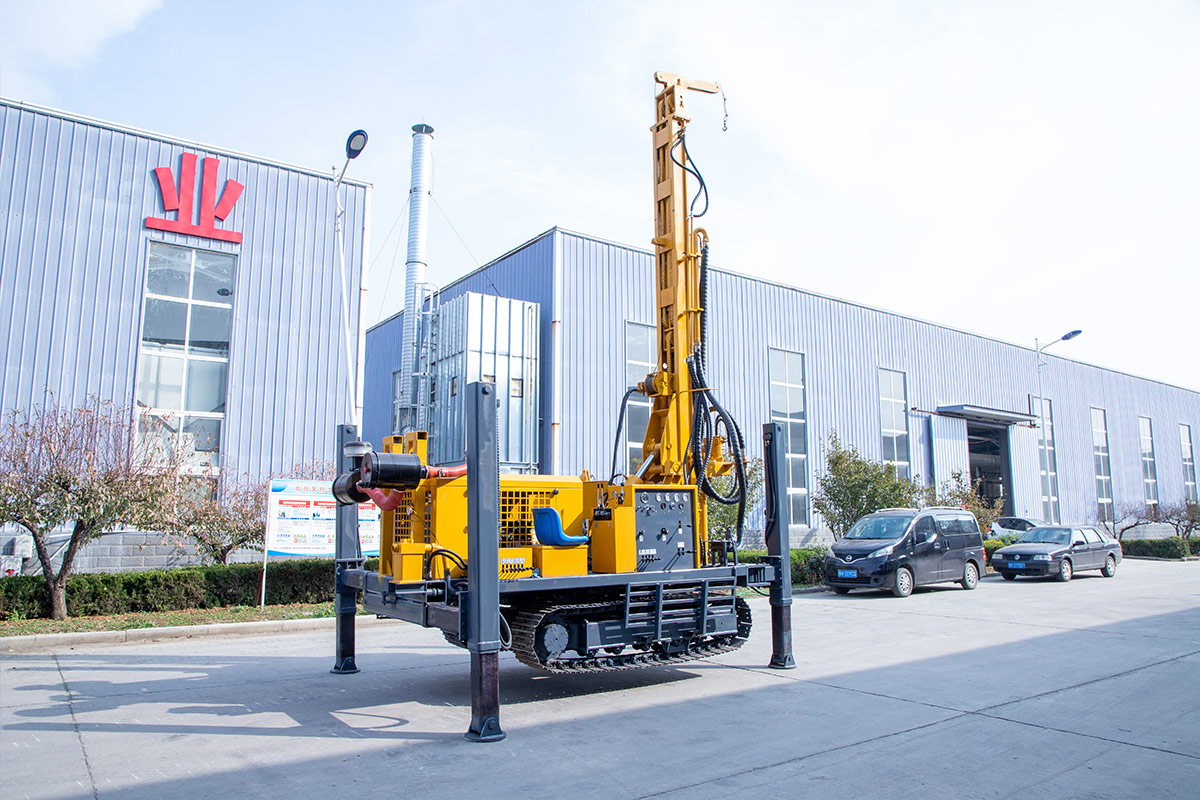

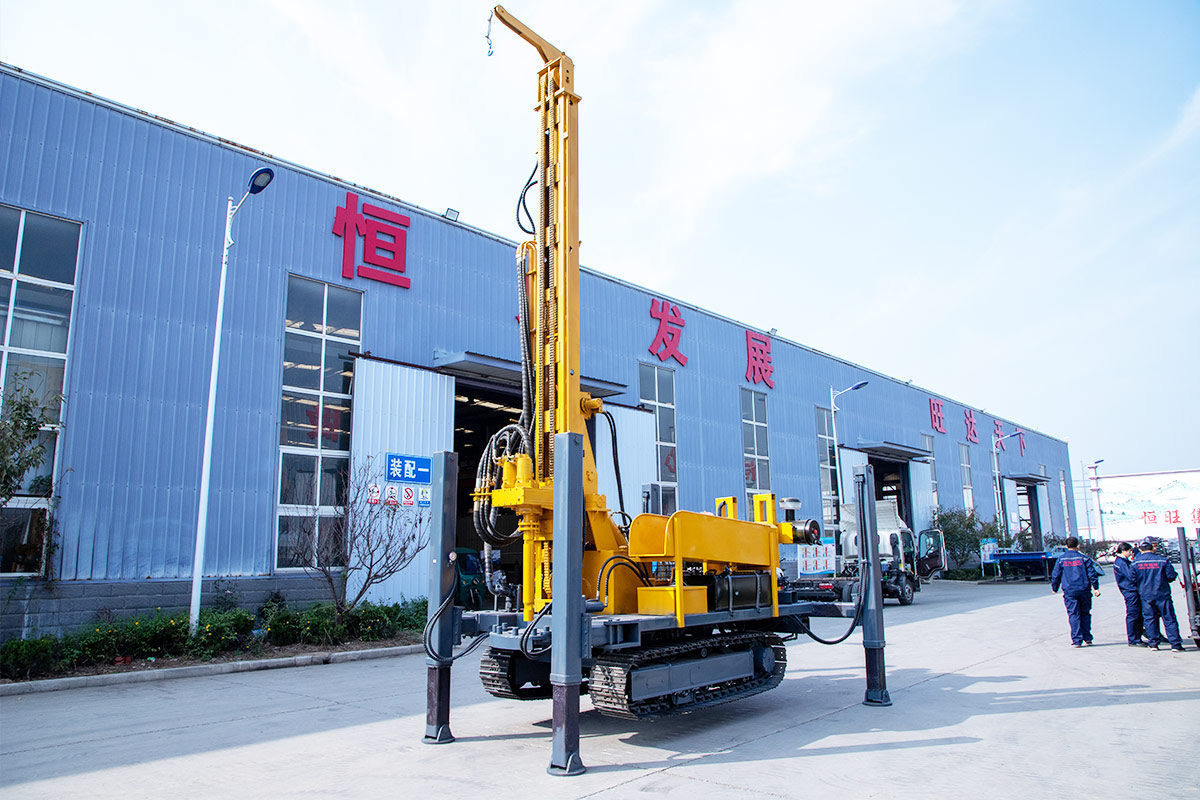

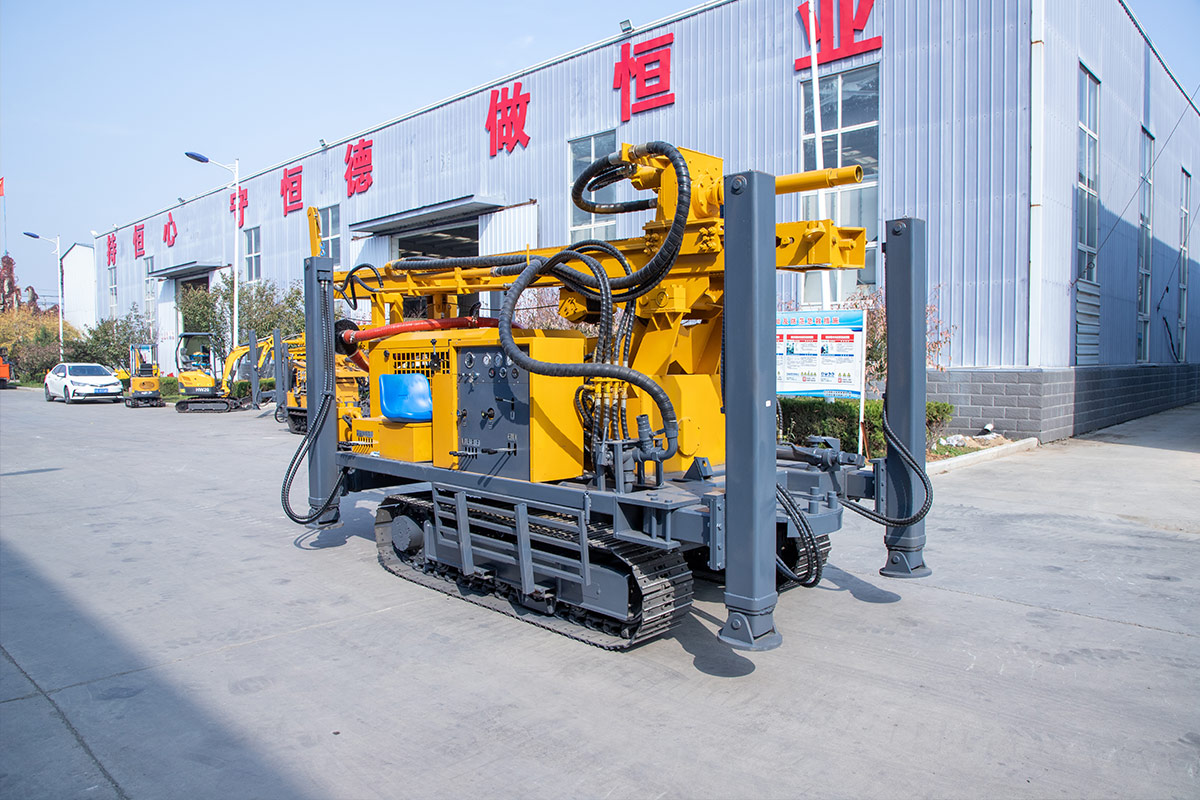

HQZ pneumatic rig for drillling is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
Main feature:
1. Pneumatic drilling rig cooperates with air compressor, which has high working efficiency.
2. Increase the counterweight, the work stability is strong.
3. The engine and hydraulic system cooperate perfectly, reducing fuel efficiency.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
