Drilling depth: 160m
Drilling diameter: 75-500mm
Rated Power: 13.2Kw
Drilling diameter: 75-500mm
Rated Power: 13.2Kw
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon
Parameter

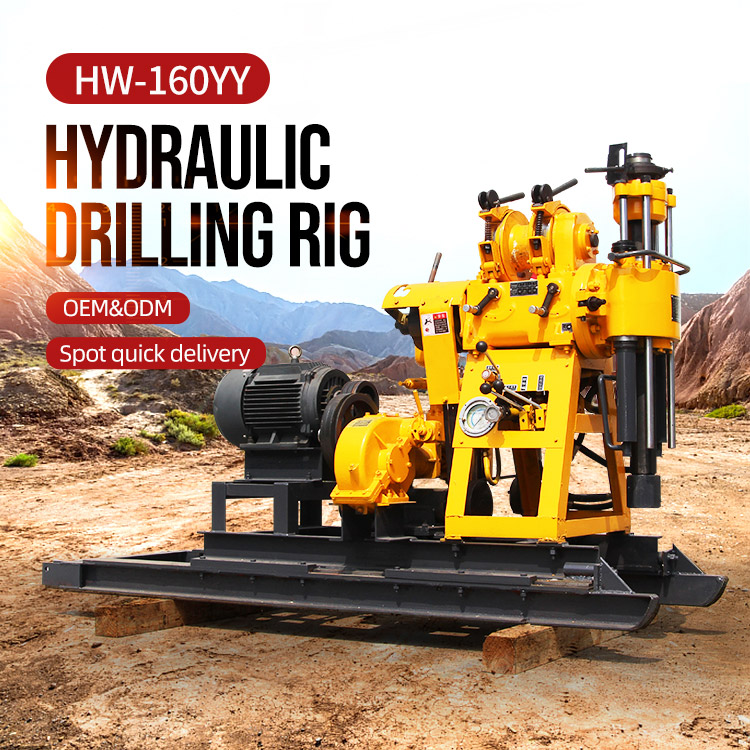

| model | HW160YY | |
| Drilling depth | 160 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 13.2 | kw |
| weight | 850 | kg |
| Machine size | 2400*800*1300 | mm |
| Vertical shaft speed | 142/285/570 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2000 | kg |
| Single rope lifting speed | 0.41-1.64 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Main features:
1. The well drilling machine has a compact size, enabling it to operate effectively in limited spaces, while still possessing impressive power.
2. The drilling rig offers flexibility in configurations, allowing customization to meet the specific requirements of customers.
3. Thanks to its robust engineering and high reliability, this drilling rig is capable of tackling challenging conditions and achieving impressive drilling depths that often exceed expectations for a rig of its size.
Indeed, due to the continuous advancements and progress in technology, the technical parameters and configurations of the equipment are subject to change and may vary upon actual delivery.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
