Drill Diameter: 75-150mm
Drill Depth: 180m
Engine Power: 13.2Kw
Drill Depth: 180m
Engine Power: 13.2Kw

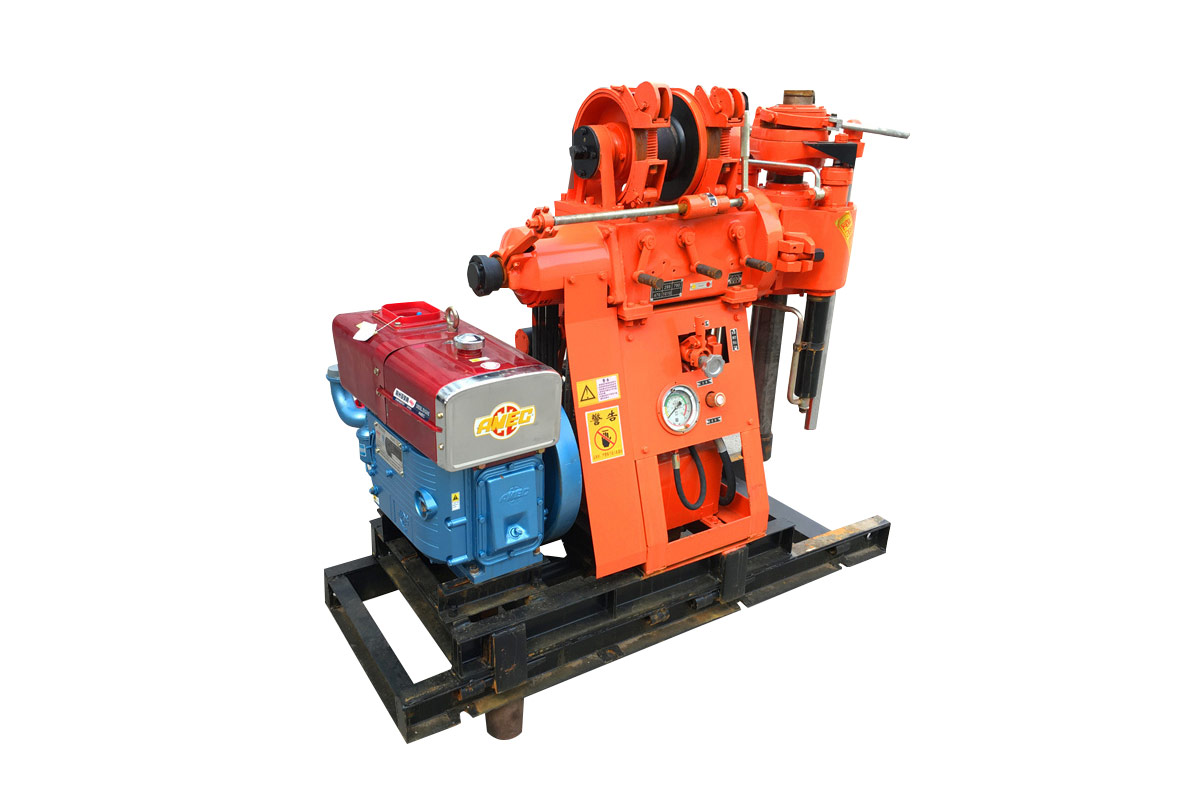

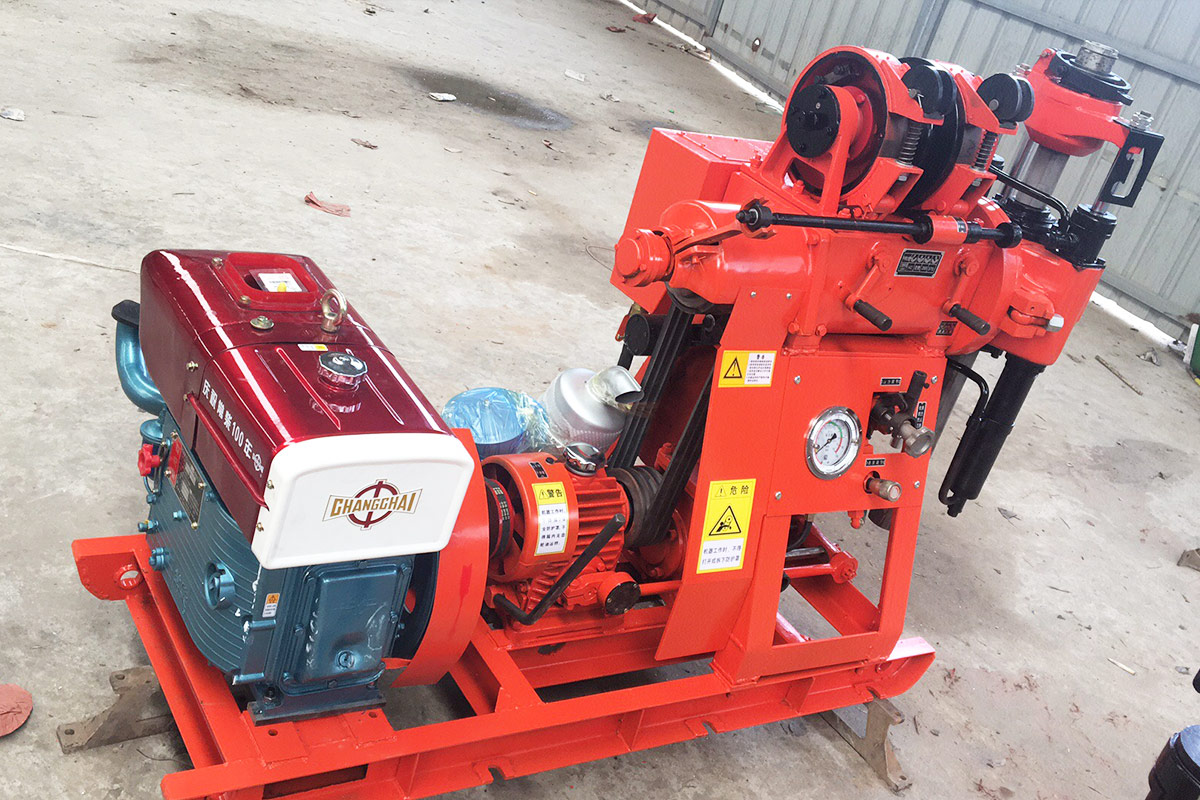

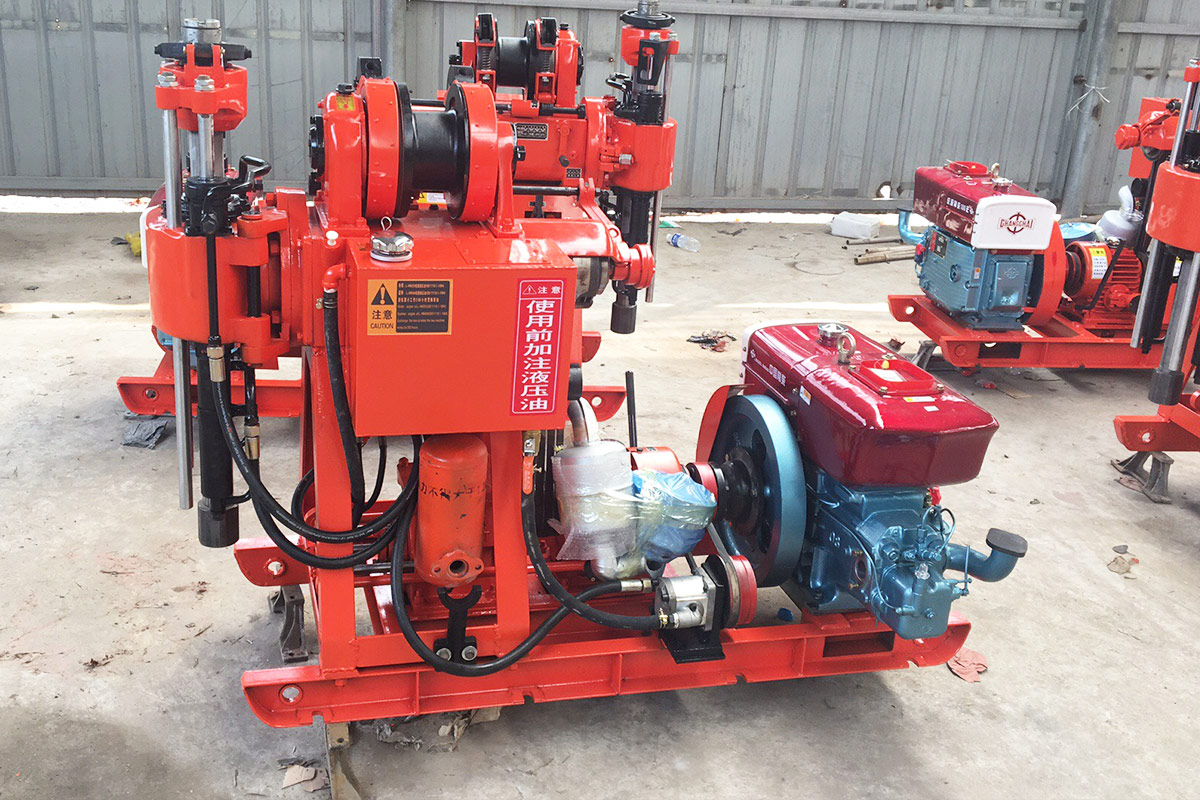

This drill rig is a high-speed rig suitable for census exploration, Geophysical exploration,road and building exploration and blasting holes and other drilling projects.
We can use alloys, diamonds and composite sheets bits to drill depending on the bottom layer difference.
It can drill 2-9 grade sandy clay and rock formations, etc.
Feature:
It has a hydraulic automatic feeding mechanism to improve drilling efficiency and reduce labor intensity.
It adopts the ball card clamping mechanism instead of the chuck, and can implement the non-stop bar, easy to operate, safe and reliable.
The hoist is equipped with a frame to form a double-sided support star structure that can withstand strong impact.
Model | XY-1A | ||
Drilling depth | 180m | Open hole dia | φ75-150mm |
End hole dia | 75-46mm | Main rod | 53/59*4200mm |
Drill rod dia | φ50mm φ42 | Drill angle | 90°～75° |
Supporting power | 13.2Kw/2200/r/min | Weight/size | 920kg/2400*950*1400 |
Drill mast | |||
Rated load | 2t | Effective height | 6m |
Tower leg specifications | 73mm | ||
Winch parameters | |||
Single rope lifting force | 9.6kN | Single rope lifting speed | 0.3. 0.8. 1.29. 1.96. 2.23m/s |
Roll diameter | φ140mm | Rope diameter | 27m |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the best price.
