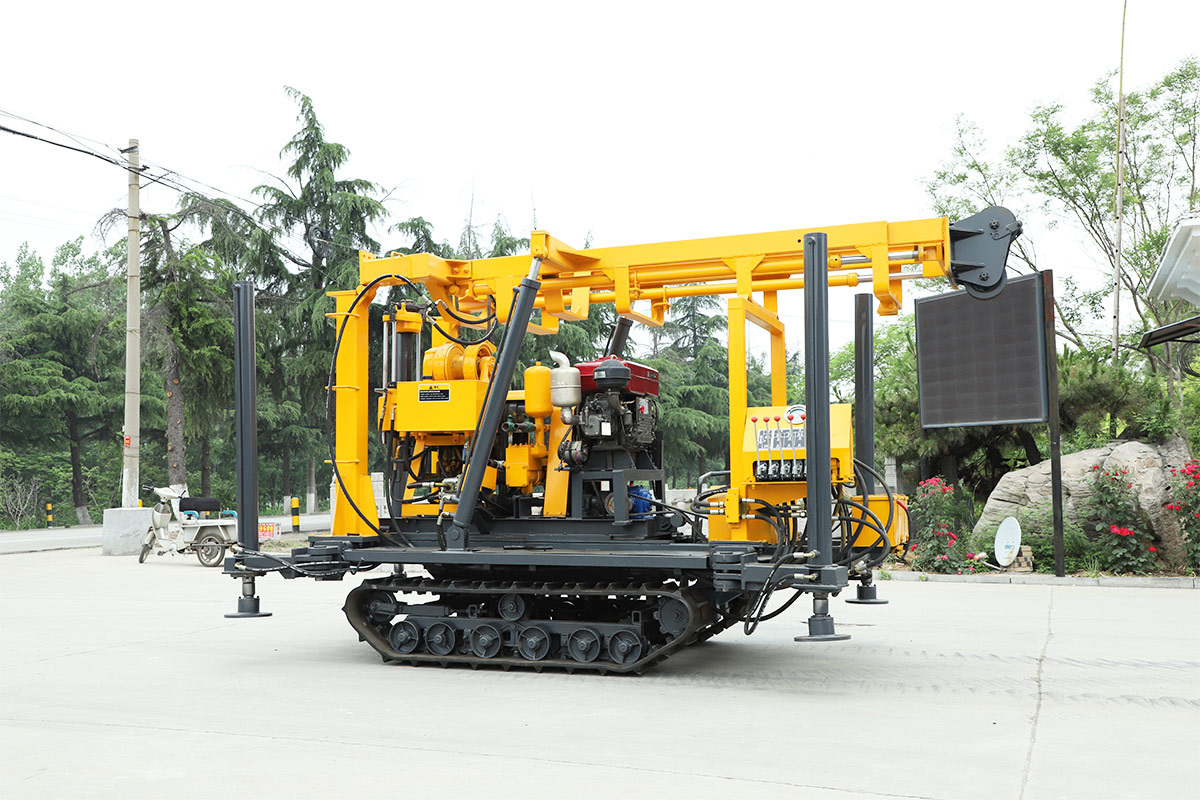

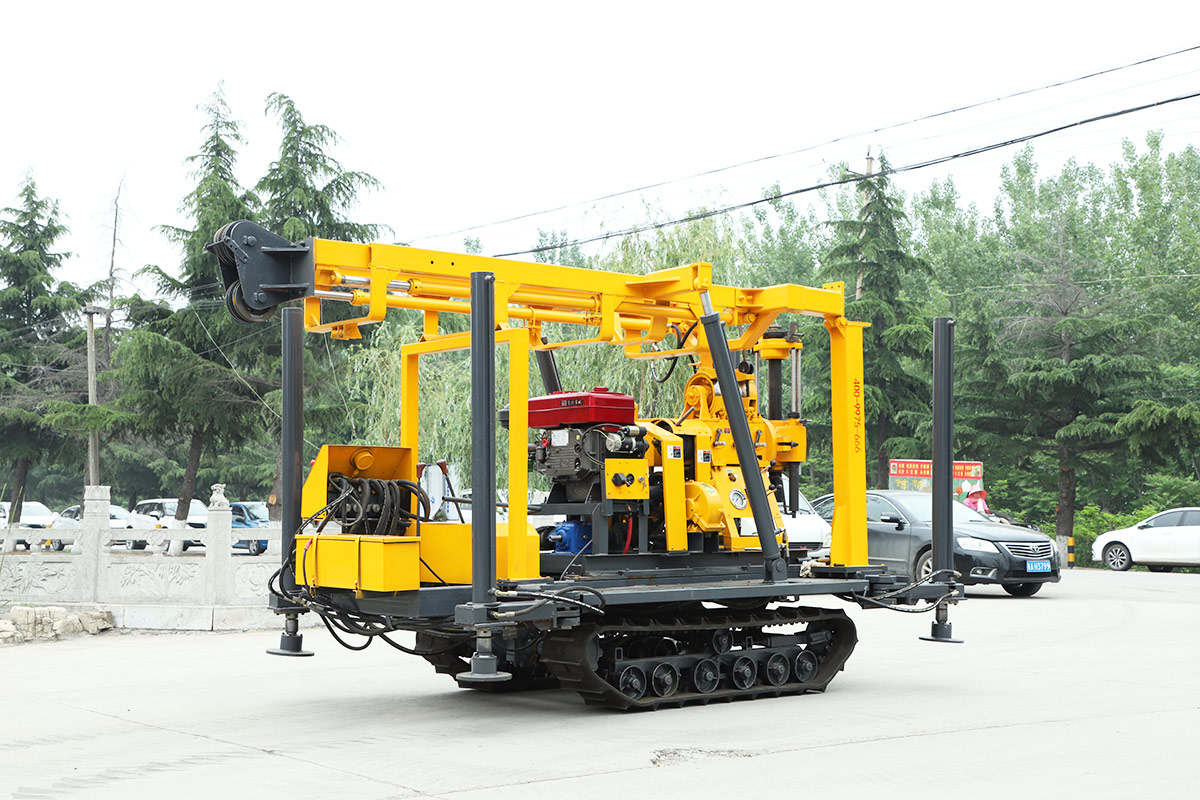

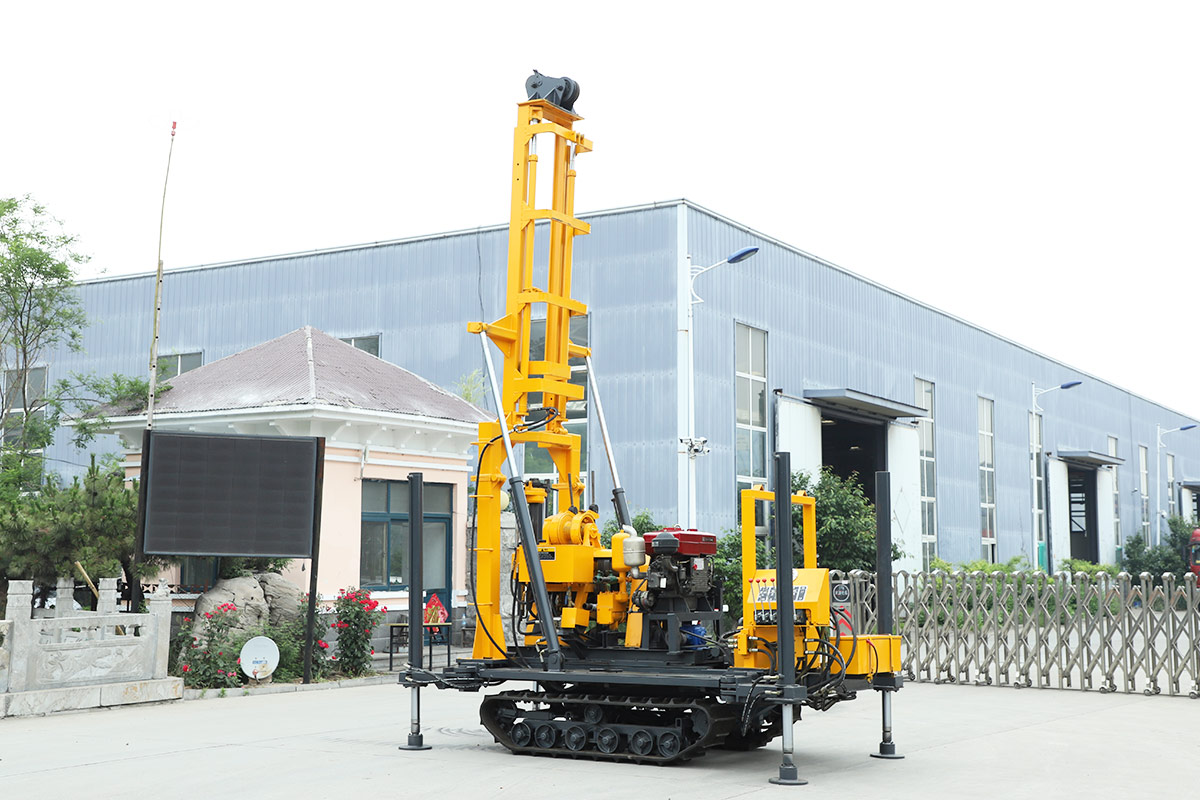

HW-190L Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling diameter: 75-500mm
Drilling depth: 190m
Rated Power: 13.2Kw
Product Detail


Crazy Engineering Day promotion, submit the form to get instant order discounts and coupons


Parameter

modelHW190L
Drilling depth190m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50-60mm
Drilling angle90-75°
Engine power13.2kw
weight3250kg
Machine size3800*1950*2700mm
Vertical shaft speed64/128/287/557r/min
Vertical axis travel450mm
Single rope lifting force2500kg
Single rope lifting speed0.12-0.95m/s
Wire rope diameterφ12.5mm
Wire rope capacity35m
Rated load18Ton
effective height6.5m
flow145L/Min
greatest pressure2Mpa
Optional configuration
Motor

Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.

The Hengwang water well drilling rig offers several key features that enhance its performance and operational efficiency:

1. Fuel Efficiency Improvement: The rig is designed to optimize fuel consumption, resulting in a 7% reduction compared to conventional rigs. This not only helps reduce operational costs but also contributes to a more environmentally friendly drilling process.

2. Hydraulic Automatic Drilling Mechanism: The rig incorporates a hydraulic automatic drilling mechanism that enhances drilling efficiency. This mechanism streamlines the drilling process, reduces manual labor, and improves overall productivity. It enables operators to achieve higher drilling speeds and increased accuracy.

3. Compact and Lightweight Design: The drilling rig is constructed with a compact and lightweight design, making it highly maneuverable and versatile. This feature allows the rig to operate effectively in various terrains, including plains and mountainous areas. Moreover, the rig's lightweight design minimizes the impact on vegetation, reducing environmental disruption during drilling operations.

These main features collectively contribute to the rig's overall performance, efficiency, and environmental friendliness. They make the Hengwang water well drilling rig a reliable and efficient choice for various drilling applications, providing a balance between productivity and environmental sustainability.
