Drilling diameter: 75-500mm
Drilling depth: 160m
Rated Power: 13.2Kw
Drilling depth: 160m
Rated Power: 13.2Kw
Crazy Engineering Day discounts, submit the form to receive discounts on orders.
Parameter
| model | HW160L | |
| Drilling depth | 160 | m |
| Opening diameter | 500(Soil)/220(Rock) | mm |
| final hole diameter | 75 | mm |
| Drill pipe diameter | 42-50 | mm |
| Drilling angle | 90-75 | ° |
| Engine power | 13.2 | kw |
| weight | 3200 | kg |
| Machine size | 3800*1950*2700 | mm |
| Vertical shaft speed | 142/285/570 | r/min |
| Vertical axis travel | 450 | mm |
| Single rope lifting force | 2000 | kg |
| Single rope lifting speed | 0.41-1.64 | m/s |
| Wire rope diameter | φ9.3 | mm |
| Wire rope capacity | 27 | m |
| Rated load | 18 | Ton |
| effective height | 6.5 | m |
| flow | 95 | L/Min |
| greatest pressure | 1.2 | Mpa |
| Optional configuration | Walking Gantry | |
Due to the continuous updates and advancements in technology, technical parameters and configurations are subject to change upon actual delivery.

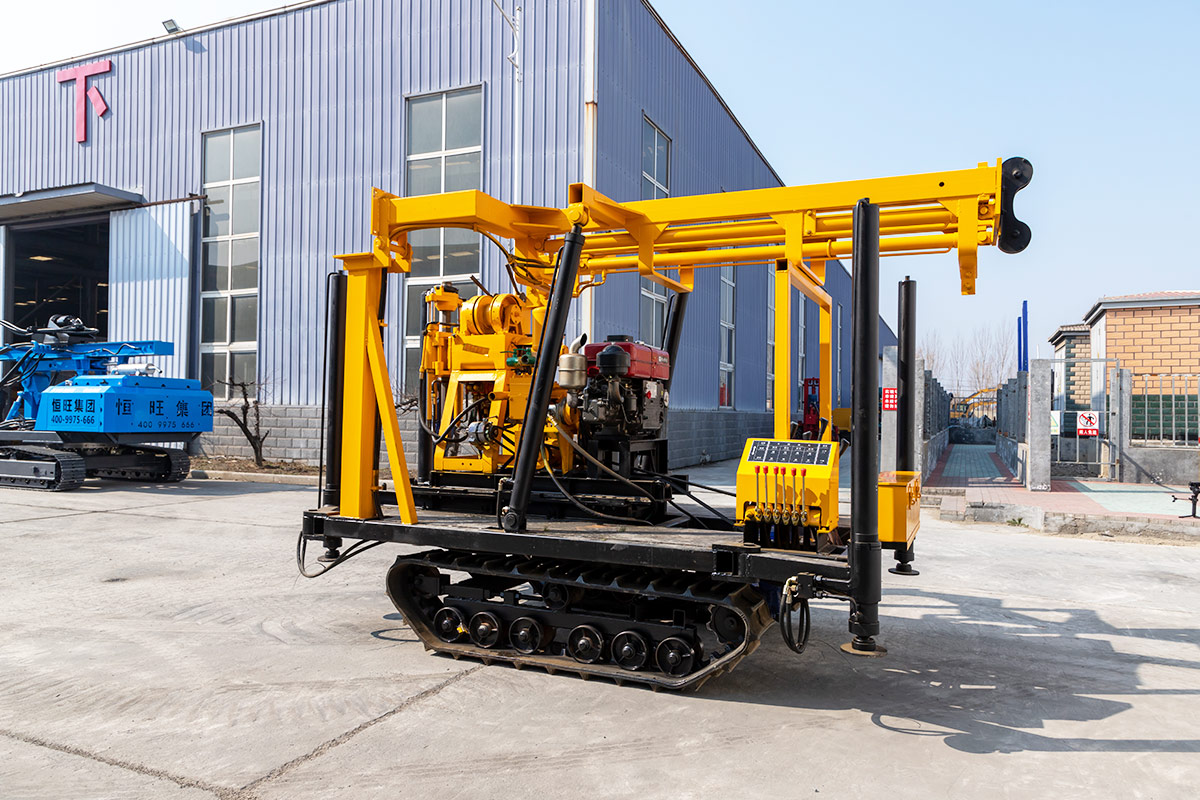

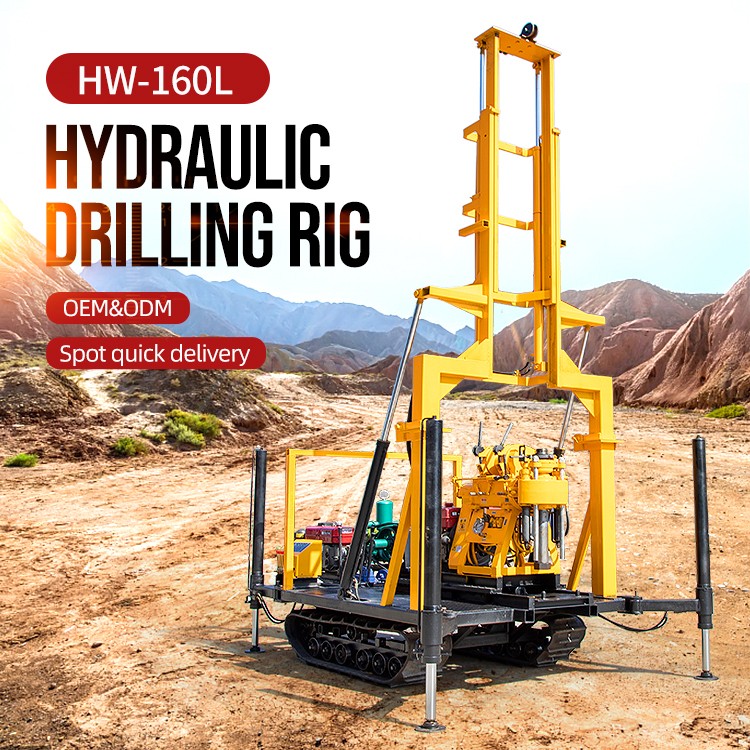

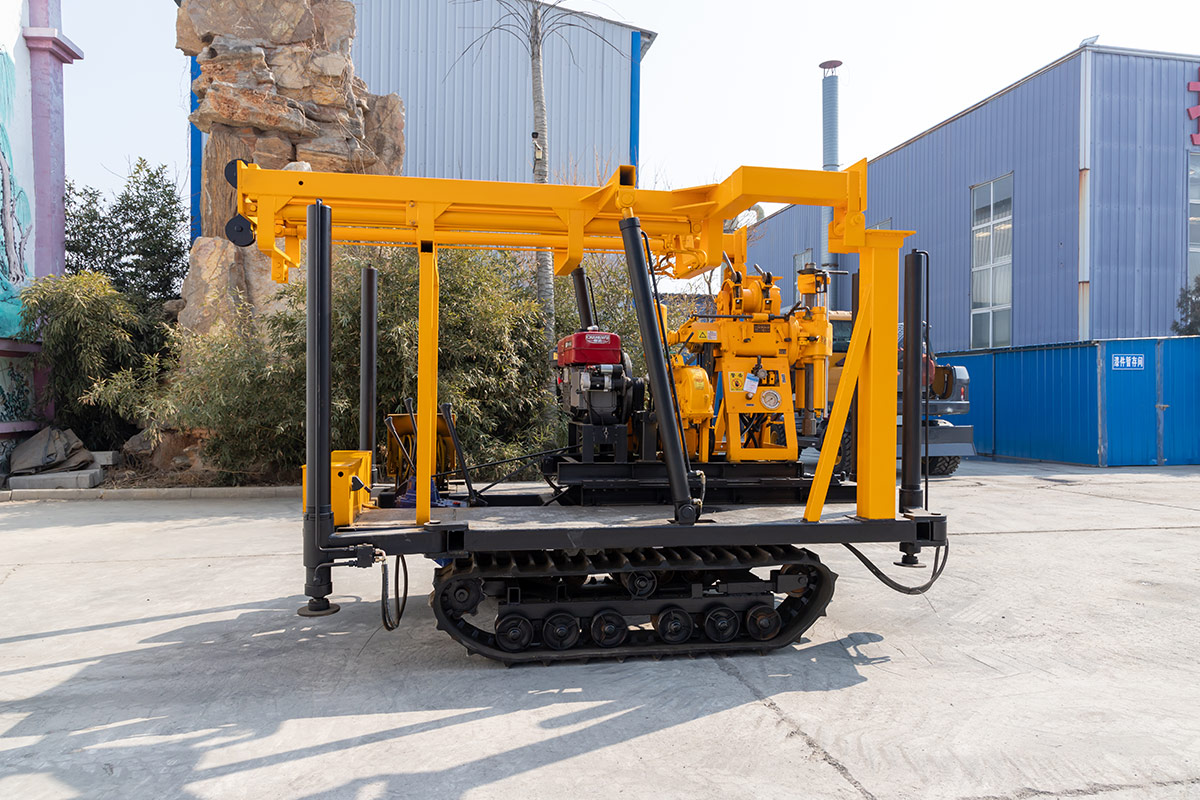

Hengwang hydraulic drilling rig is a professional water well drilling equipment designed for various applications such as industrial drilling, low temperature drilling, and agricultural drilling.
This compact and powerful rig is designed to have a small footprint, enabling users to drill in areas with challenging terrain and limited space.
Main features:

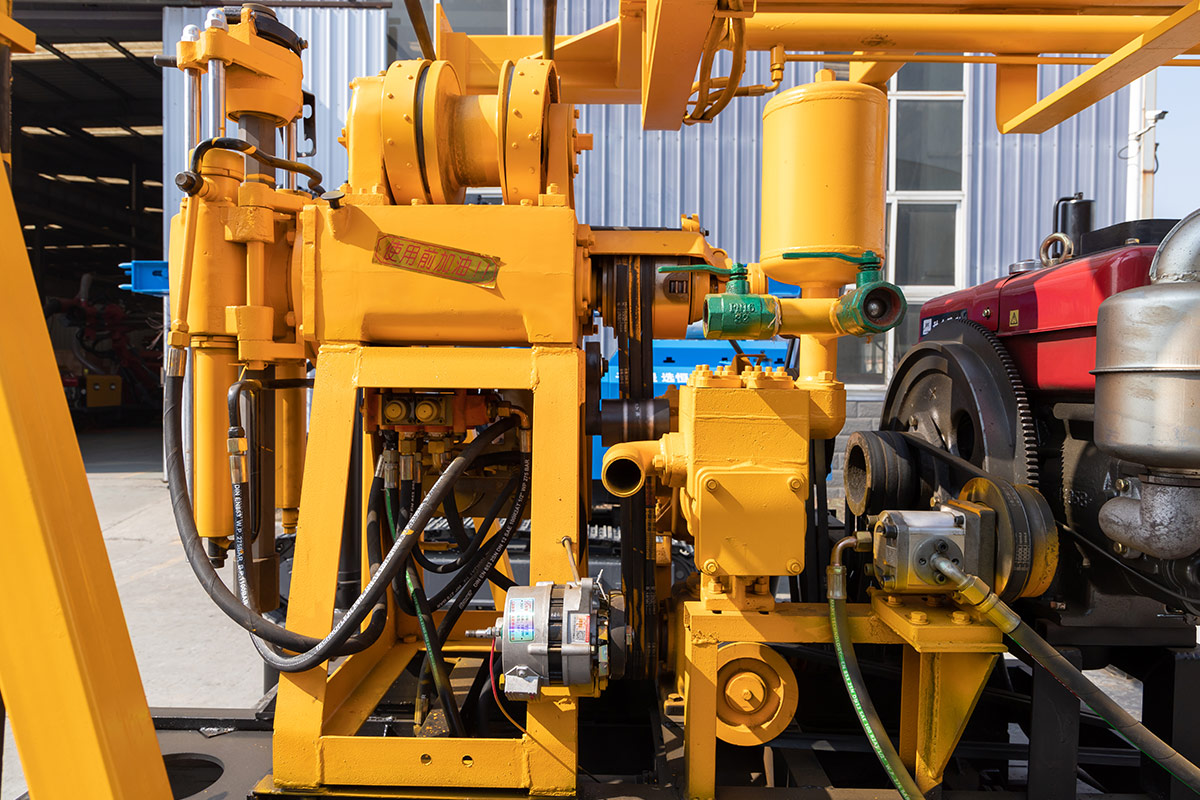

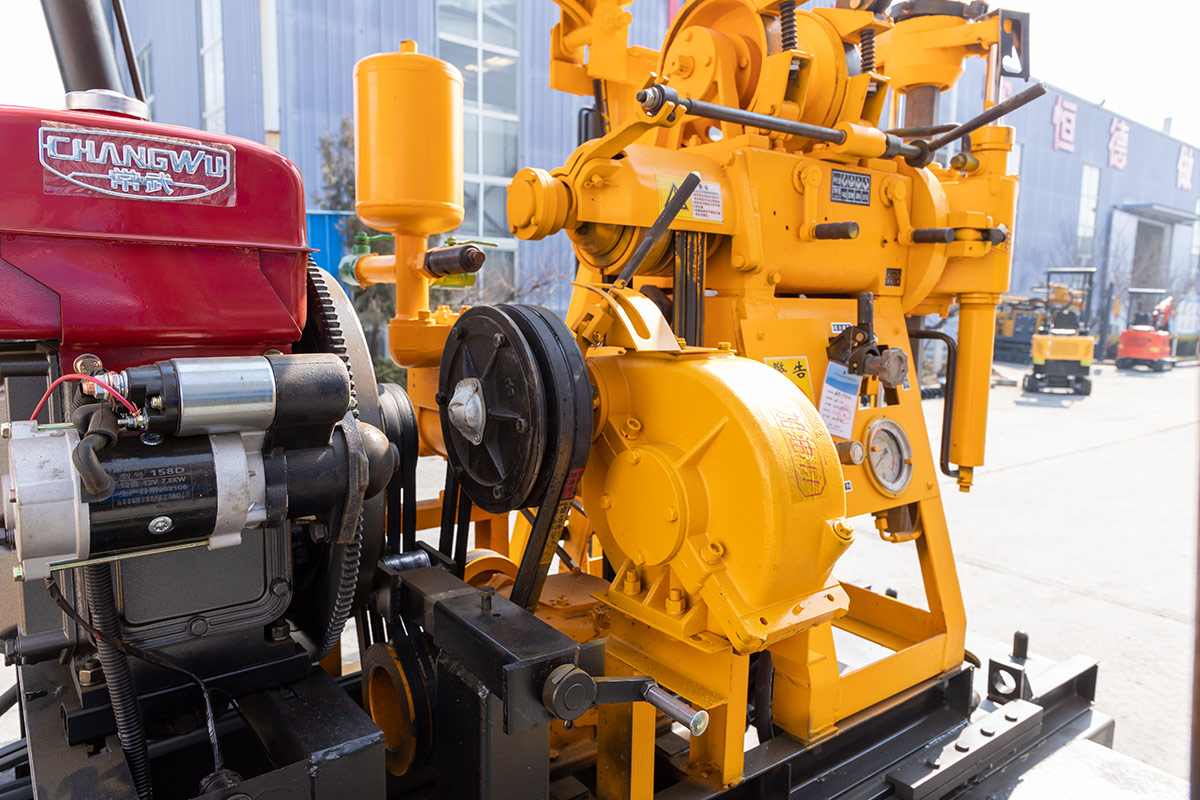

1. Equipped with a gearbox and clutch for smooth operation.
2. Long drilling distance per single operation, resulting in a 20% increase in drilling efficiency.
3. Includes a downhole pressure indicator, allowing users to monitor drilling conditions at all times.
4. Compact size, lightweight, easy to transport, and low maintenance cost.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
