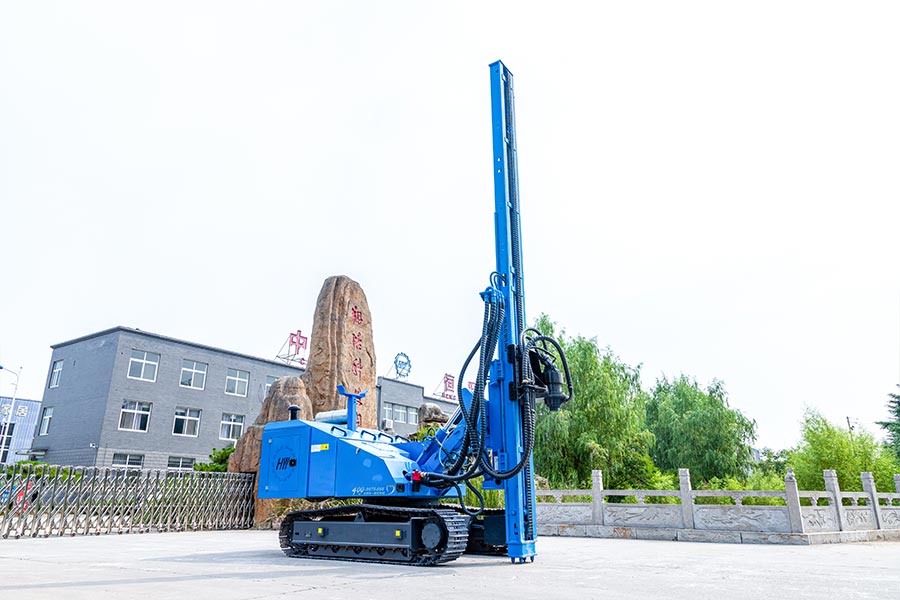

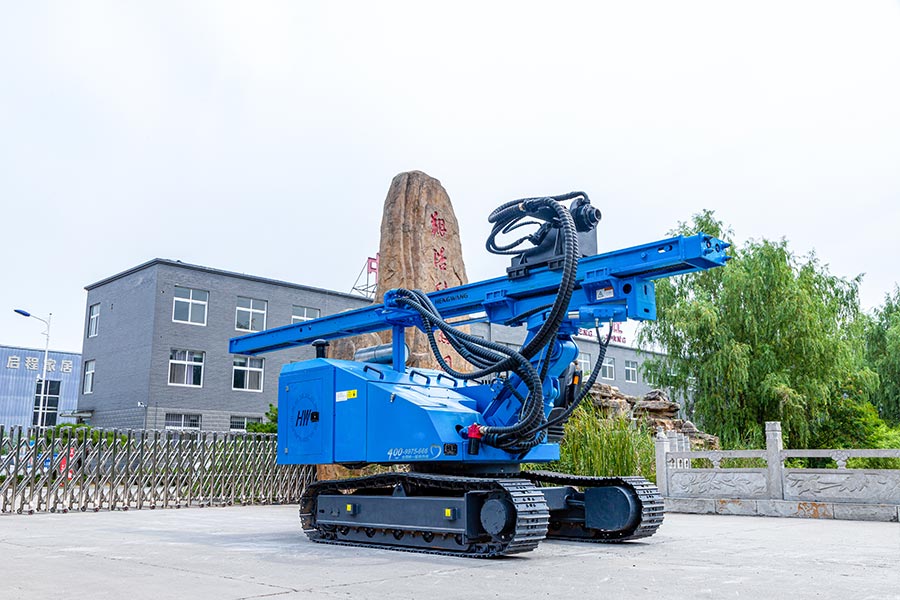

HWL500R Solar Pile Driver

  • Factory direct
  • One-year warranty
Pile Length: 5m
Rotation angle : 360°
Machine Weight: 7.7T
Product Detail

Crazy Engineering Day promotion, submit the form to get instant order discounts and coupons



Product numberHWL500R
Hydraulic hammer model75/85/100 optionalmm
Hydraulic hammer flow50-110L/min
Impact frequency350-800bmp
Drill rod diameter75/85/100mm
pile height5m
Pile height sliding guide frame tilt angle(Left)5(Right)5°
Rack rotation angle360°
Hydraulic system pressure22mpa
Gear pump displacement40+40+25ml/r
Driving speed3km/h
Vehicle weight7700kg
Engine power85kw
Engine rated speed2600r/min
Track shoe width350mm
dimensions

L*W*H 2375*1980*6760mm(working status)

L*W*H 6760*1980*2375mm(Shipping status(The transportation height is the height with the hydraulic hammer head/hydraulic power head removed)


Thank you for your interest in the HWL500R photovoltaic piling machine by Hengwang Group. This high-performance piling equipment is designed for various sites, including photovoltaic power stations as well as piling projects in farms, pastures, orchards, and more.


The HWL500R offers several main features:

1. Efficient Power Engine: The equipment is equipped with a reasonable power engine that ensures stable and high performance while optimizing fuel consumption.

2. High-Quality Hydraulic Components: The HWL500R utilizes high-quality hydraulic components, combined with a strict assembly process, to ensure the hydraulic system operates with high efficiency and reliability.

3. International High-Standard Raw Materials: The machine is constructed using international high-standard raw materials, which contribute to the stability and durability of the car body.

4. Industrial Aesthetic Design: The HWL500R features a design that combines functionality with an industrial aesthetic, providing both practicality and visual appeal.


To learn more, please contact us.
