DTH Drill Depth: 1-100m
Screw Drill Depth: 20m
Slope Working Angle : 45°
Screw Drill Depth: 20m
Slope Working Angle : 45°
Parameter
| Product number | HWL300R | |
| Hydraulic hammer model | 75/85/100 optional | mm |
| Hydraulic hammer flow | 50-110 | L/min |
| Impact frequency | 350-800 | bmp |
| Drill rod diameter | 75/85/100 | mm |
| pile height | 3 | m |
| Pile height sliding guide frame tilt angle | （Left）5（Right）5 | ° |
| Rack rotation angle | 360 | ° |
| Hydraulic system pressure | 22 | mpa |
| Gear pump displacement | 40+40+25 | ml/r |
| Driving speed | 3 | km/h |
| Vehicle weight | 7500 | kg |
| Engine power | 85 | kw |
| Engine rated speed | 2600 | r/min |
| Track shoe width | 350 | mm |
| dimensions | L*W*H 2375*1980*4760mm（working status） L*W*H 4760*1980*2375mm（Shipping status（The transportation height is the height with the hydraulic hammer head/hydraulic power head removed) | |
| Optional | |||

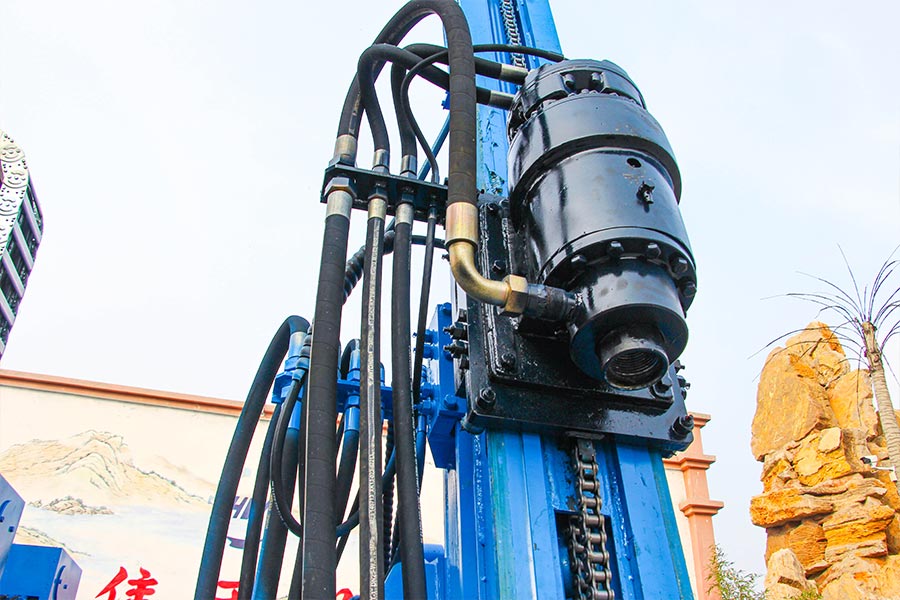

| Hydraulic drilling power head | model | HWQK350 | |
| Torque | 8000-12000（Optional） | N•m | |
| single maximum depth | 3 | m | |
| Maximum DTH diameter | 130-400 | mm | |
| Maximum spiral drilling diameter | 500 | mm | |
Main features:
1. Efficient and fuel-saving power engine: The HWL390H Photovoltaic piling machine is equipped with a power engine that is carefully designed for optimal fuel efficiency. It ensures stable and high-performance operation while minimizing fuel consumption.
2. High-performance hydraulic system: The piling machine utilizes high-quality hydraulic components and undergoes a strict assembly process. This ensures the efficiency and reliability of the hydraulic system, enabling smooth and efficient operation.
3. Stable and durable construction: The machine is constructed using international high-standard raw materials, which ensures the stability and durability of the overall structure. It can withstand the rigors of various construction environments and provide long-lasting performance.

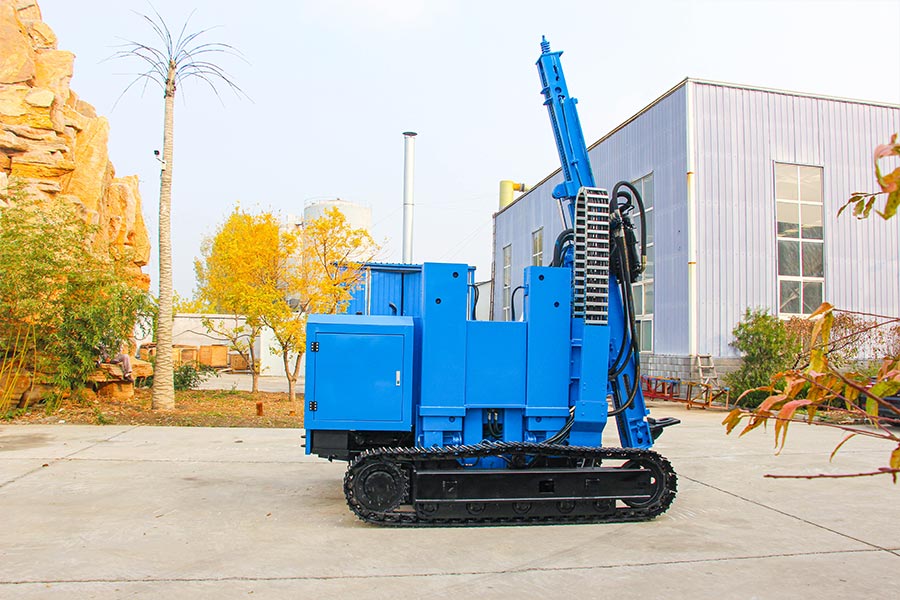

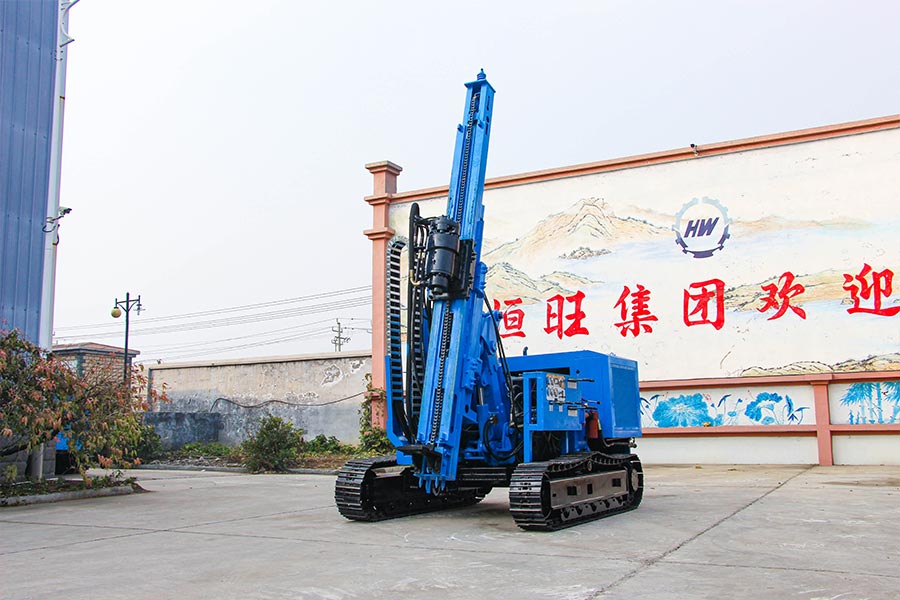

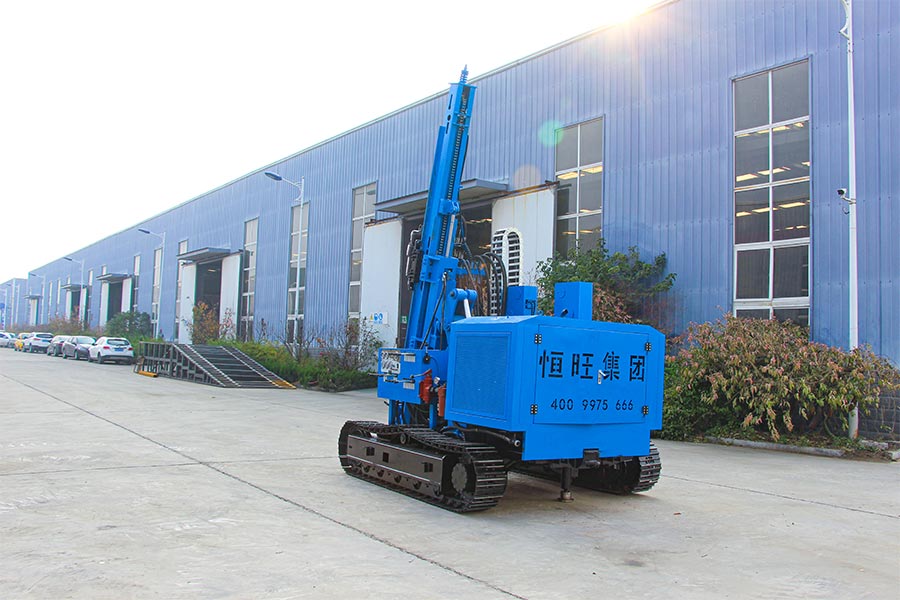

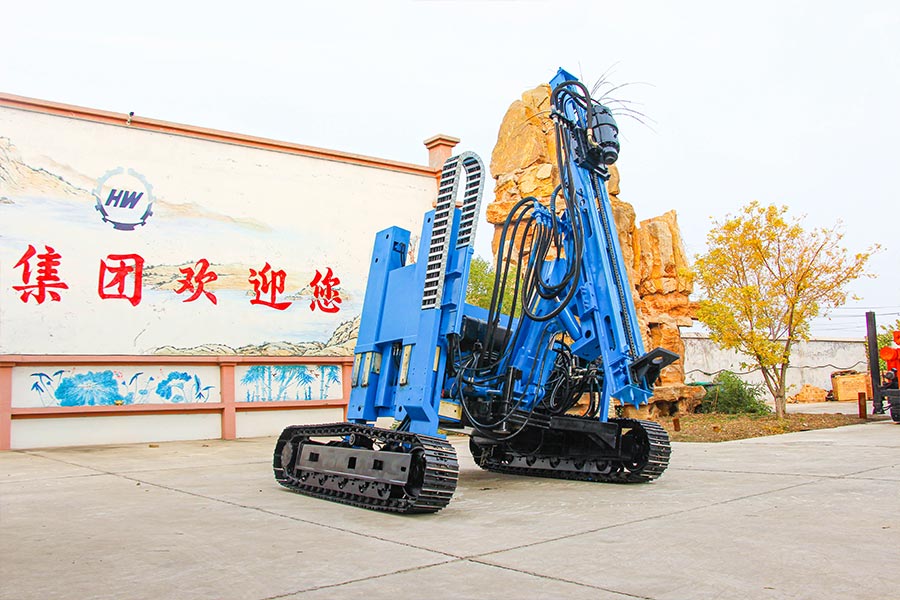

The HWL390H Photovoltaic piling machine is a high-performance piling equipment developed by Hengwang Group specifically for various sites. It is designed not only for piling the foundations of photovoltaic power stations but also for applications in farms, pastures, forest farms, orchards, and other construction scenarios.
Quote now for the best price.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
