- Factory direct
- One-year warranty
Engine: Electric/Diesel
Configurable Guns No.: 1-10

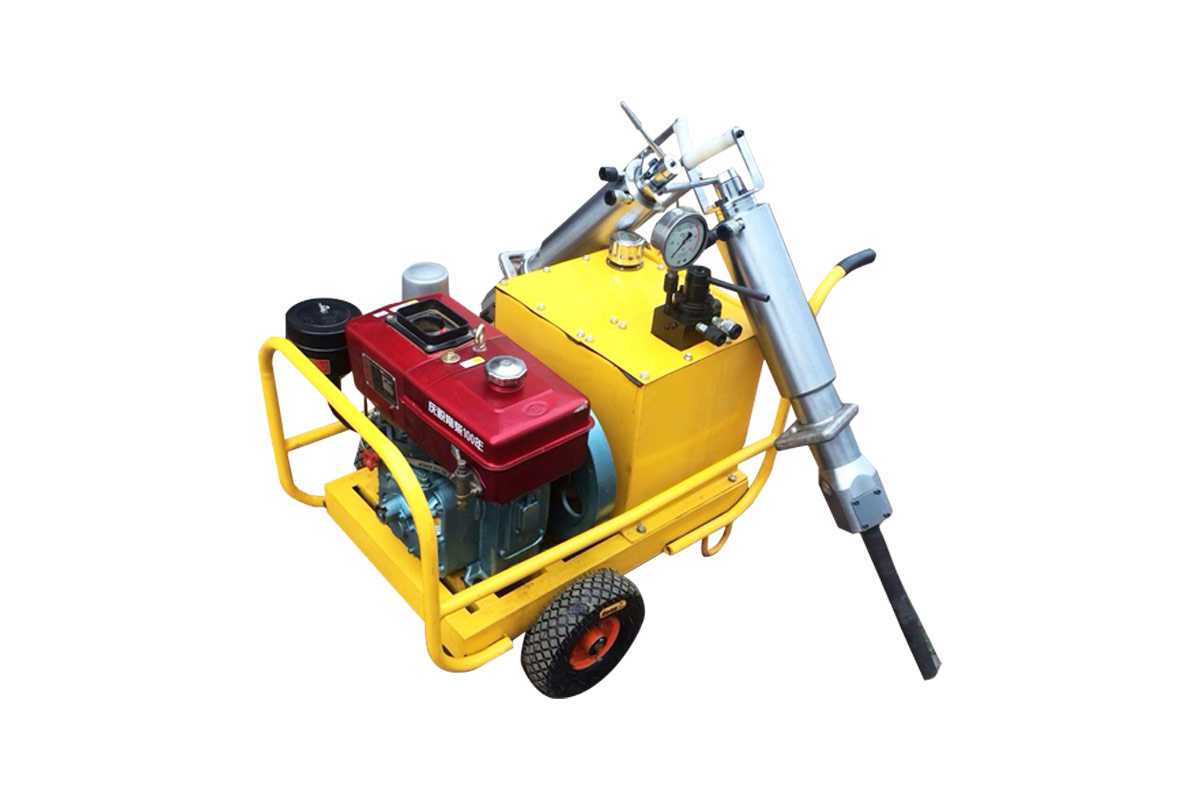

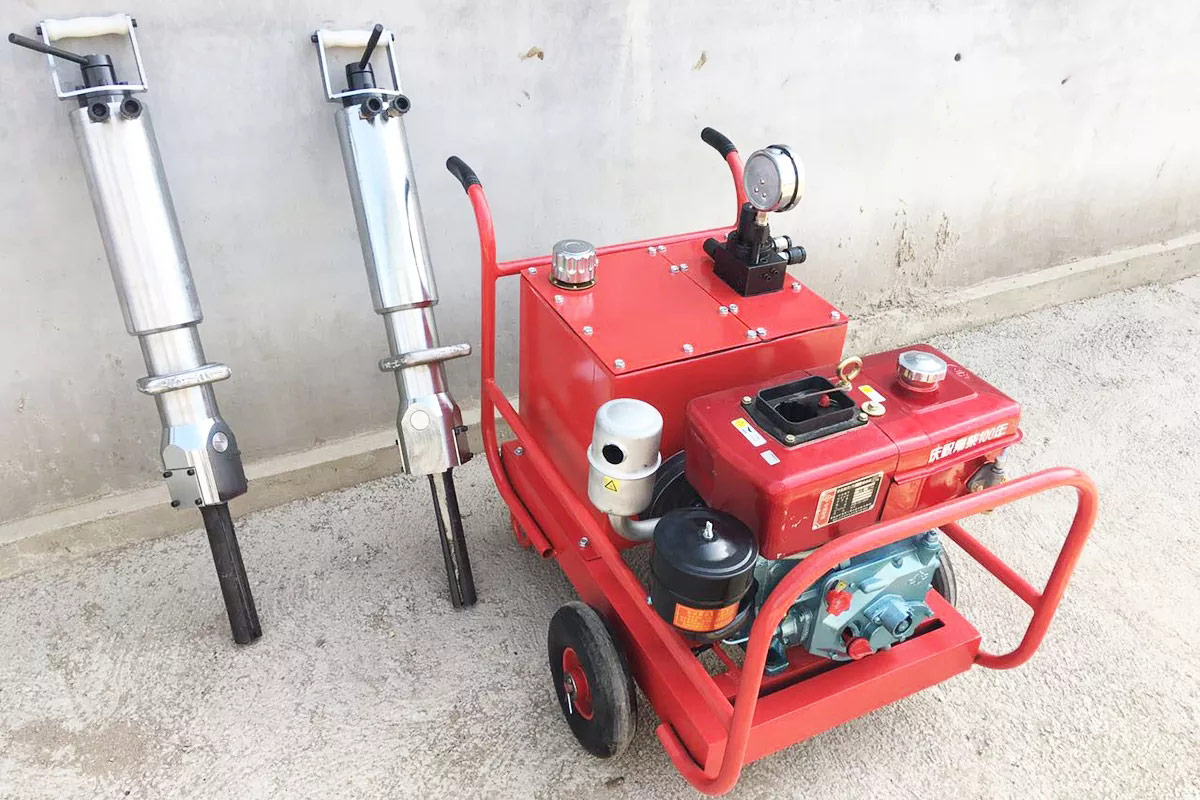

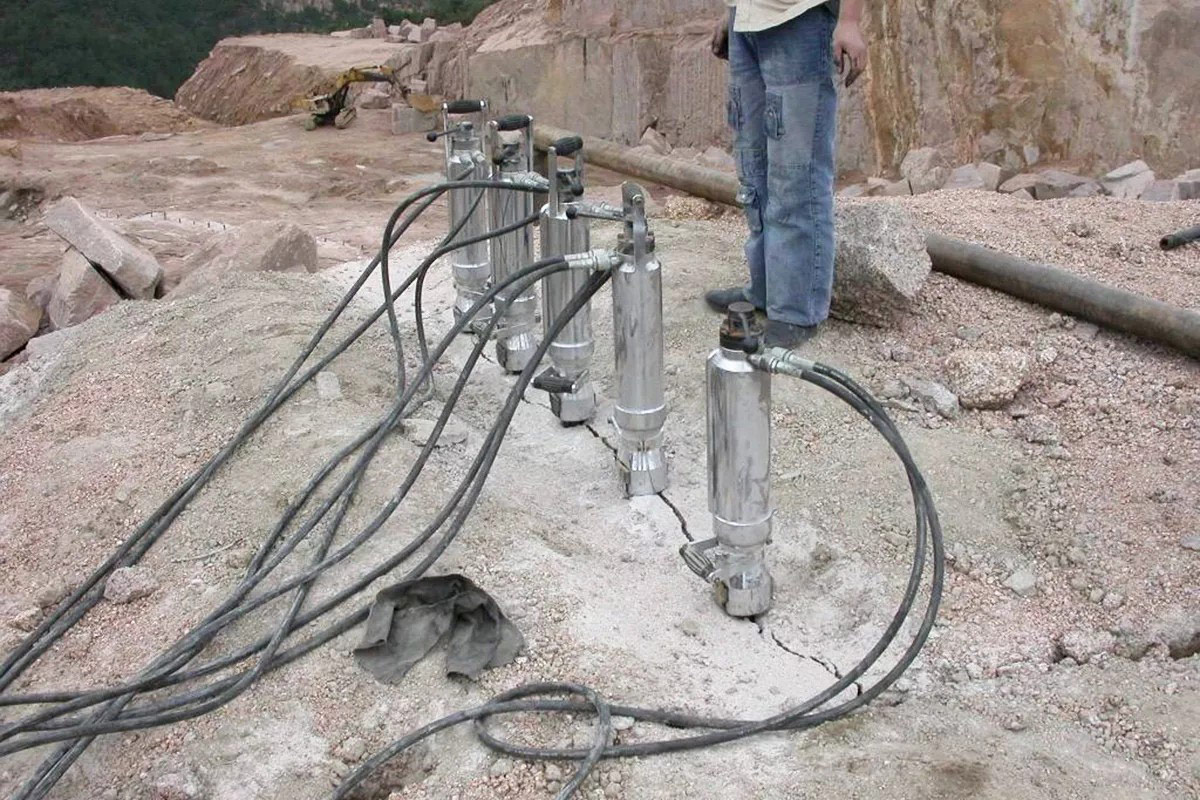

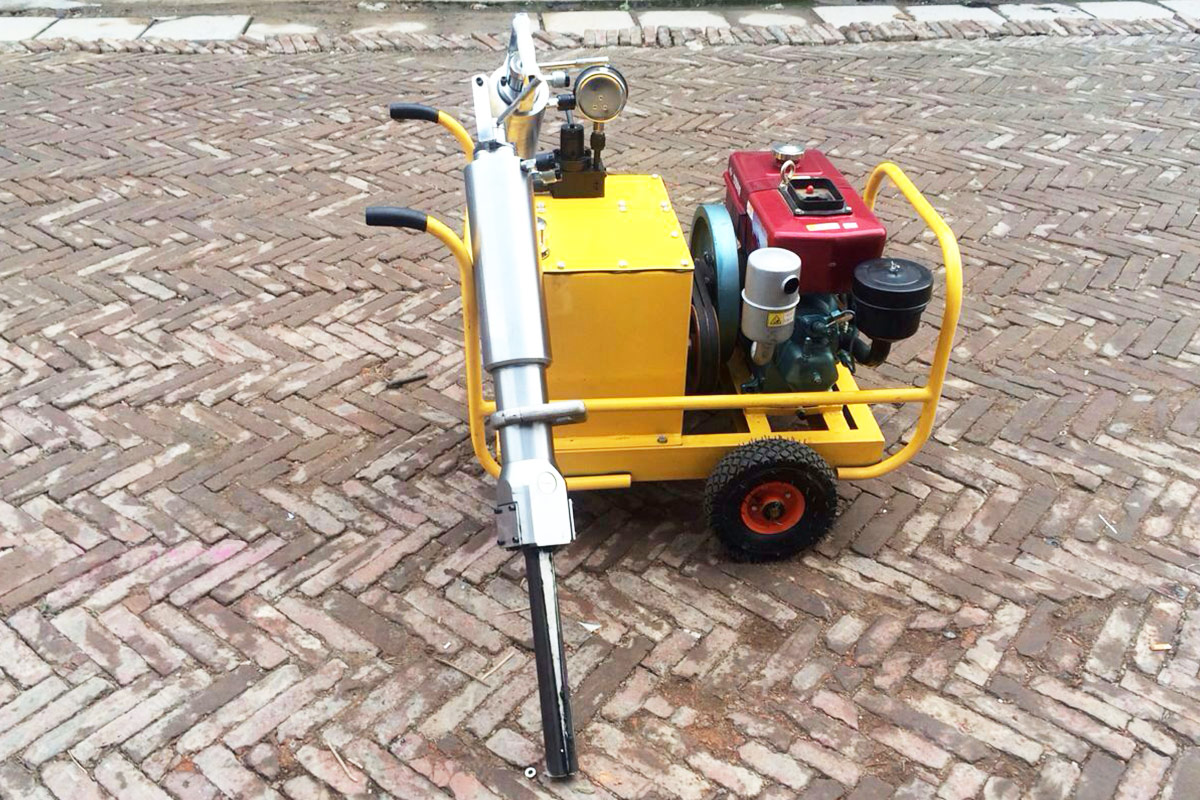

The hydraulic rock & concrete splitter is the most suitable tool for demolition. The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllable split rock or concrete. Especially suit for cabin area where large machine can not work. Such as hydraulic breaker and place where is strictly limited of noise, dust,flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden. Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
Hydraulic Rock Splitter Features:
1) Powerful (Max:1000T), it can split the stone or concrete easily.
2) High Efficiency, it can split the stone in 5-10 seconds.;
3) Long-life, the wedges stands wear and tear;
4) Easy to operate and maintain.
Splitting cylinders parameters | ||||||
Model | HW80-250 | HW80-350 | HW80-450 | HW90-250 | HW90-350 | HW90-450 |
Piston diameter | 80mm | 80mm | 80mm | 90mm | 90mm | 90mm |
Drilling diameter | Φ42mm | Φ45mm | Φ50mm | Φ42mm | Φ45mm | Φ50mm |
Drilling depth | ≧500mm | ≧550mm | ≧600mm | ≧500mm | ≧550mm | ≧600mm |
Wedge block length | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm |
Crack width | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm |
Splitting time | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s |
Theory of separatist force | 600T | 600T | 600T | 800T | 800T | 800T |
The actul split force | 480T | 480T | 480T | 480T | 480T | 480T |
weight | 28Kg | 29Kg | 30Kg | 31Kg | 32Kg | 33Kg |

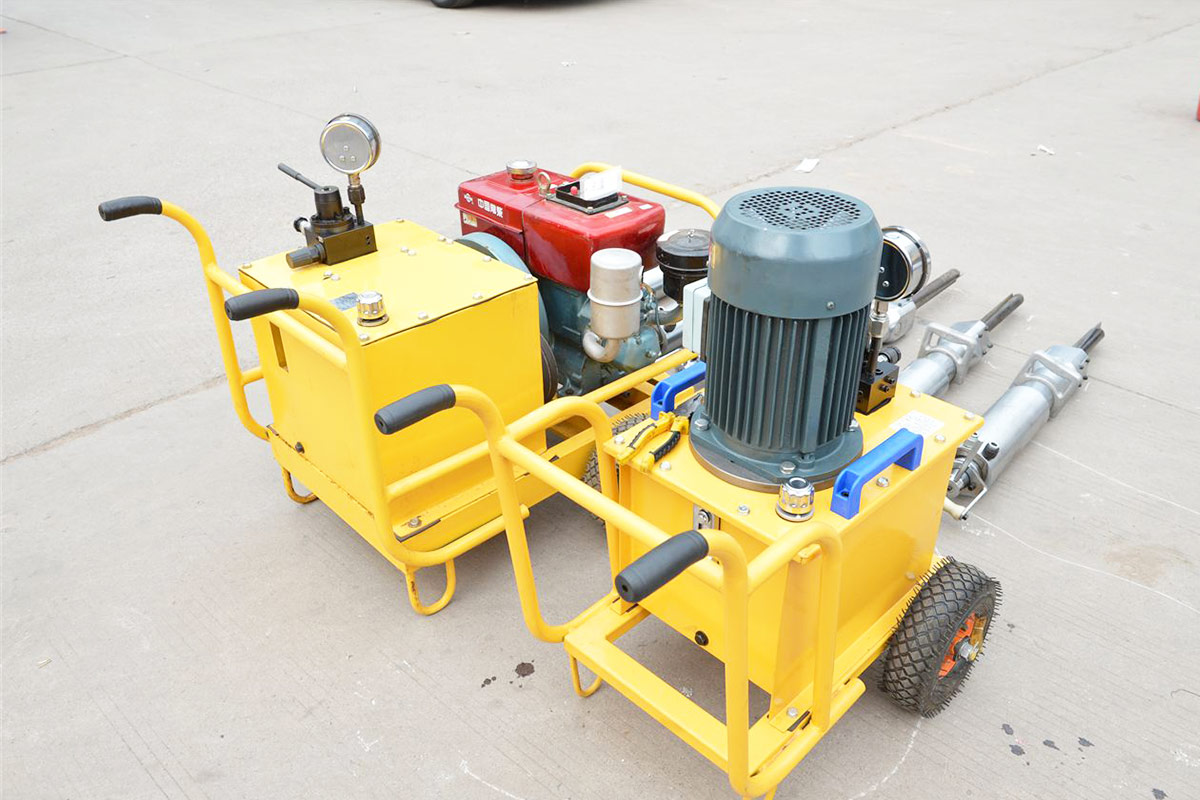

Pump pack parameters | ||||||
Engine | Electric engine | Diesel engine | ||||
Weight | 60kg | 110kg | 150kg | 100kg | 130kg | 150kg |
Capacity of tank | 40L | 60L | 88L | 45L | 65L | 90L |
Motor power | 3.0KW | 4.0KW | 5.5KW | 3Hp | 5Hp | 7.5Hp |
Working pressure (Mpa) | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 | 55-60 |
Working flow (L/min) | 2—13 | 2—13 | 2—13 | 2—13 | 2—13 | 2—13 |
Configurable guns number | 1—5 | 2—7 | 2—10 | 1—3 | 3—8 | 3—10 |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the best price.
