Drilling depth: 260m
Drilling diameter: 130-254mm
Engine Power: 40Hp
Drilling diameter: 130-254mm
Engine Power: 40Hp
Main features:
1. The pneumatic drilling rig works in conjunction with an air compressor, resulting in high working efficiency.
2. Enhanced stability through the addition of counterweights.

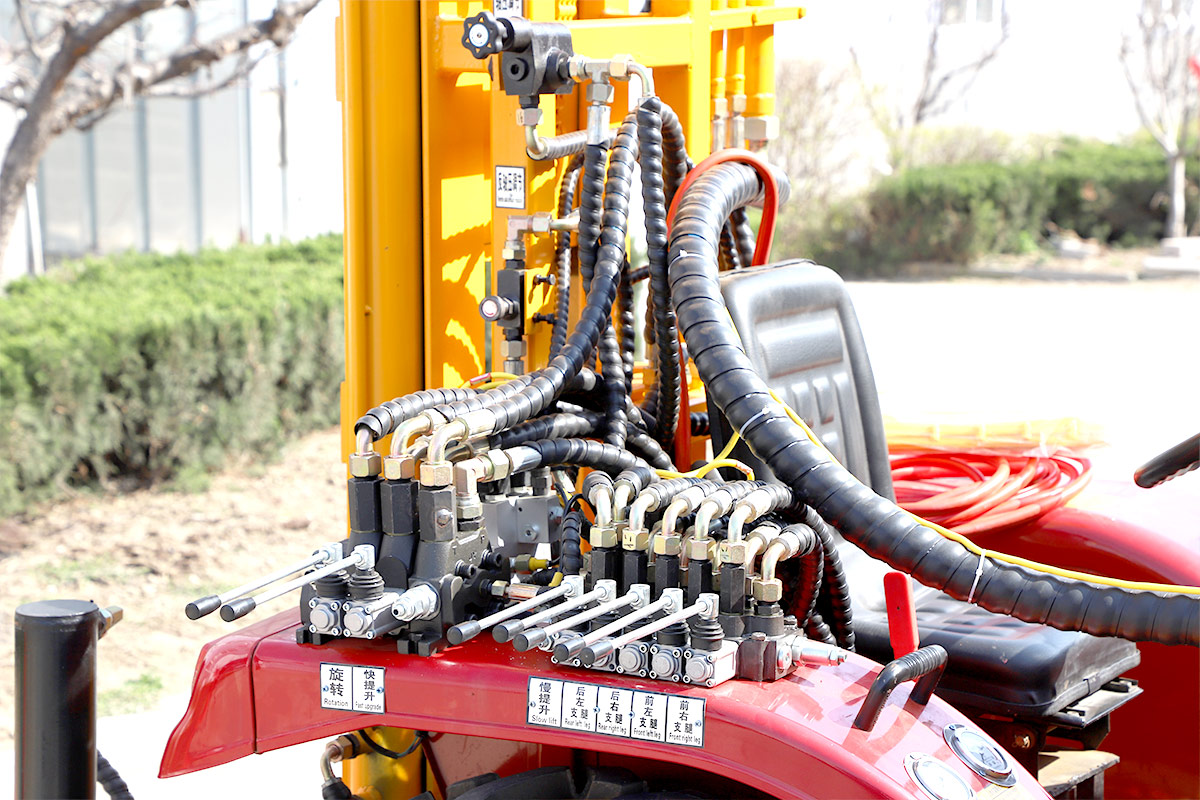

3. Perfect cooperation between the engine and hydraulic system, leading to improved fuel efficiency.
Parameter:
| model | HQZ-260 | |
| Chassis | Tractor | / |
| Drilling diameter | 130-254 | mm |
| Drilling depth | 260 | m |
| One-time advancement length | 1.5 | m |
| Engine power | 40 | HP |
| working pressure | 1.7-2.5 | mpa |
| Air consumption | 17-31 | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.5 | m |
| Lifting power | 15 | T |
| Swing speed | 40-65 | rpm |
| Rotating torque | 3500-3800 | N.m |
| Dimensions | 3500*1700*2700 | mm |
| weight | 4 | T |
Due to the ongoing advancements and developments in technology, the technical parameters and configurations are subject to change at the time of actual delivery.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
