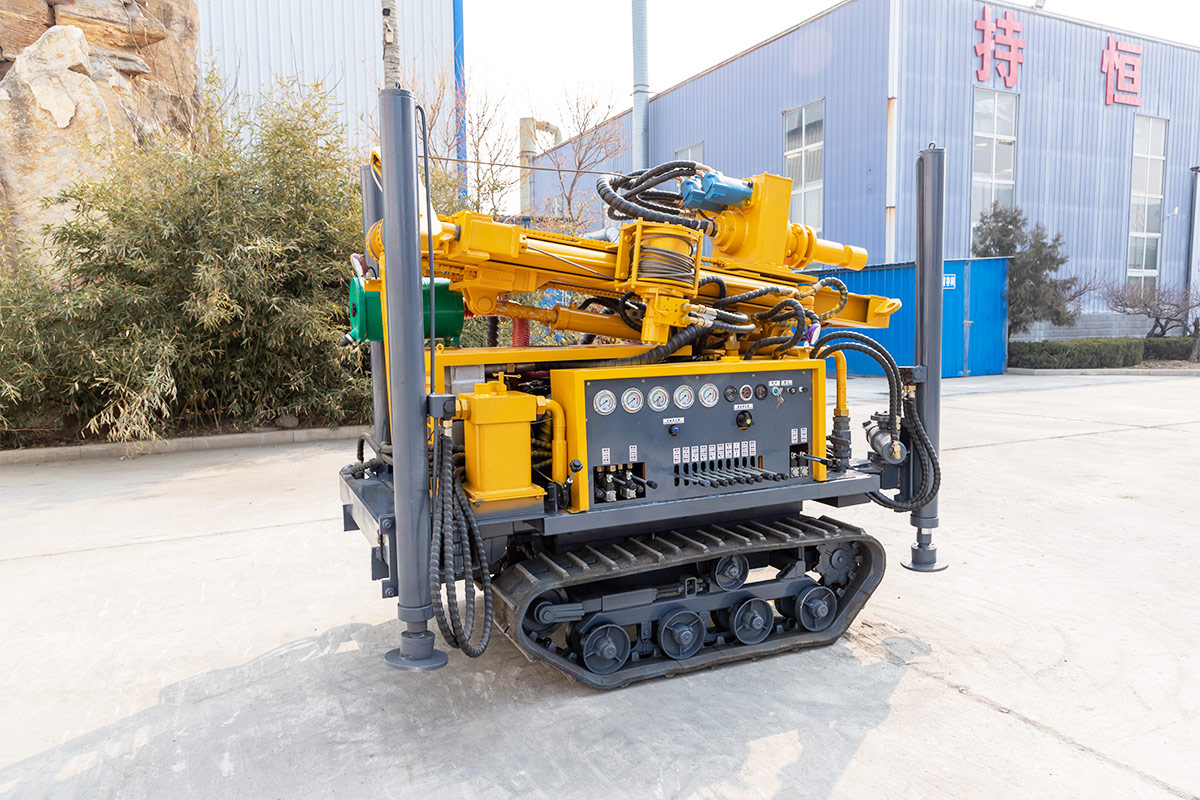

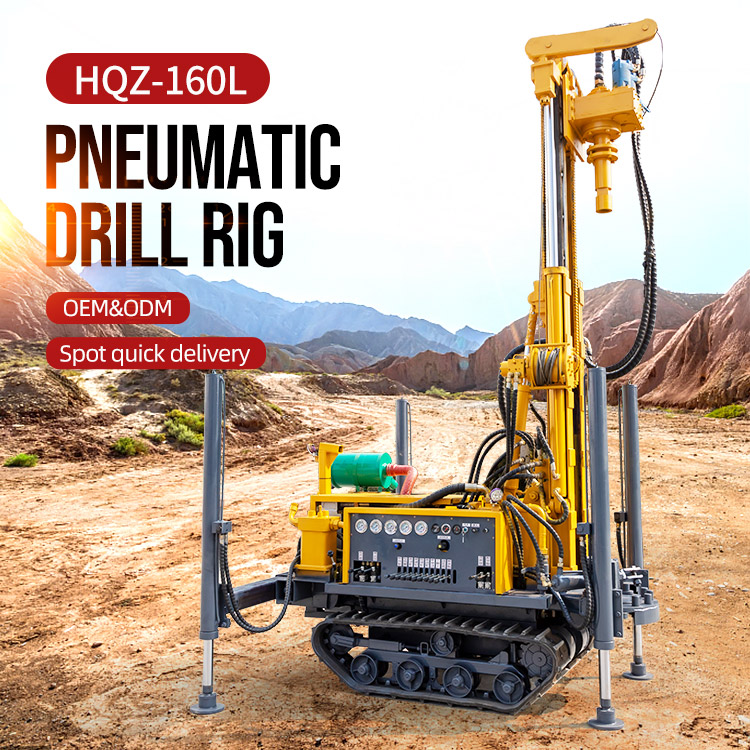

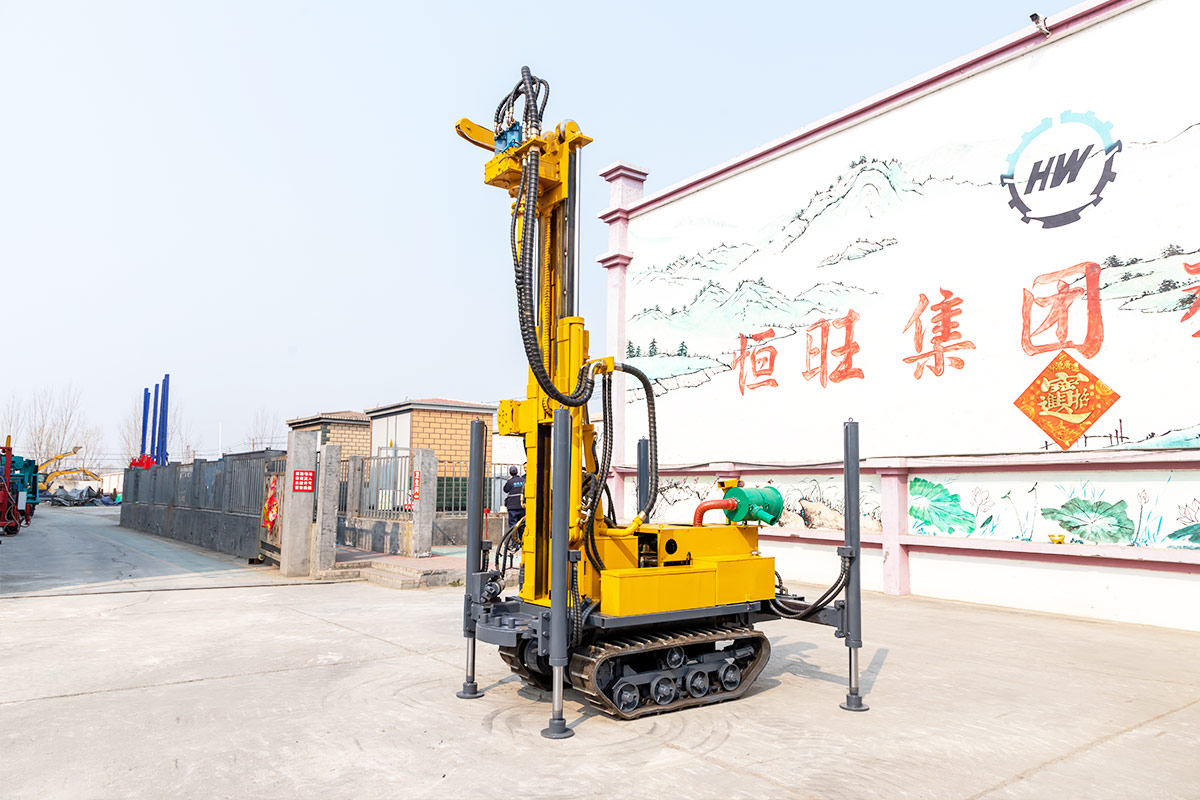

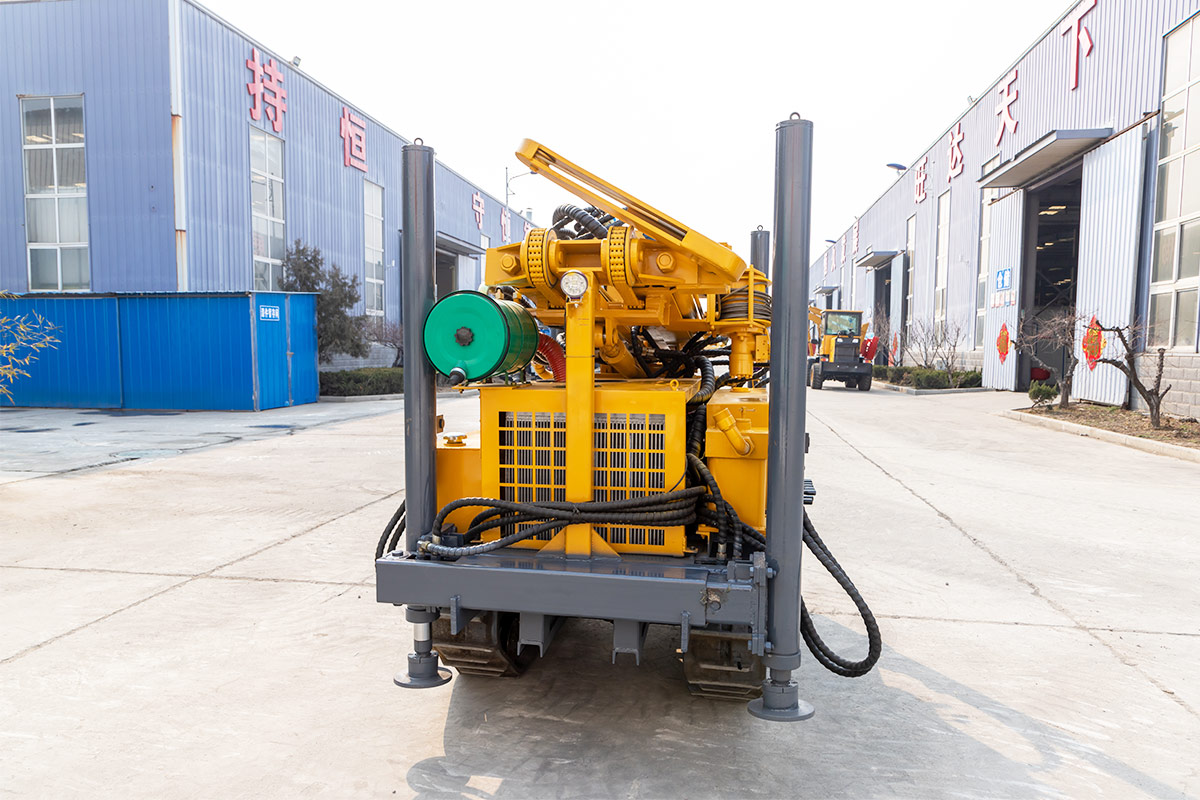

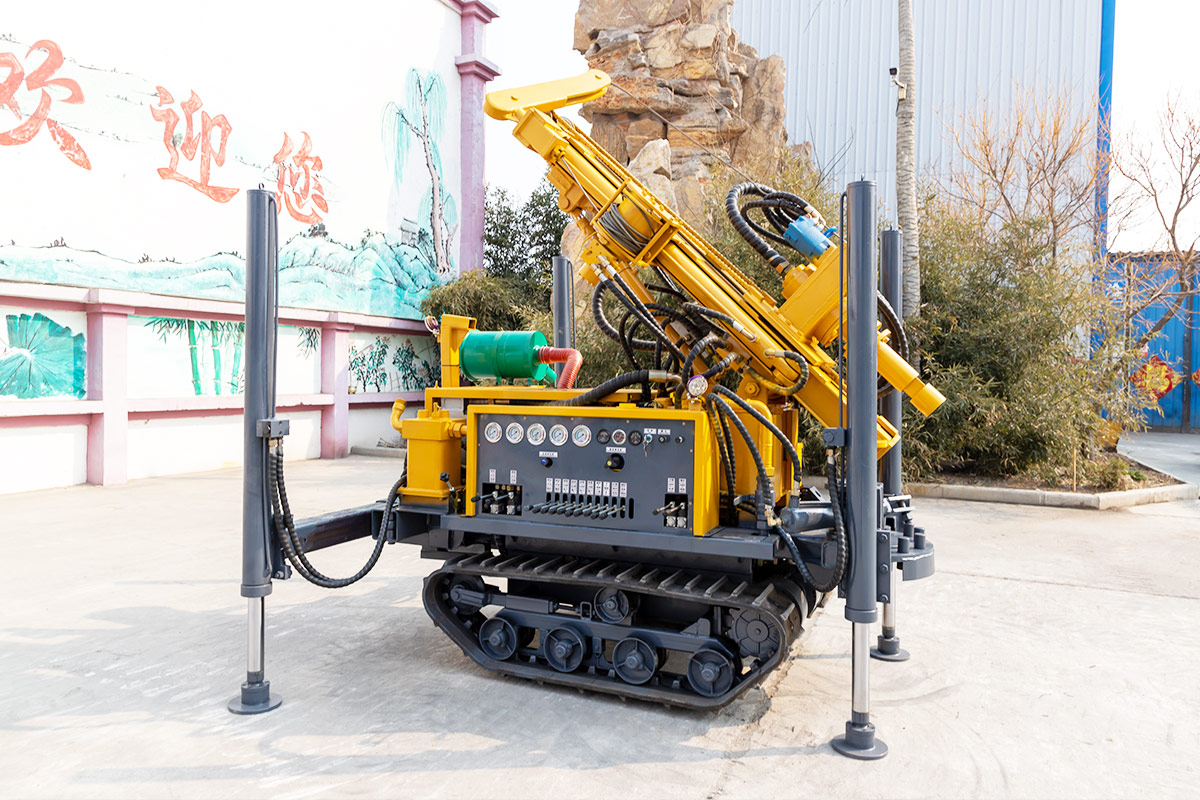

HQZ-160L Pneumatic Drill Rig

  • Factory direct
  • One-year warranty
Drilling depth: 160m
Drilling diameter: 138-203mm
Engine Power: 73Kw
Product Detail

Crazy Engineering Day promotion, submit the form to get instant order discounts and coupons



modelHQZ-160L
tower2m
ChassisRubber track/
Drilling diameter138-203mm
Drilling depth160m
One-time advancement length2m
Walking speed2.5km/h
Maximum gradeability30
/
Engine brandYuchai/
Engine power73kw
working pressure/mpa
Air consumption/m³/min
Drill pipe diameter76/89mm
Drill pipe length1.0/1.5/2.0m
Lifting power12T
Swing speed50-110rpm
Rotating torque7800N.m
Dimensions2300*1200*1900mm
weight2.6T

Due to the continuous updates and advancements in technology, the technical parameters and configurations of products are subject to change at the time of actual delivery. We strive to provide the most up-to-date and accurate information, but it is always recommended to confirm the technical specifications and configurations at the time of placing your order.


The HQZ pneumatic rig for drilling is a lightweight, efficient, and multifunctional drilling equipment specifically designed for industrial, civil drilling, and geothermal drilling projects. It offers the following main features:


1. The pneumatic drilling rig works in collaboration with an air compressor, resulting in high working efficiency for faster drilling operations.


2. Enhanced work stability is achieved through the increased counterweight, ensuring reliable and steady performance during drilling activities.


3. The engine and hydraulic system are perfectly integrated, leading to optimized fuel efficiency and reduced fuel consumption, making it a cost-effective choice for drilling projects.


Please note that due to the continuous updates and progress in technology, the technical parameters and configurations of the rig may vary at the time of actual delivery.




Request a quote

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
