Drill Depth: 700m
Max.Drill Diameter: 500mm
Related Power: 154Kw
Max.Drill Diameter: 500mm
Related Power: 154Kw

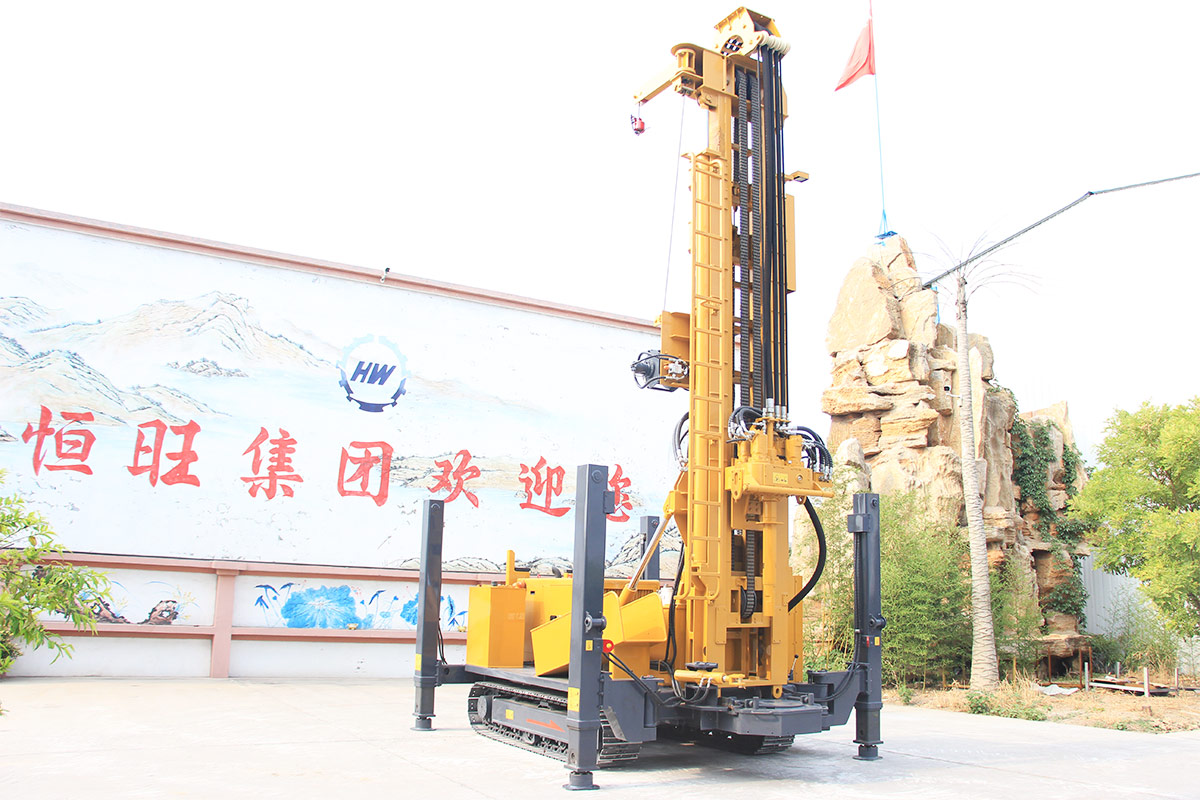

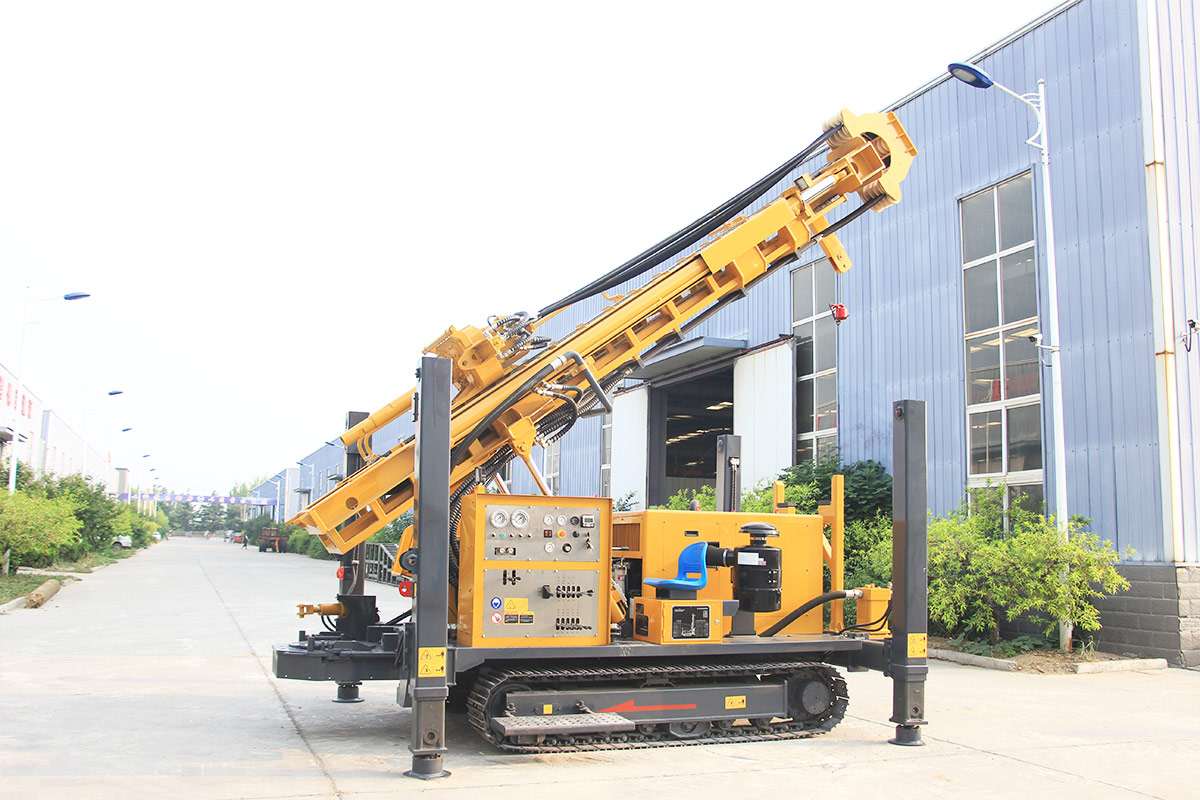

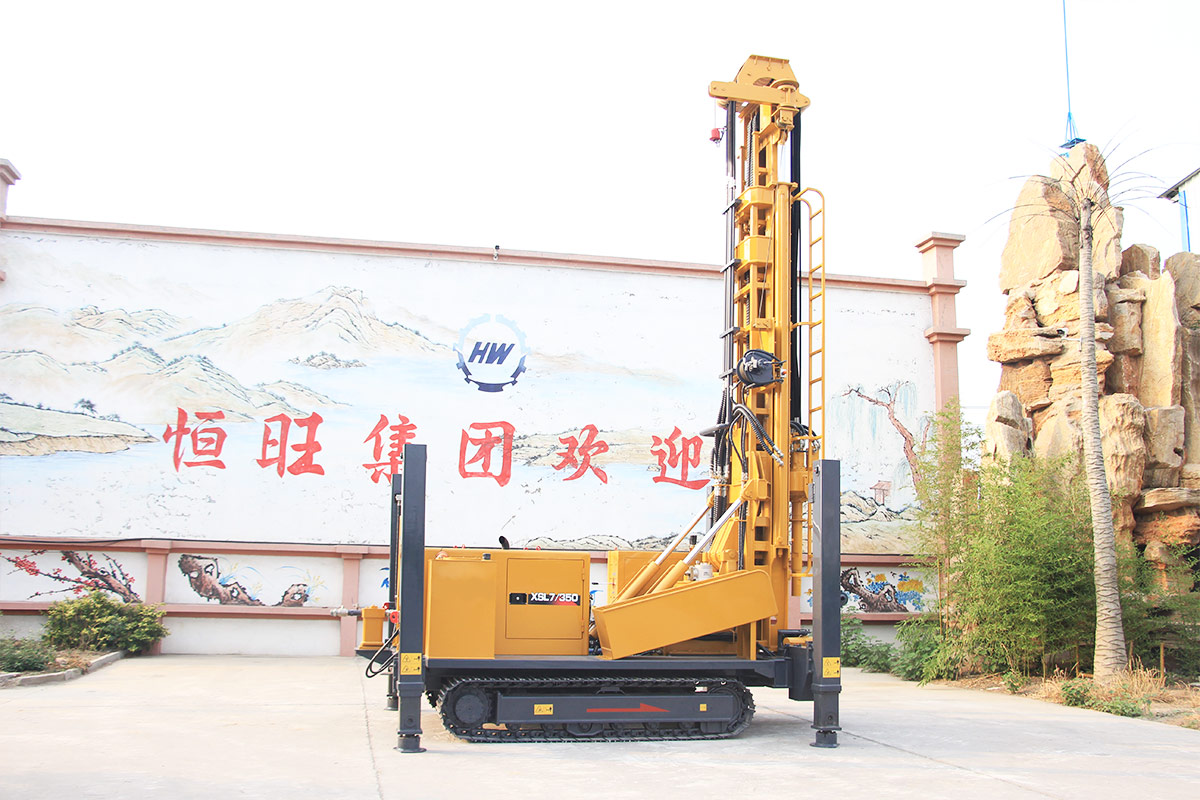

The HW7/350 pneumatic water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment designed for various drilling projects including industrial, civil, and geothermal drilling.
Main Features:
1. The pneumatic drilling rig works in conjunction with an air compressor, resulting in high working efficiency.
2. Enhanced stability through increased counterweight, ensuring strong work stability.

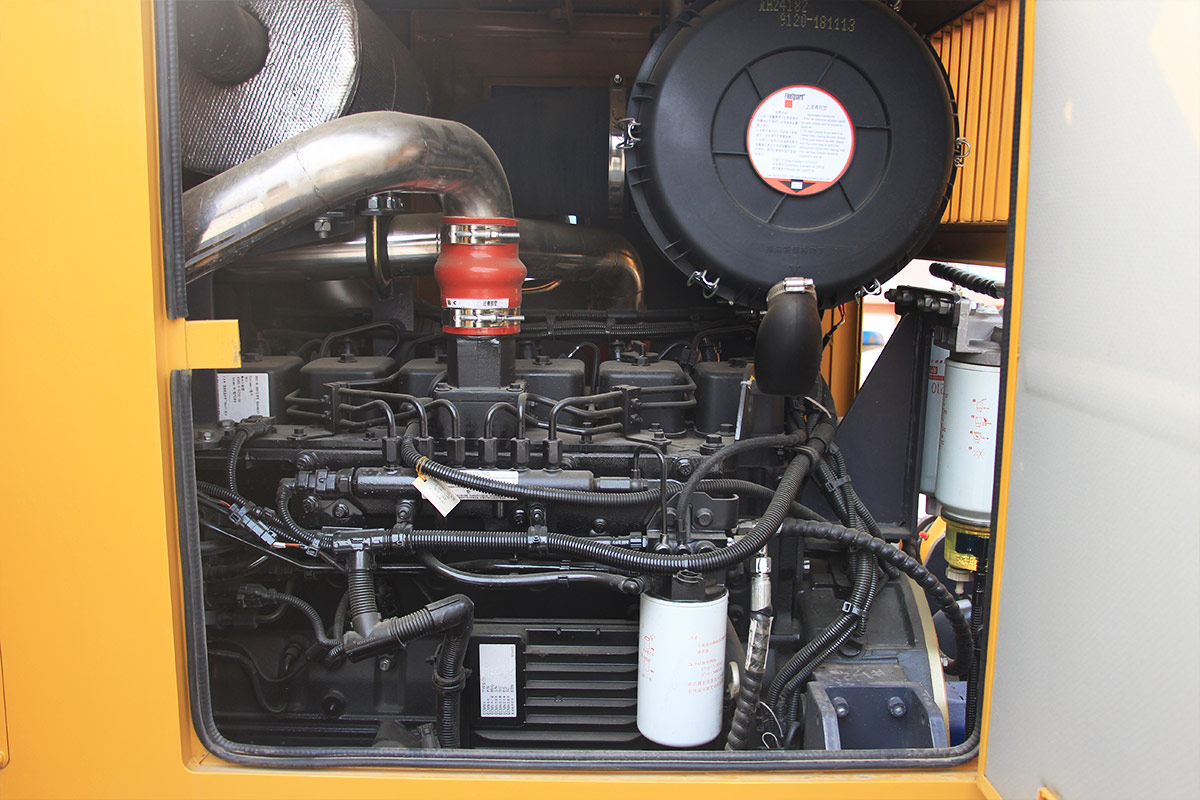

3. Perfect cooperation between the engine and hydraulic system, leading to reduced fuel consumption and improved fuel efficiency.
Parameter
| Model | HW7/350 | ||
| Drilling capacity | Drilling depth | m | 700 (dia.102) |
| Max. diameter of working floor | mm | dia.500 | |
| Feeding system | Max. lifting capacity | KN | 350 |
| Max.feeding capacity | KN | 150 | |
| Max. lifting speed | m/min | 32 | |
| Max. feeding speed | m/min | 60 | |
| Stroke | mm | 7000 | |
| Top drive | Max. torque | N.m | 12200/6100 |
| Max. speed | r/min | 180/90 | |
| I.D | mm | dia.55 | |
| Floating distance | mm | / | |
| Max.tilting angel | ° | / | |
Due to the continuous advancements and progress in technology, the technical parameters and configurations are subject to change at the time of actual delivery.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
