Drilling depth: 320m
Drilling diameter: 130-325mm
Engine Power: 85Kw
Drilling diameter: 130-325mm
Engine Power: 85Kw
| model | HQZ-320L | |
| tower | 3/6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-305 | mm |
| Drilling depth | 320 | m |
| One-time advancement length | 3.6/6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 85 | kw |
| working pressure | 1.7-3.3 | mpa |
| Air consumption | 17-35 | m³/min |
| Drill pipe diameter | 76/89/102 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 24 | T |
| Swing speed | 55-115 | rpm |
| Rotating torque | 8500-9000 | N.m |
| Dimensions | 5300*2200*2800 | mm |
| weight | 7/9 | T |
Due to the continuous updates and advancements in technology, the technical parameters and configurations of products are subject to change at the time of actual delivery. We strive to provide the most up-to-date and accurate information, but it is always recommended to confirm the technical specifications and configurations at the time of placing your order.

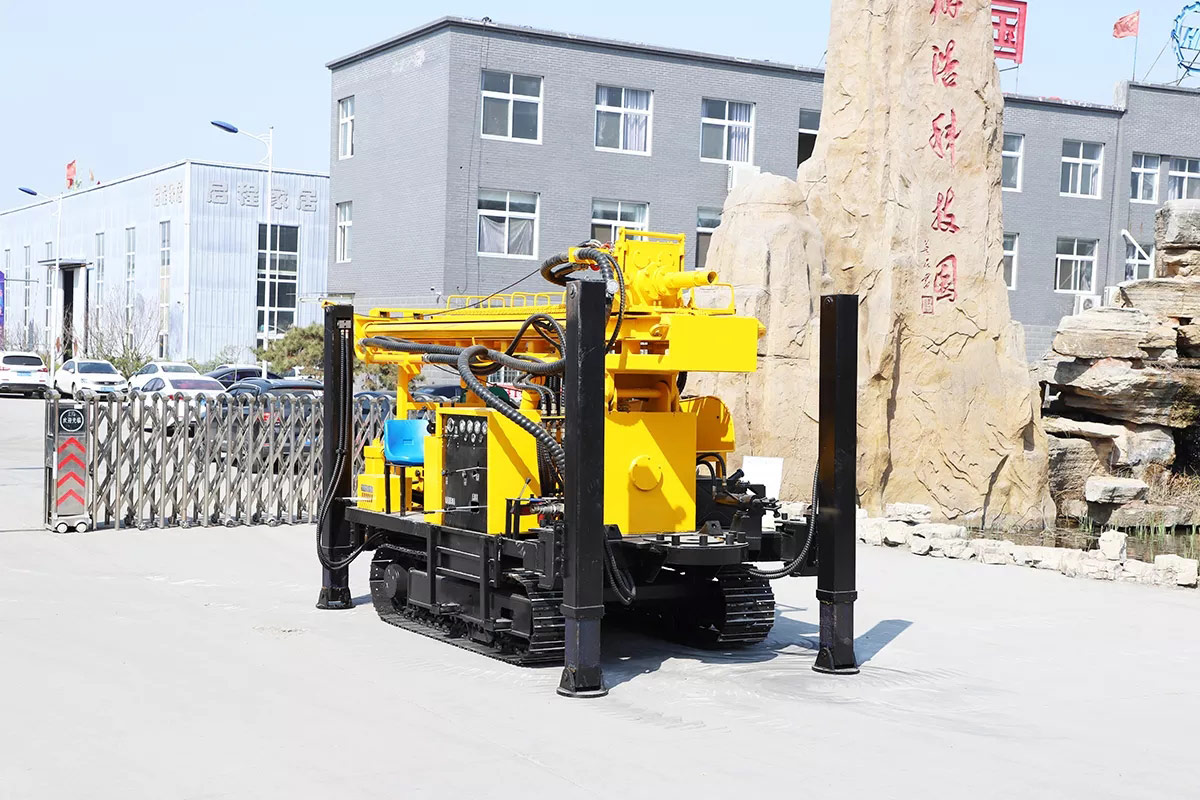

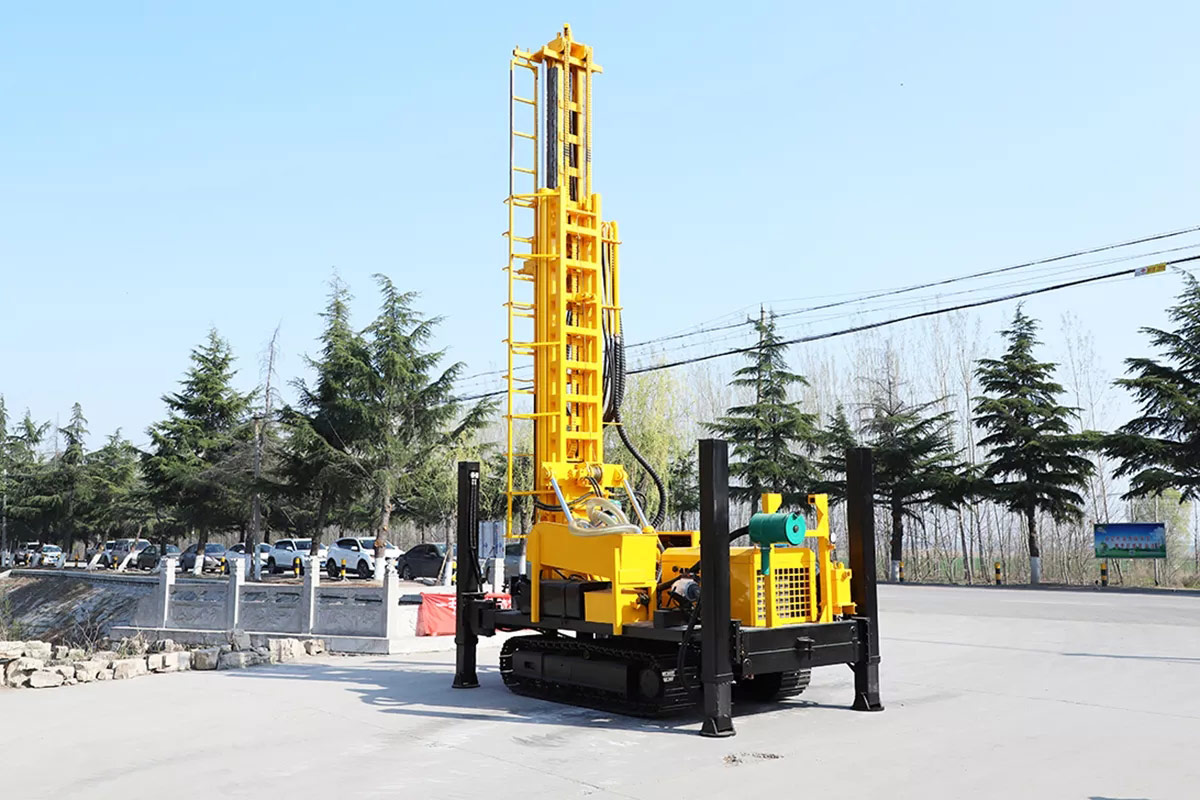

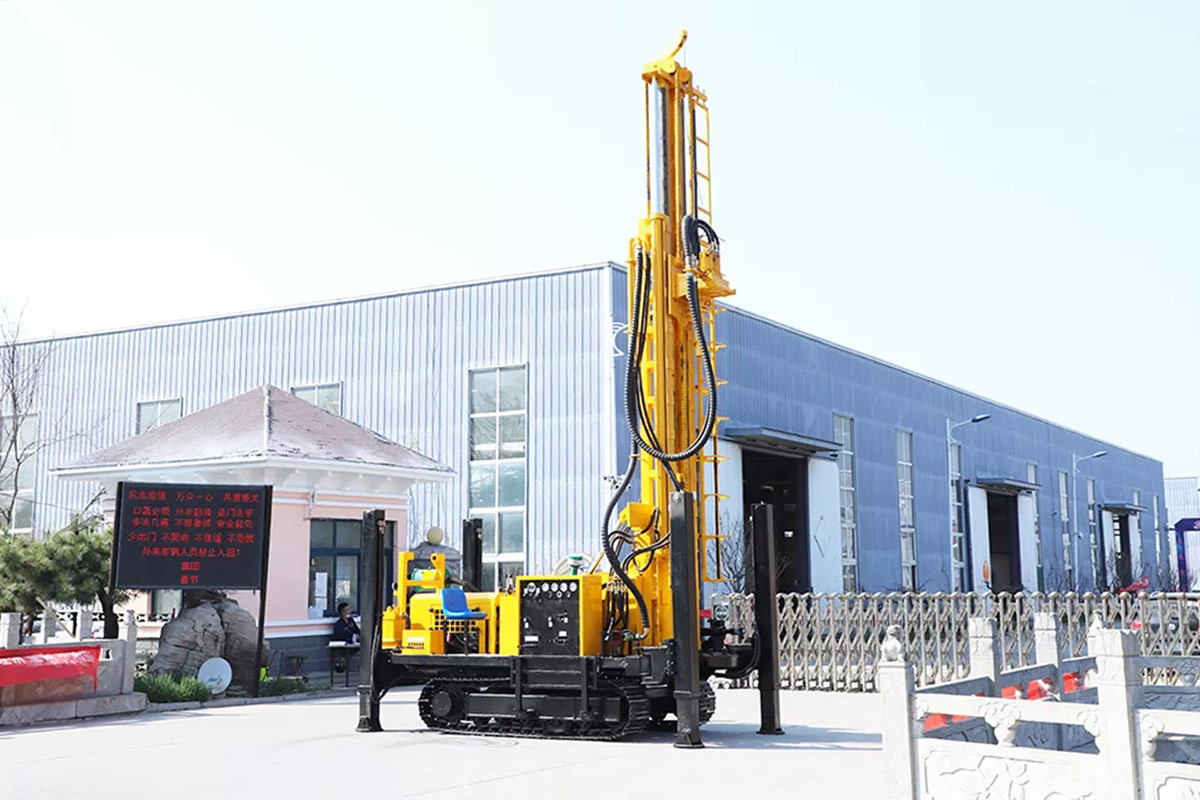

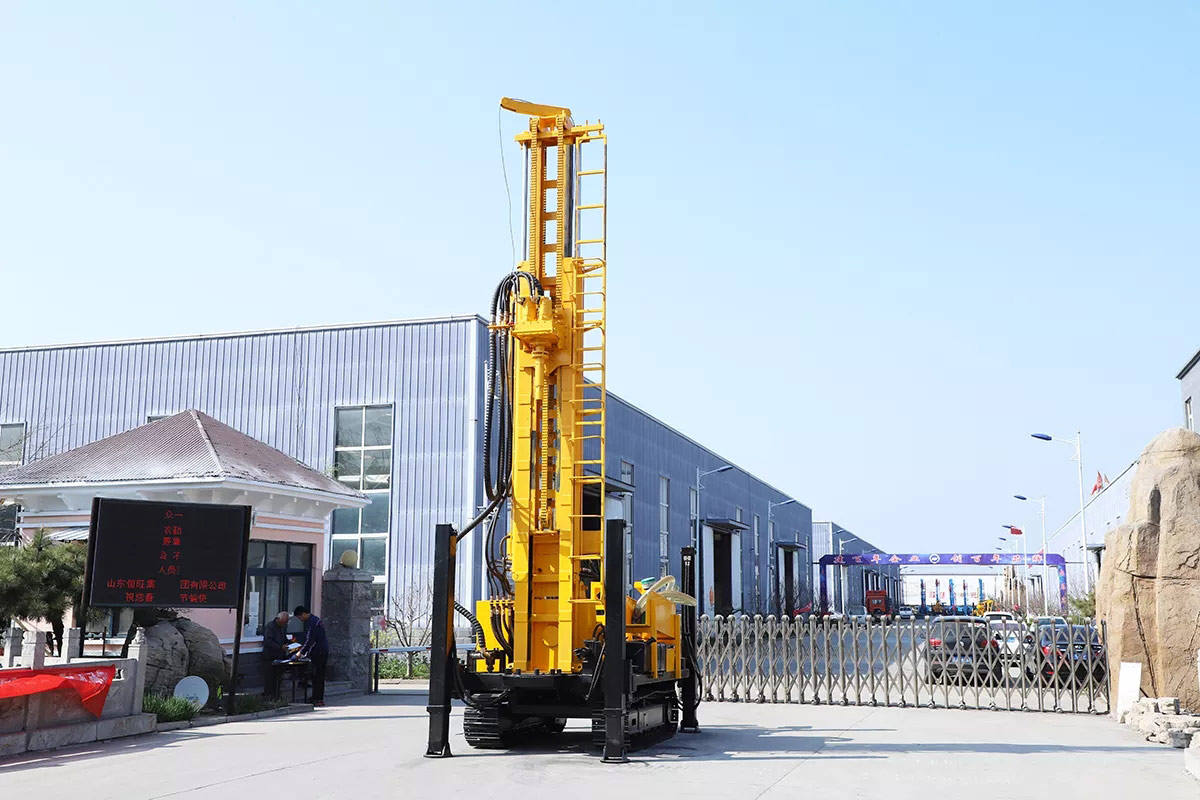

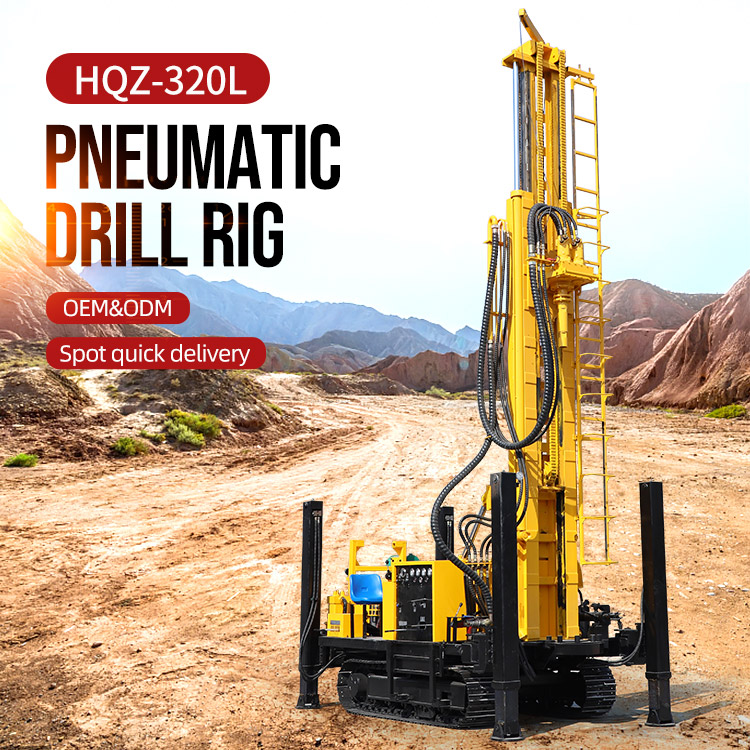

The HQZ pneumatic water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment designed for a variety of drilling projects, including industrial, civil drilling, and geothermal drilling.
Main feature:
1. The pneumatic drilling rig operates in conjunction with an air compressor, resulting in high working efficiency.
2. Enhanced work stability through increased counterweight, ensuring strong stability during drilling operations.
3. Perfect cooperation between the engine and hydraulic system, leading to reduced fuel consumption and improved fuel efficiency.
