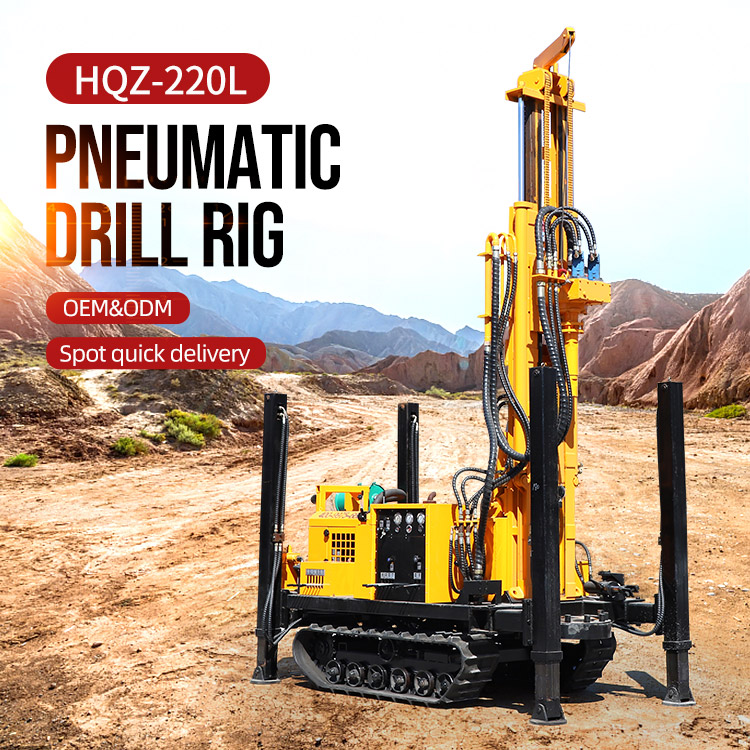

model	HQZ-220L
tower	3	m
Chassis	Rubber track            /           Steel  track	/
Drilling diameter	130-254	mm
Drilling depth	220	m
One-time advancement length	3.6	m
Walking speed	2.5	km/h
Maximum gradeability	30	/
Engine brand	Yunnei	/
Engine power	60	kw
working pressure	1.45-2.5	mpa
Air consumption	17-31	m³/min
Drill pipe diameter	76/89	mm
Drill pipe length	1.5/2.0/3.0	m
Lifting power	15	T
Swing speed	45-65	rpm
Rotating torque	4000-4600	N.m
Dimensions	3800*1700*2250      /       3500*1700*2250	mm
weight	4.5                           /                5	T

Due to the continuous updates and advancements in technology, the technical parameters and configurations of products are subject to change at the time of actual delivery. We strive to provide the most up-to-date and accurate information, but it is always recommended to confirm the technical specifications and configurations at the time of placing your order.

Main features:

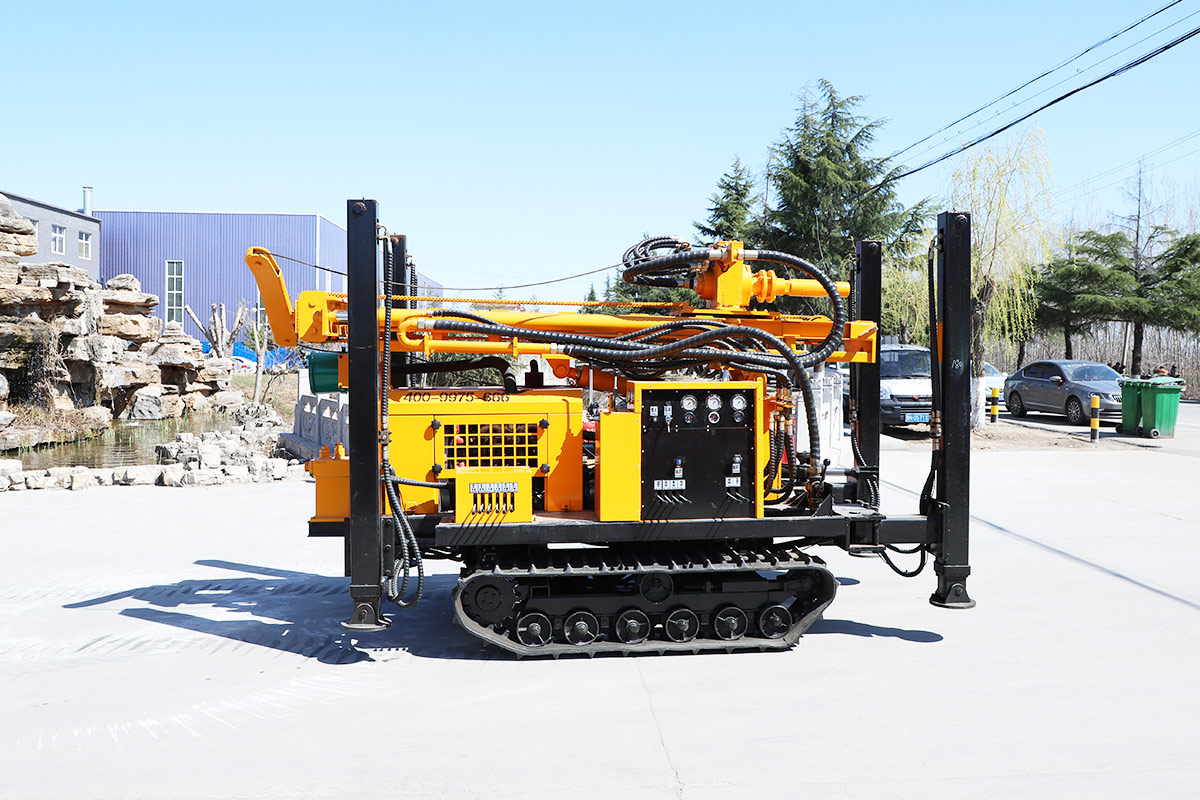

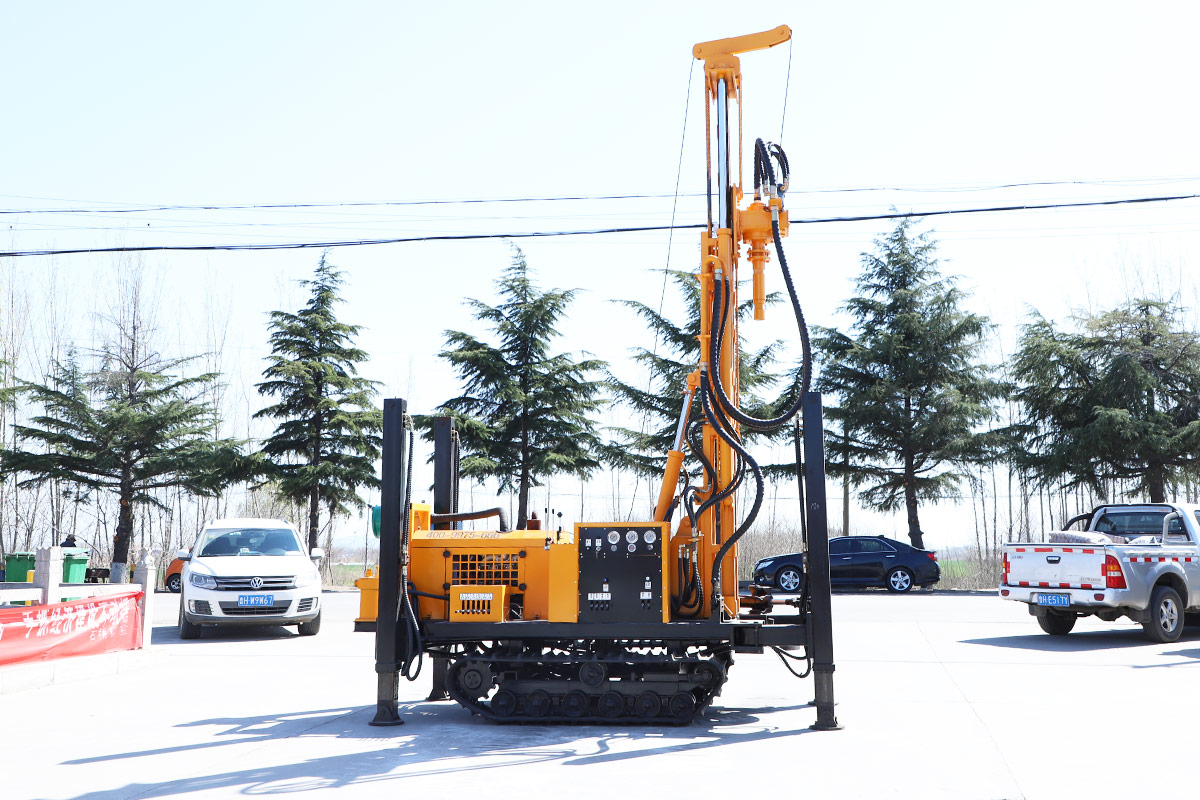

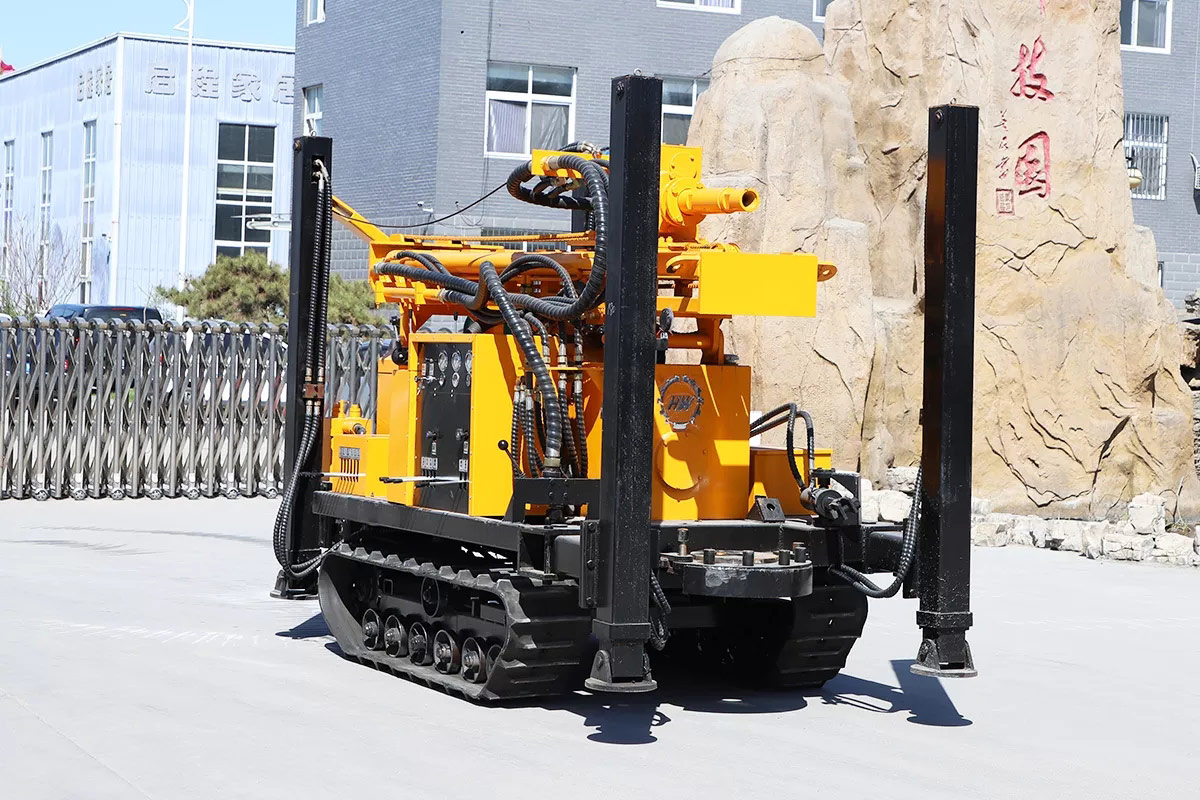

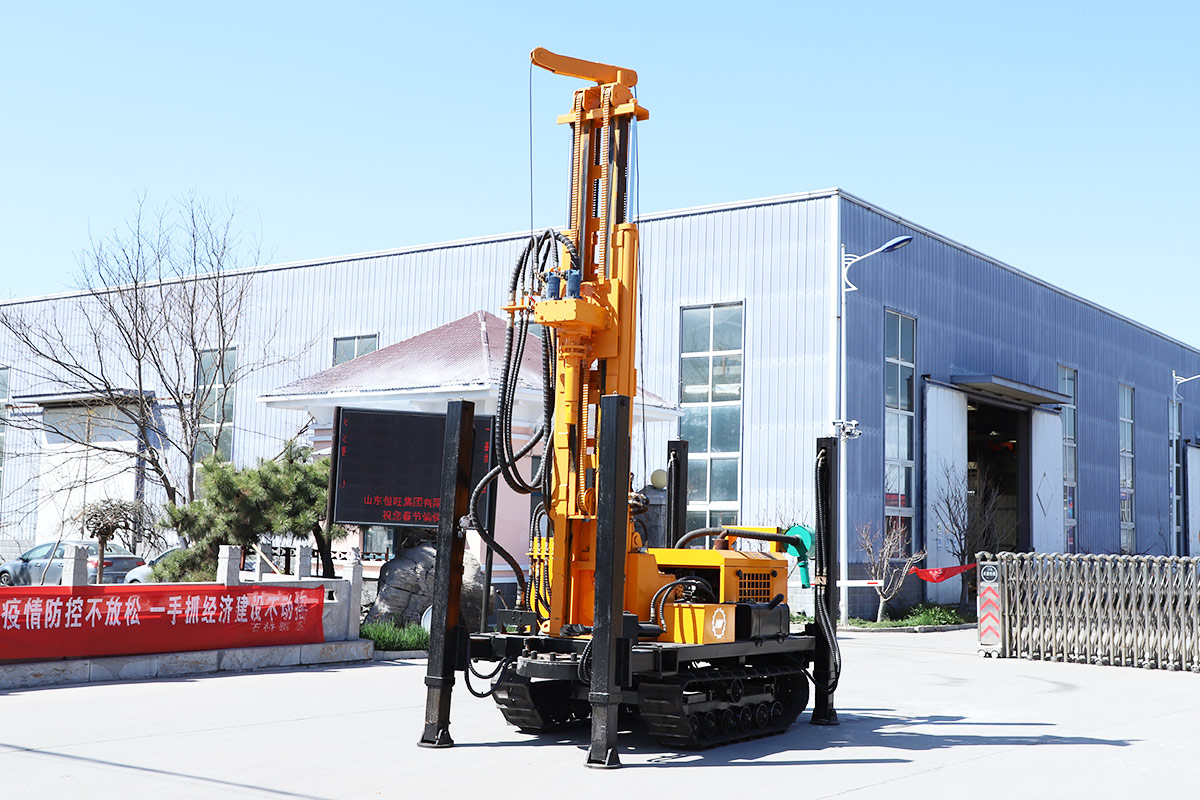

1. The water well drilling rig is specifically designed to enable drilling in areas with difficult terrain and limited space, allowing users to access challenging locations.

2. Enhanced work stability through increased counterweight, ensuring strong stability during drilling operations.

3. Perfect cooperation between the engine and hydraulic system, resulting in reduced fuel consumption and improved fuel efficiency.

Hengwang water well drilling rigs are built to be durable and highly reliable, providing safe and efficient operation even in the most demanding environments.

The versatility of the rig allows for various applications, including drilling water wells, conducting mineral exploration, geothermal installations, soil surveys, rock coring, and more. It can be conveniently mounted on tracks, skids, or trucks, providing flexibility and ease of transportation.
