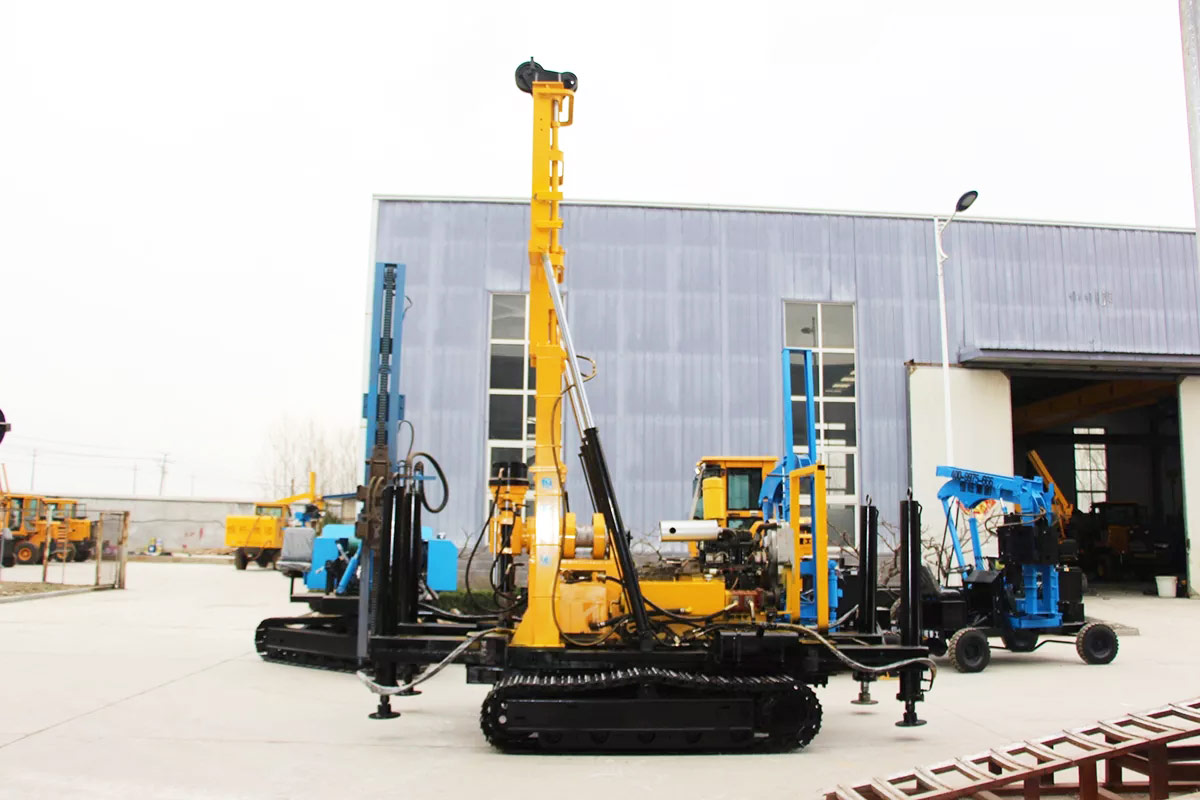

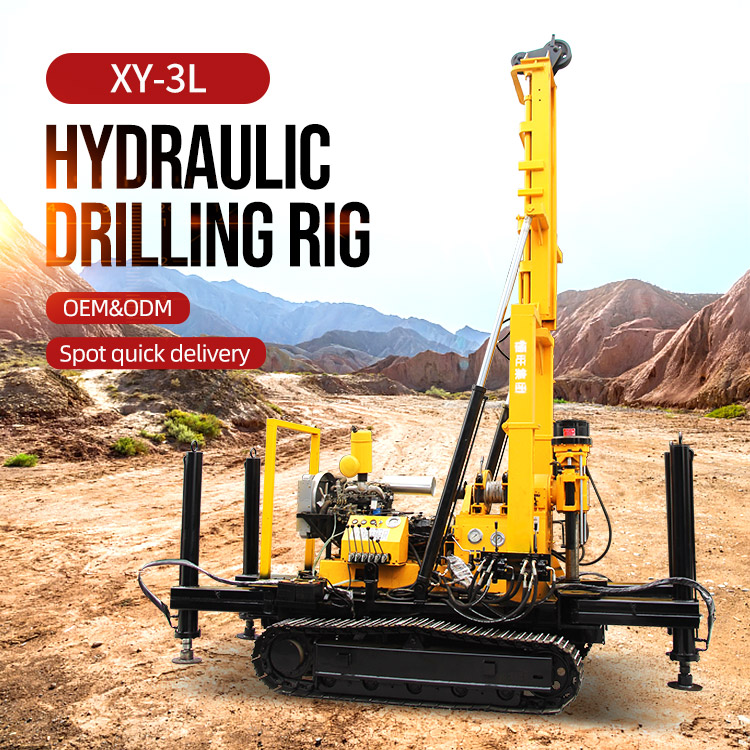

XY-3L Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling depth: 600m
Drilling diameter: 75-325mm
Rated Power: 42Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon


modelXY-3L
Drilling depth600m
Opening diameter325mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°
Engine power42kw
weight5000kg
Machine size3800*1950*2700mm
Vertical shaft speed32-1057r/min
Vertical axis travel600mm
Single rope lifting force3000kg
Single rope lifting speed0.3-1.9m/s
Wire rope diameterφ12.5mm
Wire rope capacity65m
Rated load18Ton
effective height11m
flow95L/Min
greatest pressure1.2Mpa
Optional configuration

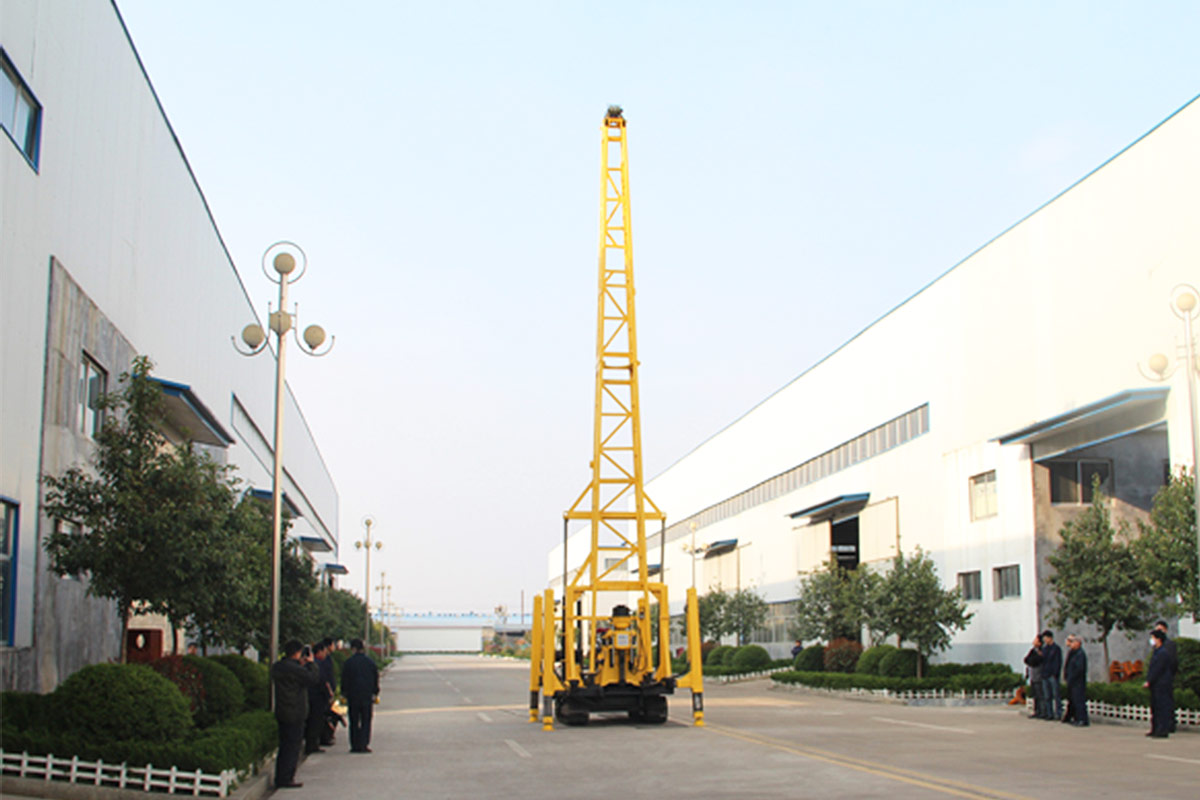

Walking Gantry


The Hengwang hydraulic drilling rig offers several key features:

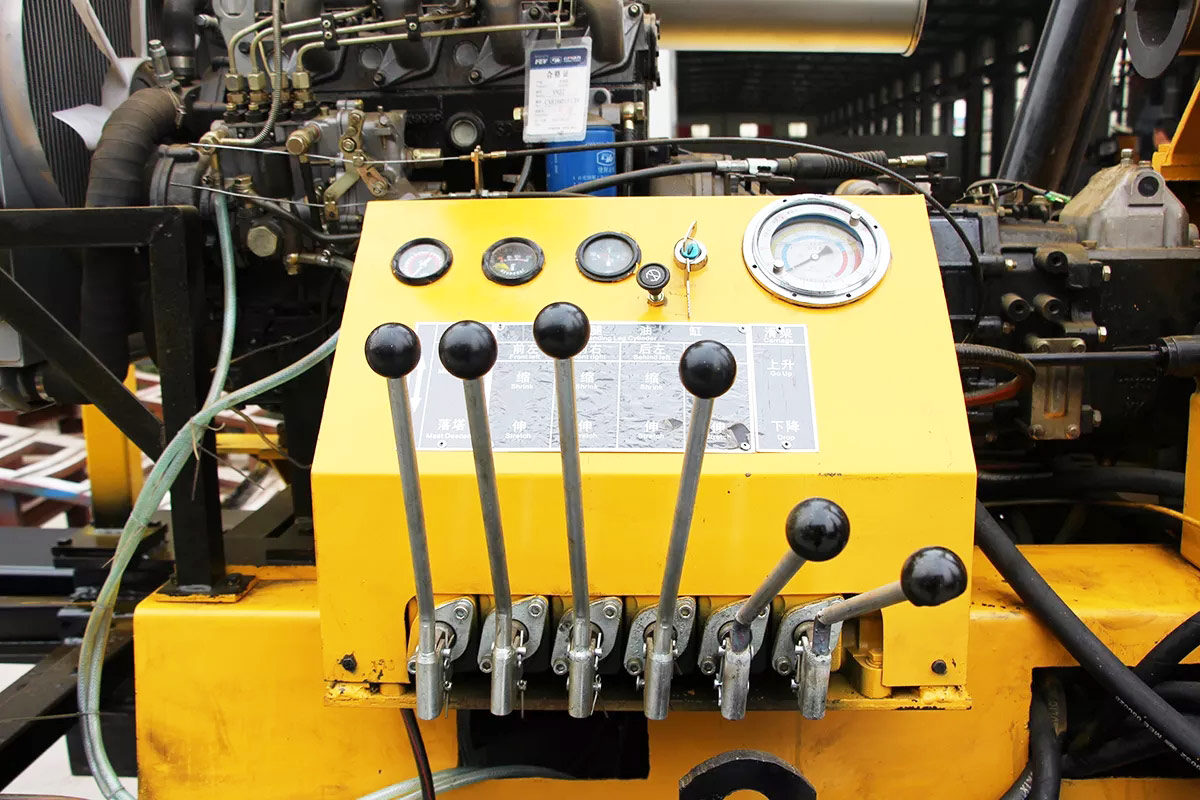

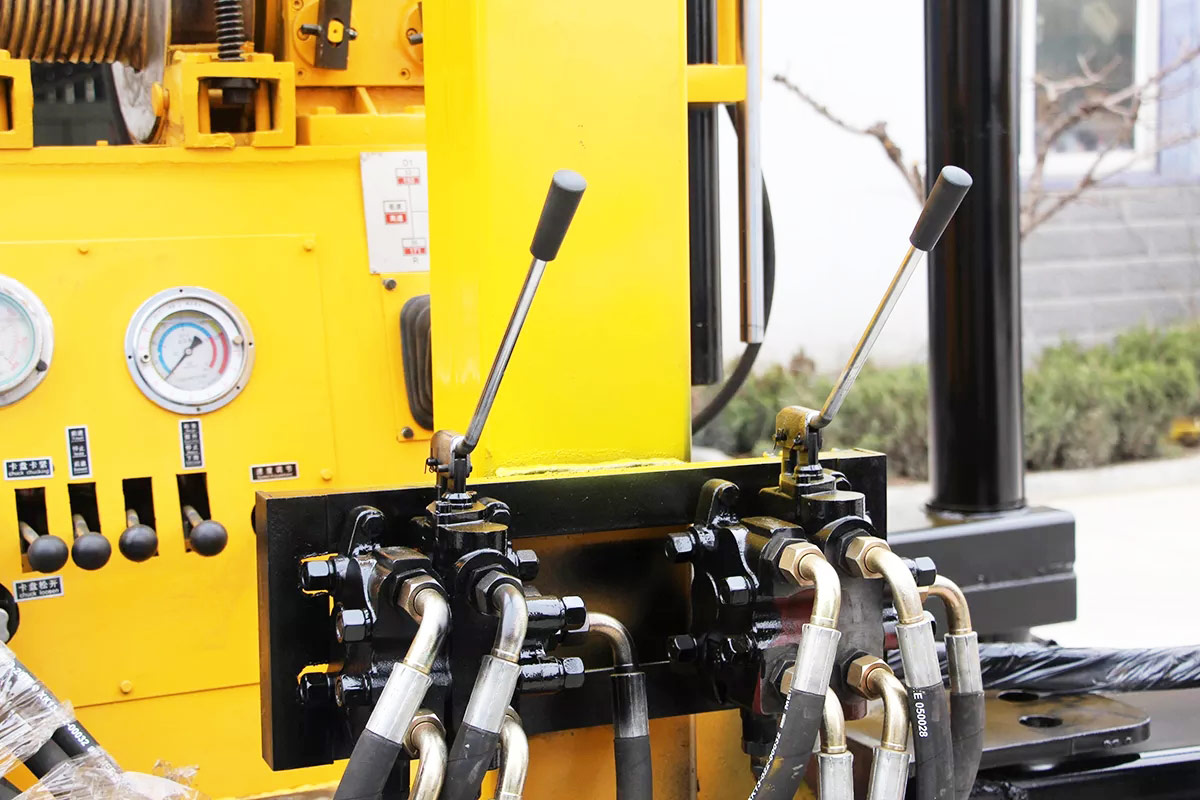

1. It utilizes a hydraulic automatic drilling mechanism, which enhances drilling efficiency and reduces labor intensity. This mechanism streamlines the drilling process, resulting in improved productivity.


2. The water well rig is specifically designed to achieve an optimal match between the engine and the hydraulic system. This synergy enhances overall performance and contributes to a notable reduction in fuel consumption by approximately 7%. It ensures cost-effectiveness and efficient operation.


3. The rig's compact and lightweight fuselage design enables it to operate in various terrains, including plains and mountainous areas. Additionally, it minimizes damage to vegetation during drilling operations, promoting environmental sustainability.


Please note that as technology continues to evolve, the technical parameters and configurations of the drilling rig may be subject to updates and improvements at the time of actual delivery. It is advisable to verify the specific technical specifications and configurations during the ordering process to ensure accurate and up-to-date information.
