Rated Power: 162 kW
Drilling diameter (mm)：φ90-115
Drill pipe type (mm)：φ76*3000
Drilling diameter (mm)：φ90-115
Drill pipe type (mm)：φ76*3000
| model | HW936 |
| engine | Cummins QSB5.9-220 (National III) |
| power（KW） | 162 |
| Drill pipe type（mm） | φ76*3000 |
| Drilling diameter（mm） | φ90-115 |
| Maximum working torque（N.m） | 2700 |
| Swing speed（rpm） | 70-150 |
| Propulsion（kN） | 15 |
| Lifting power（kN） | 25 |
| Propulsion method | Motor + chain |
| Leveling angle | ±10° |
| Walking speed（km/h） | 1.5-3 |
| Gradeability | 30° |
| gross weight（kg） | 9400 |
| Shipping dimensions（mm） | 8000*2300*2600 |
| Dust collection method | |
| exhaust volume | Displacement 16m³/min. Pressure 16bar |

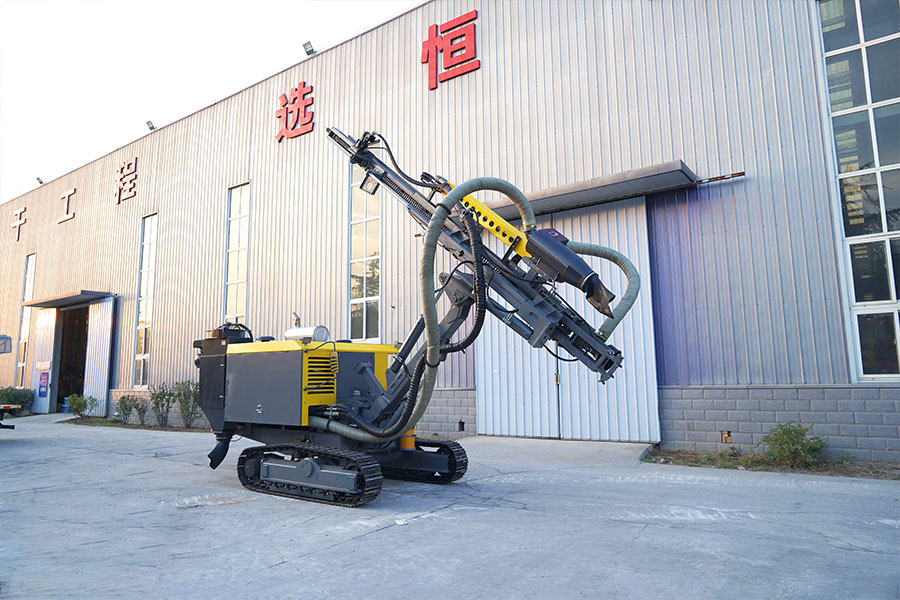

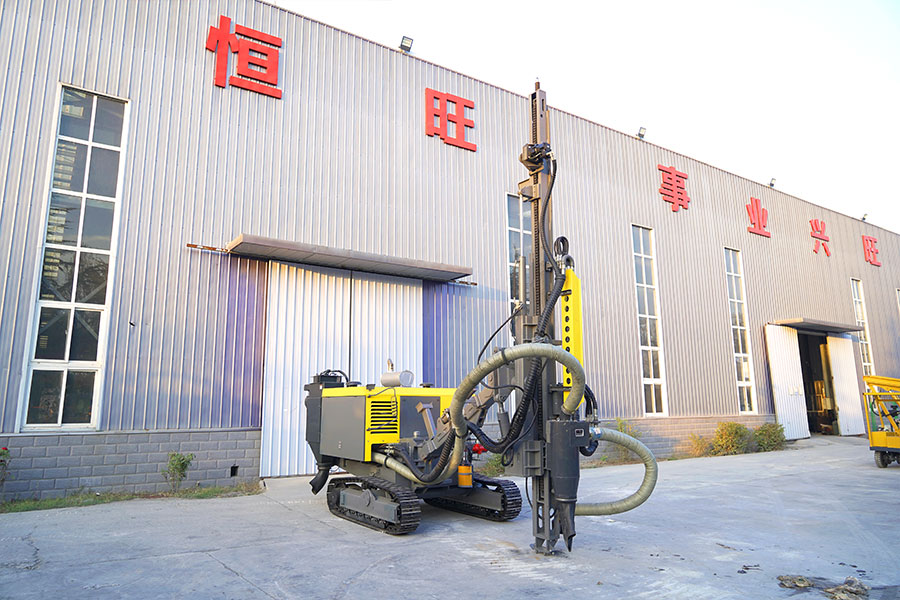

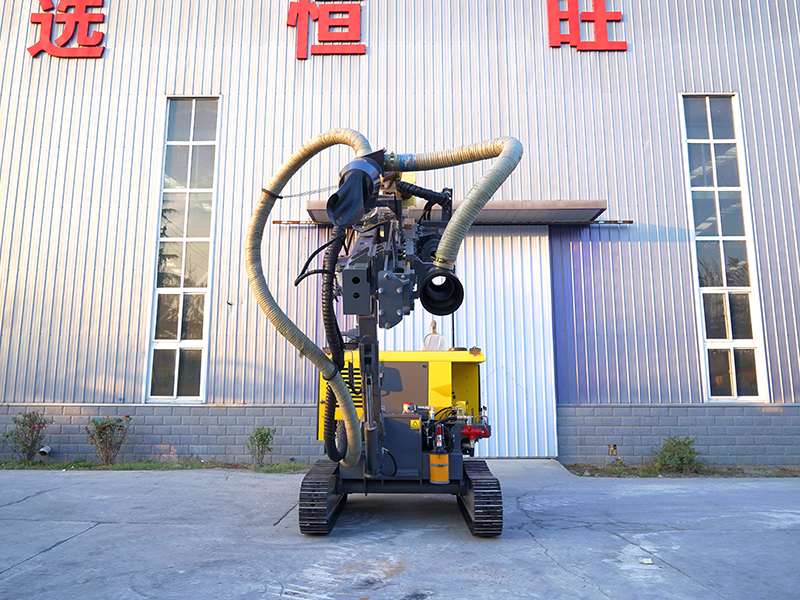

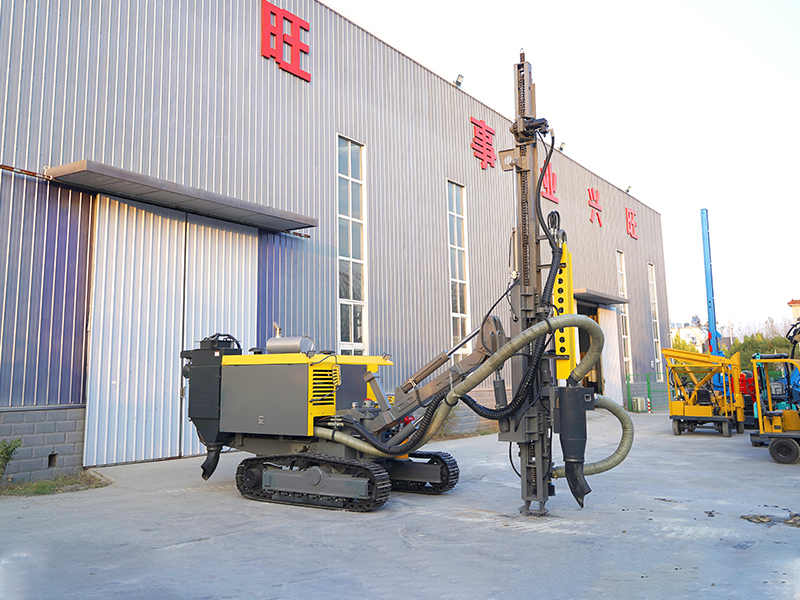

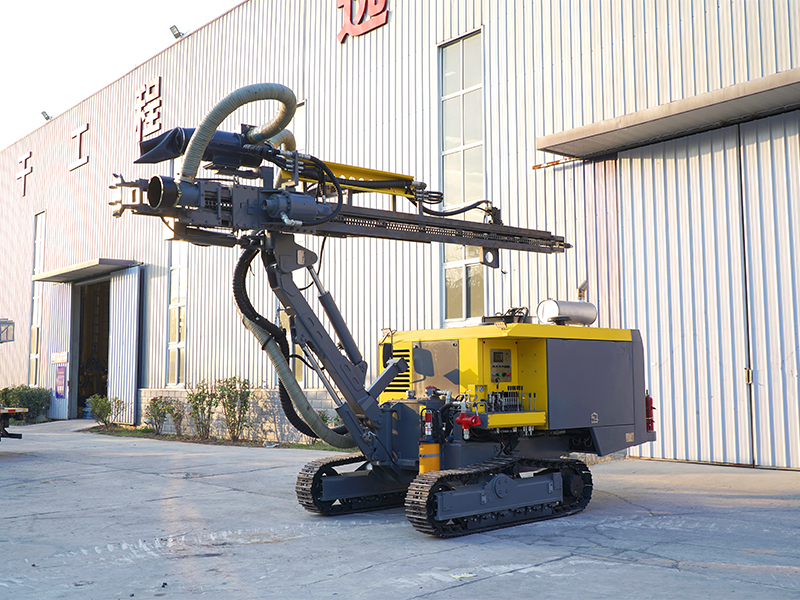

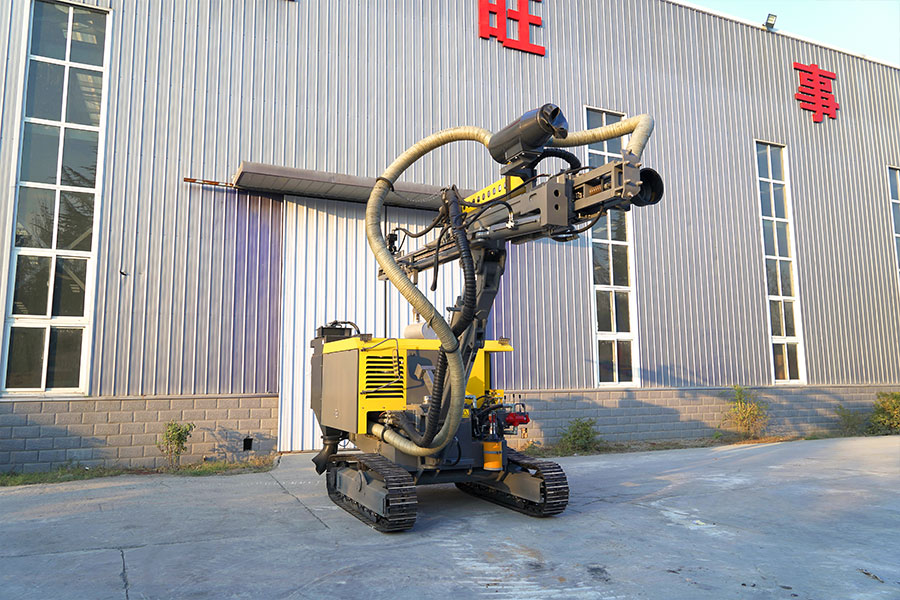

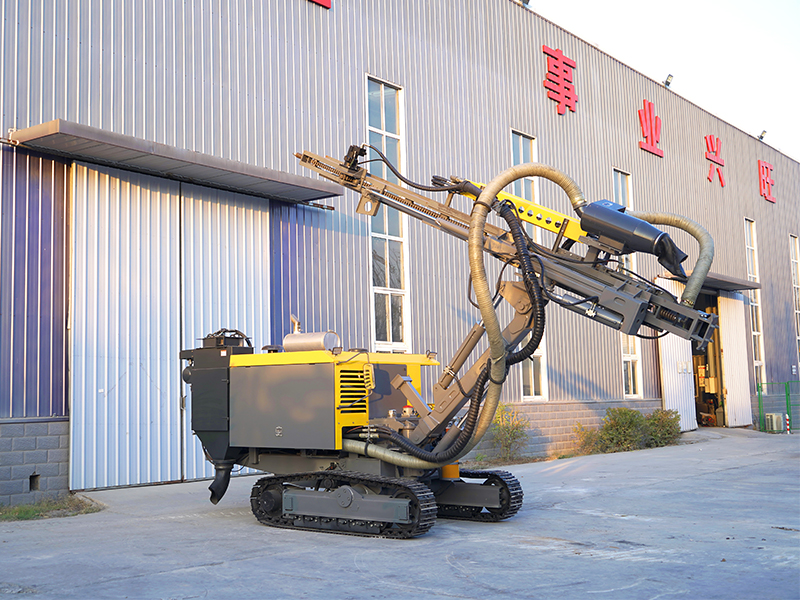

Thank you for providing the updated information about the DTH drilling rig.
Main feature:
1. The HW936 model is specifically designed for drilling blast holes with a diameter range of 90-115mm, which aligns with the mentioned specifications.
2. The rig is equipped with a dry dust collector, which helps in minimizing environmental pollution. It also features a drill pipe changer, allowing for efficient and convenient pipe replacement during drilling operations. The rig incorporates advanced design and layout for enhanced performance.
3. The HW-936 model, purpose-built for hard strata conditions, is a suitable choice for metal, limestone, dolomite, and aggregate open cast quarries and mines.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
