Rated Power: 162kW
Propulsion: 7.5kN
Drill Diameter: 90-127 mm
Propulsion: 7.5kN
Drill Diameter: 90-127 mm
Crazy Engineering Day discounts, submit the form to receive discounts on orders.

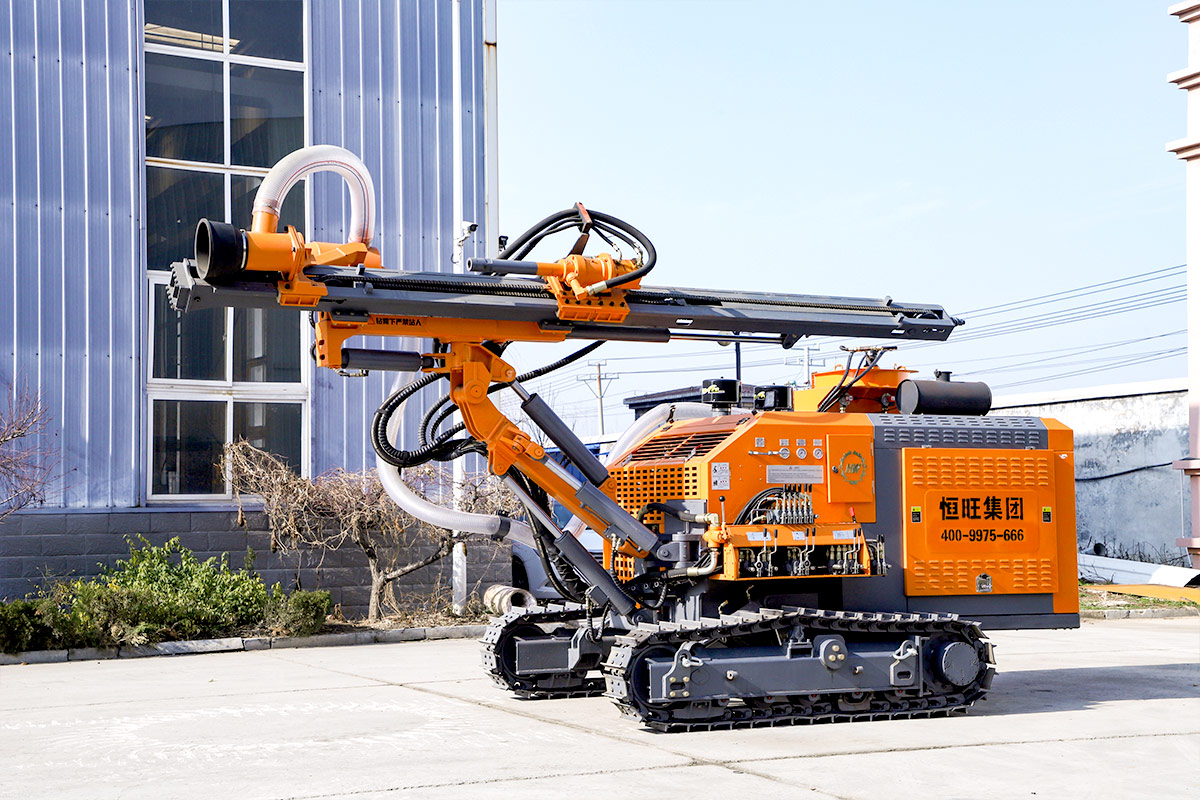

Parameter
| model | HW935 |
| engine | Yuchai |
| power（KW） | 162 |
| Drill pipe type（mm） | φ60*3000 |
| Drilling diameter（mm） | φ90-127 |
| Maximum working torque（N.m） | 1500 |
| Swing speed（rpm） | 0-135 |
| Propulsion（kN） | 7.5 |
| Lifting power（kN） | 31 |
| Propulsion method | oil cylinder chain |
| Leveling angle | ±10° |
| Walking speed（km/h） | 3 |
| Gradeability | 30° |
| gross weight（kg） | 7150 |
| Shipping dimensions（mm） | 7480*2300*2750 |
| Dust collection method | Dry dust collection |
| exhaust volume | Displacement 15m³/min. Pressure 12bar |
| Power Head | 10/15 |

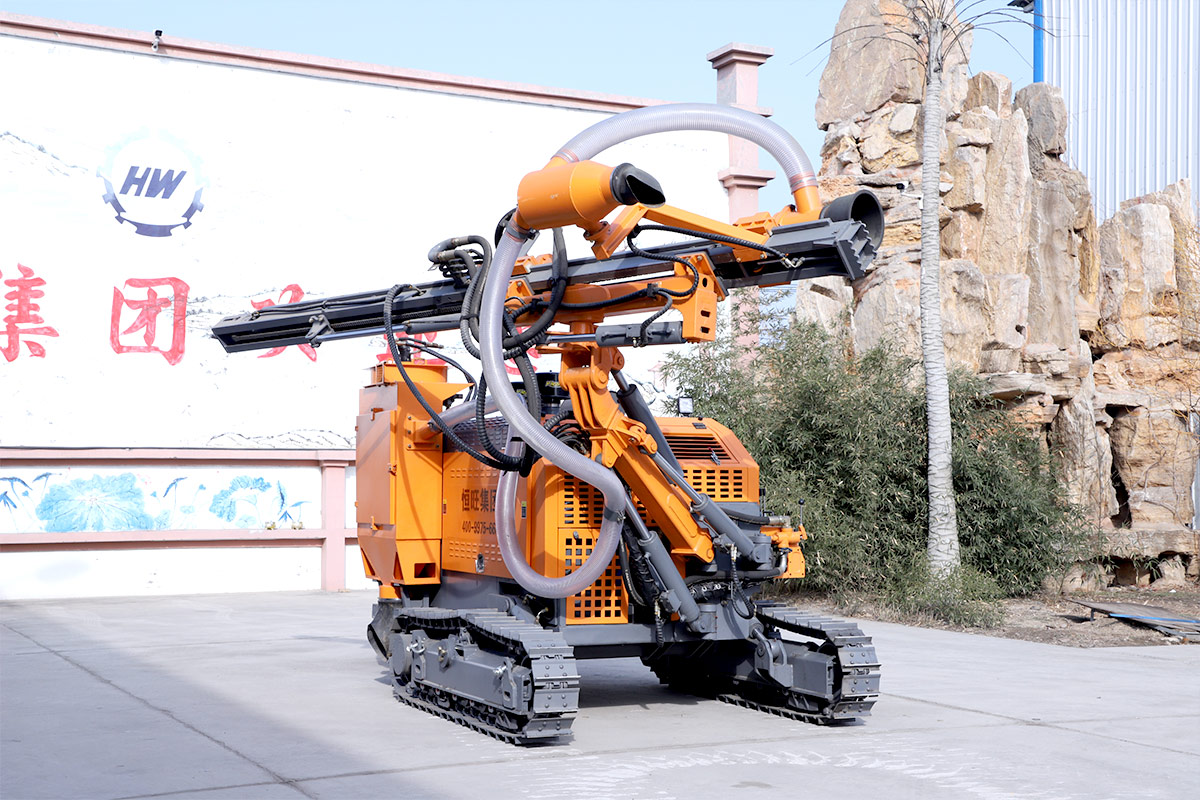

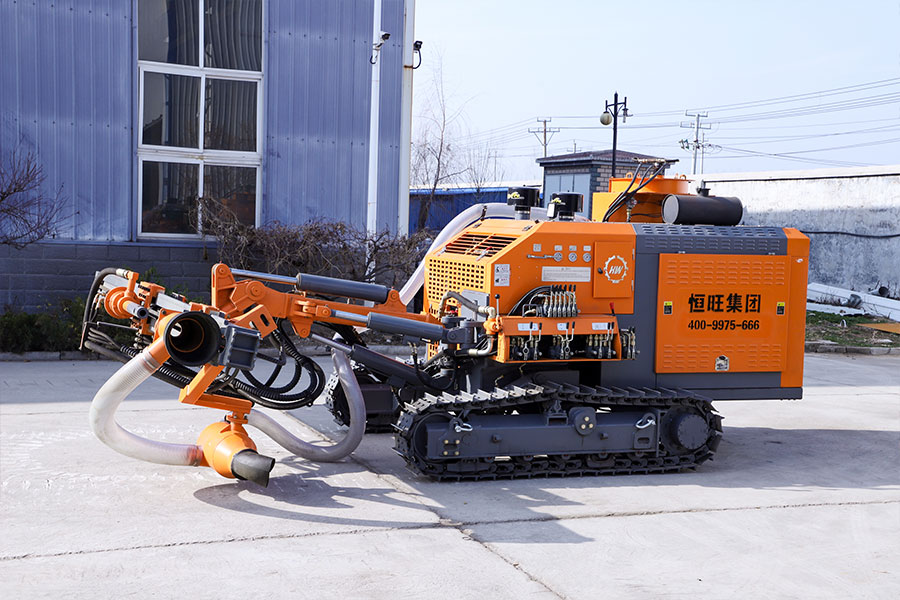

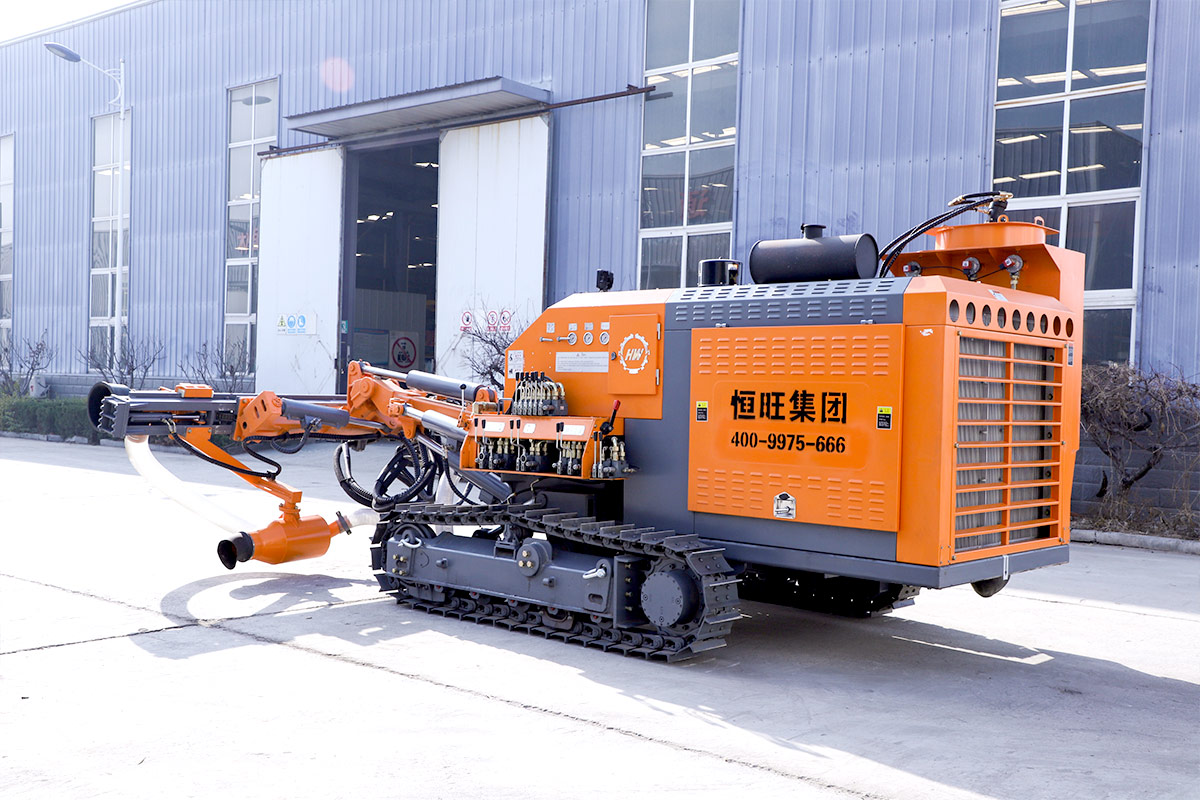

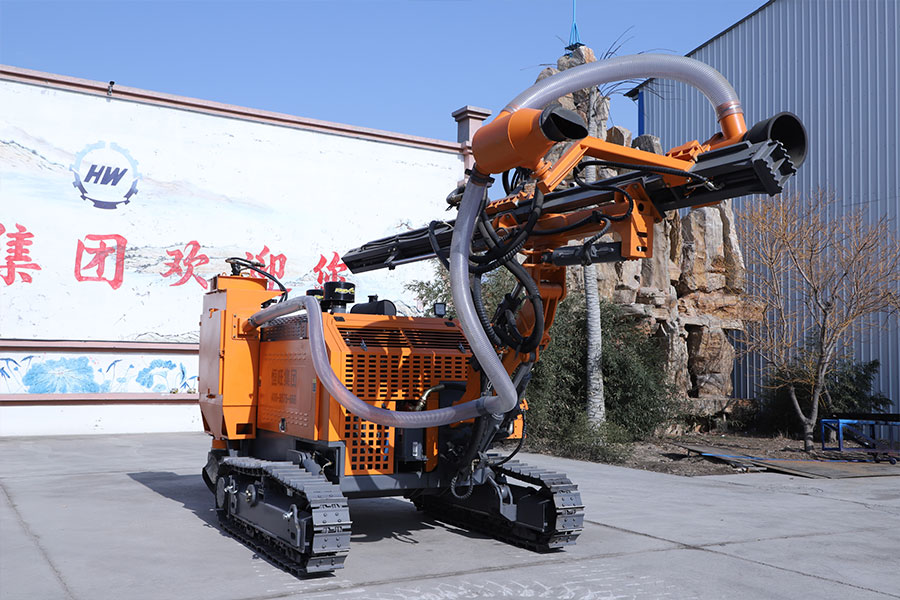

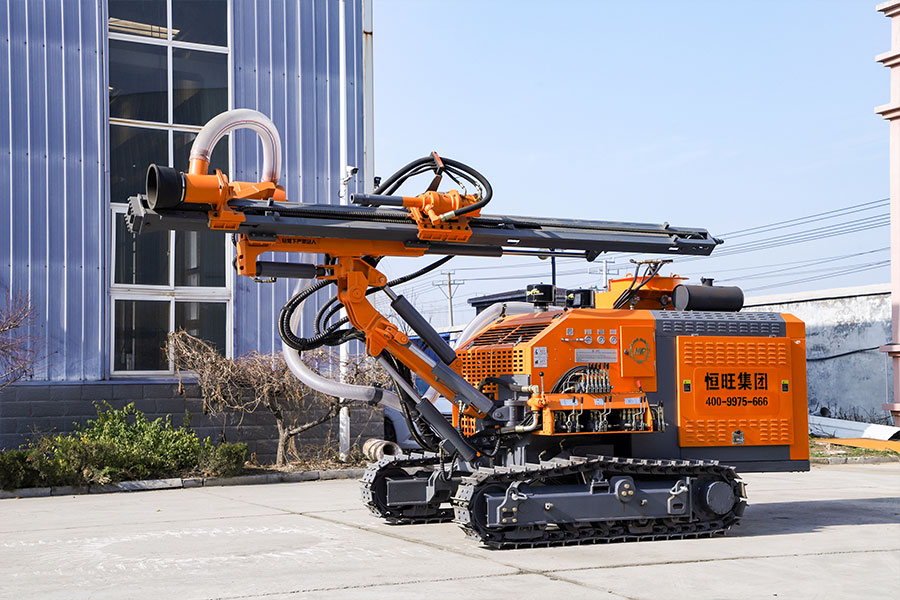

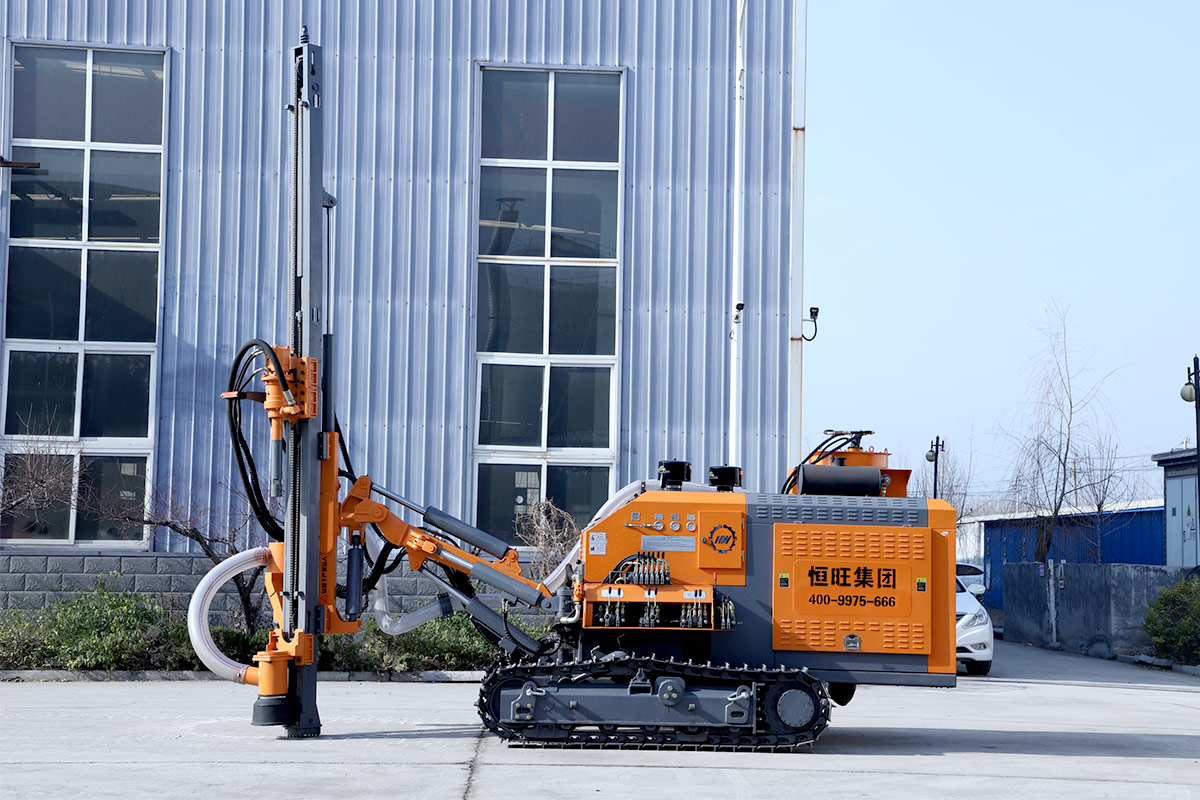

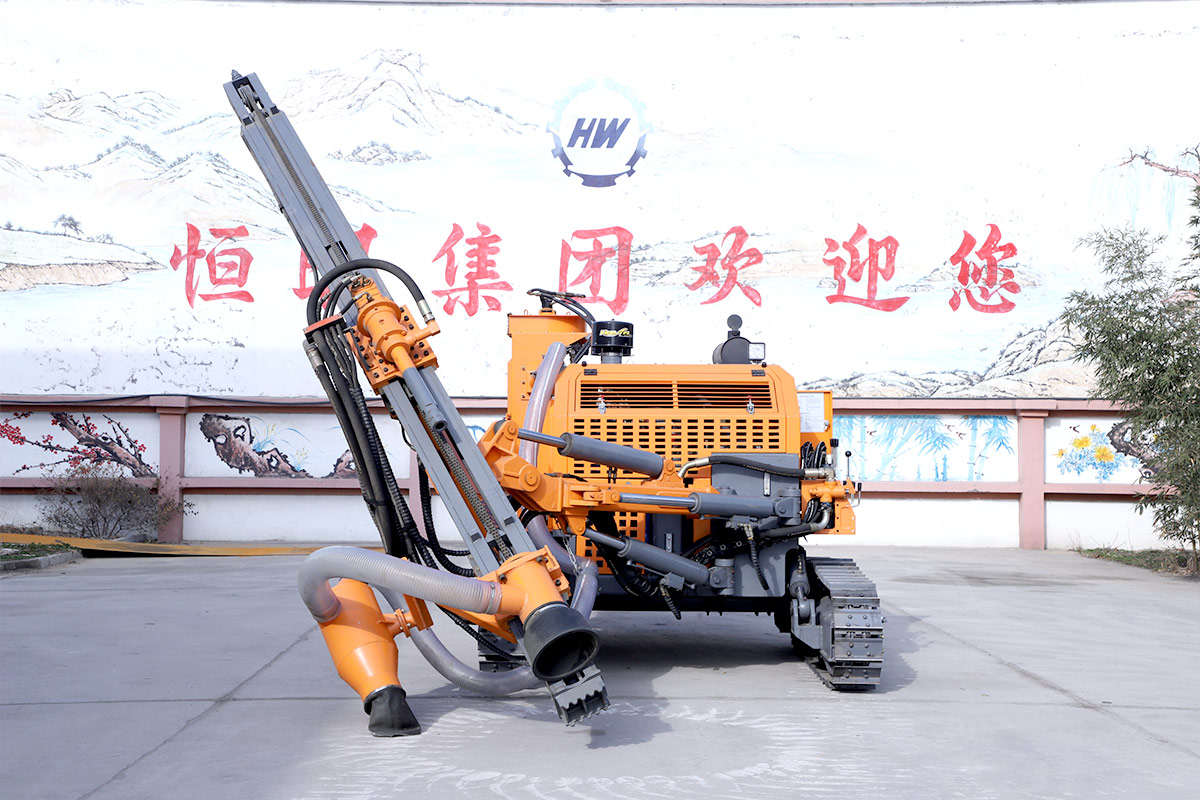

Main features:
1. Equipped with a two-stage dry dust removal device, minimizing environmental pollution during drilling operations.
2. Centralized console design enhances operational efficiency and reduces labor costs.
3. The crawler chassis ensures stability and enables the drilling rig to adapt to various challenging working conditions.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
