Rated Power: 78KW
Drill Diameter: 90-152 mm
Weight: 5500 kg
Drill Diameter: 90-152 mm
Weight: 5500 kg
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon
Main parameters
| model | HW920 | HW920-1 |
| engine | yuchai ycd4t22t-105a | yuchai ycd4t22t-105a |
| power（KW） | 78 | 78 |
| Drill pipe type（mm） | φ60*3000 | φ60*3000 |
| Drilling diameter（mm） | φ90-152 | φ90-152 |
| Maximum working torque（N.m） | 3200 | 3200 |
| Swing speed（rpm） | 0-150 | 0-150 |
| Propulsion（kN） | 15 | 15 |
| Lifting power（kN） | 25 | 25 |
| Propulsion method | oil cylinder chain | oil cylinder chain |
| Leveling angle | Adjustable, 15° front and rear | Adjustable, 15° front and rear |
| Walking speed（km/h） | 3 | 3 |
| Gradeability | 30° | 30° |
| gross weight（kg） | Approximately 5000 | 5500 |
| Shipping dimensions（mm） | 5500*2050*2600 | 5500*2050*2600 |
| Dust collection method | detachable | Dry dust collection |
Main feature:
1. HW920 is designed for drilling 90-130mm.

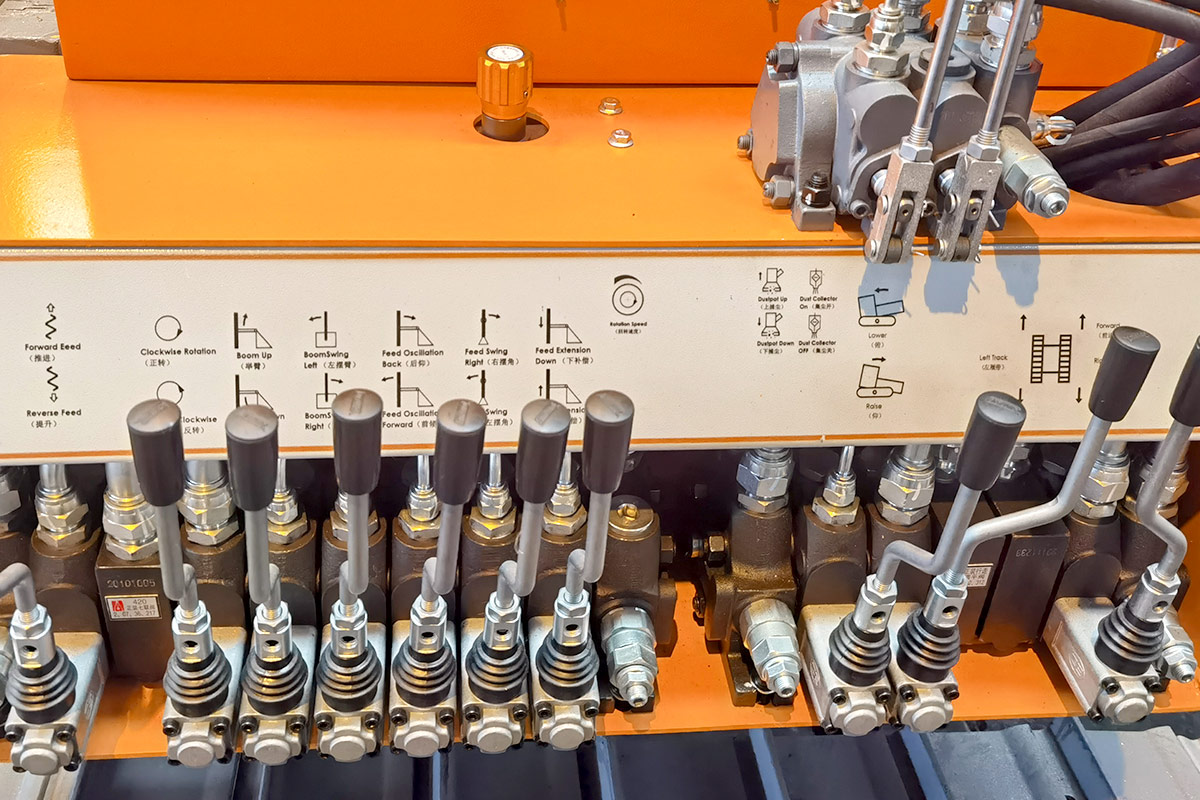

2. Centralized console to improve efficiency and reduce labor costs;
3. Diesel powered down-the-hole (DTH) rigs have excellent maneuverability, smaller footprint and the ability to serve multiple locations.
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
