Drill Diameter: 300-1000mm
Drill Depth: 80m
Machine Weight: 3.2T
Drill Depth: 80m
Machine Weight: 3.2T

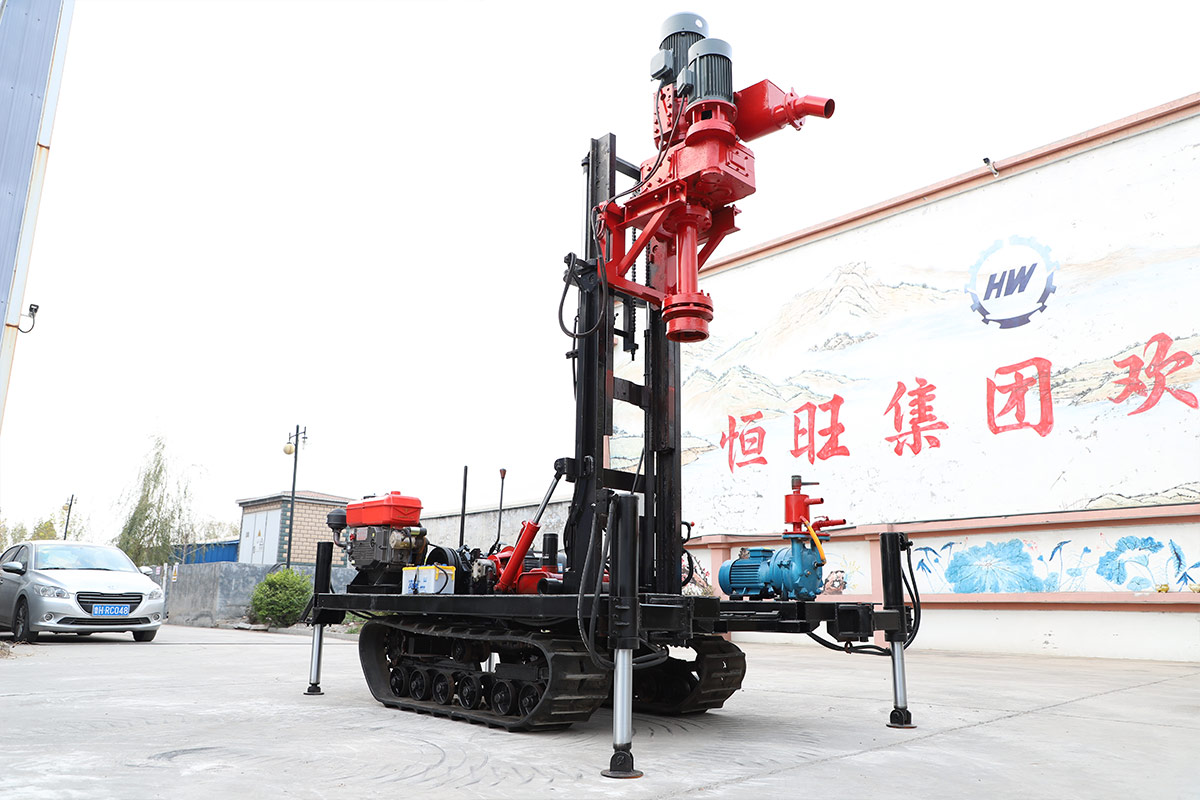

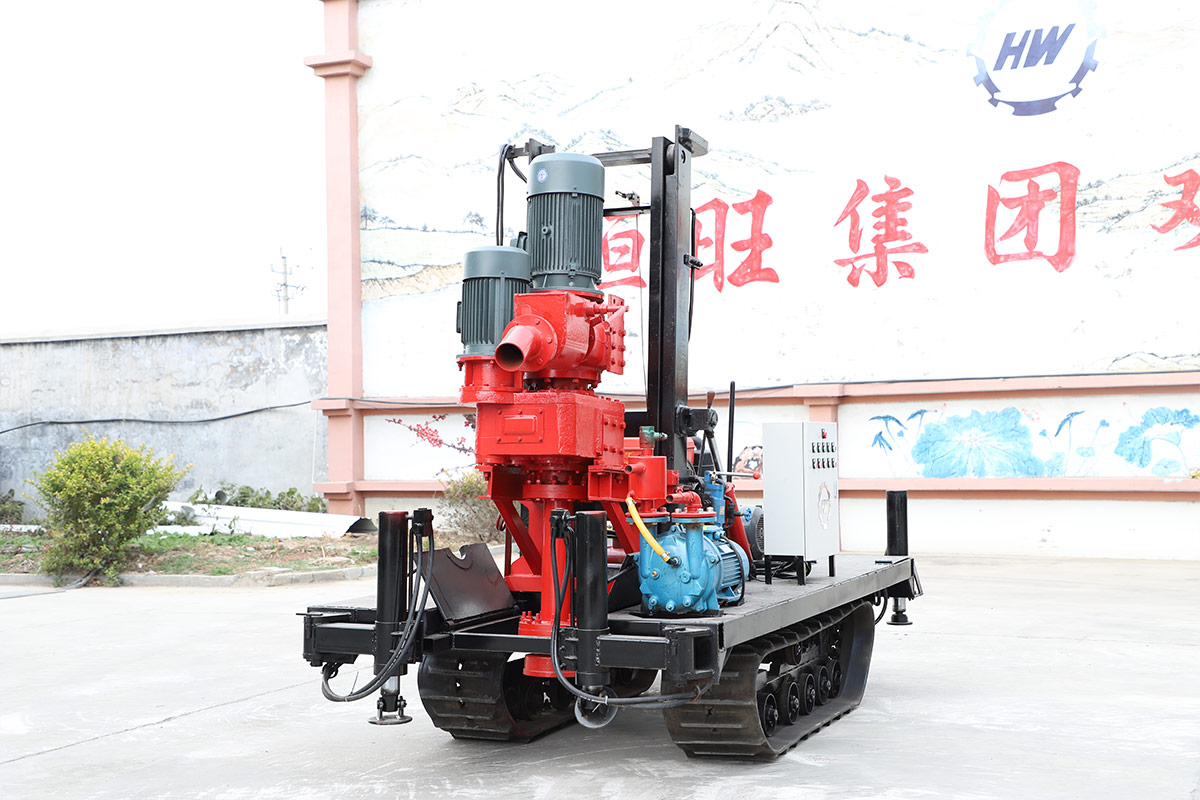

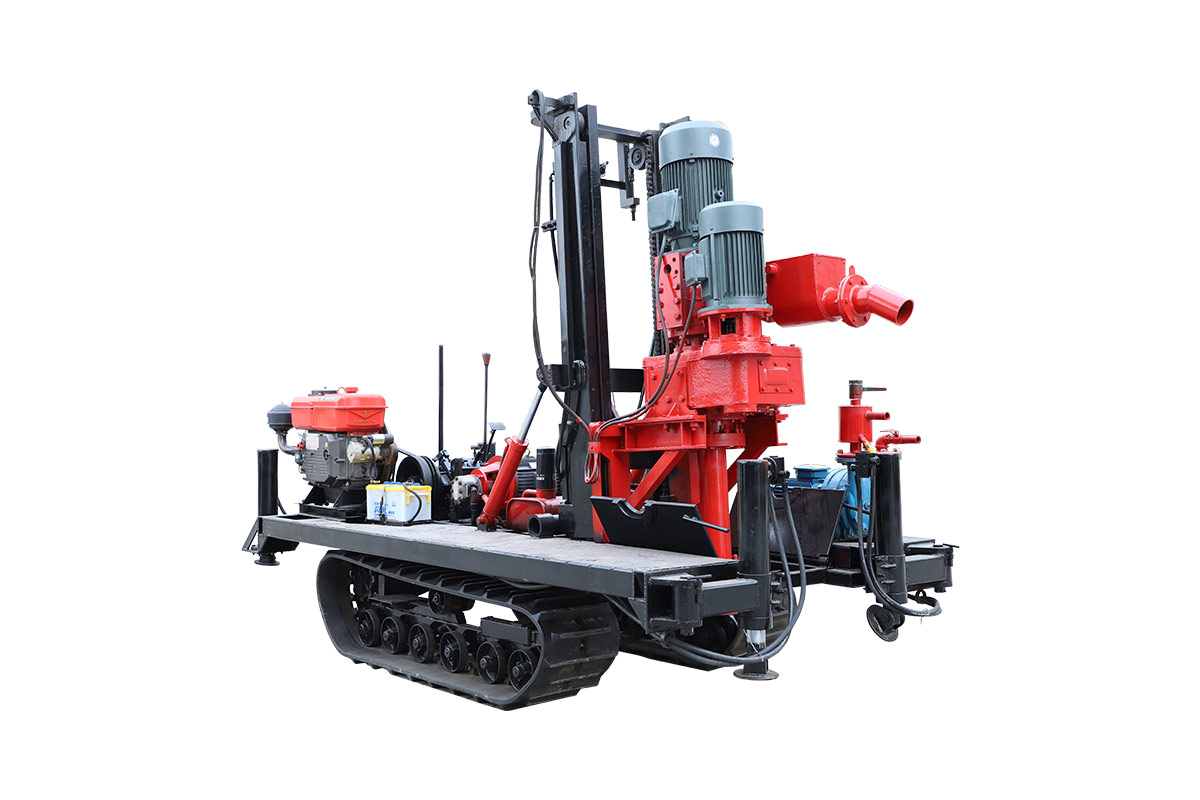

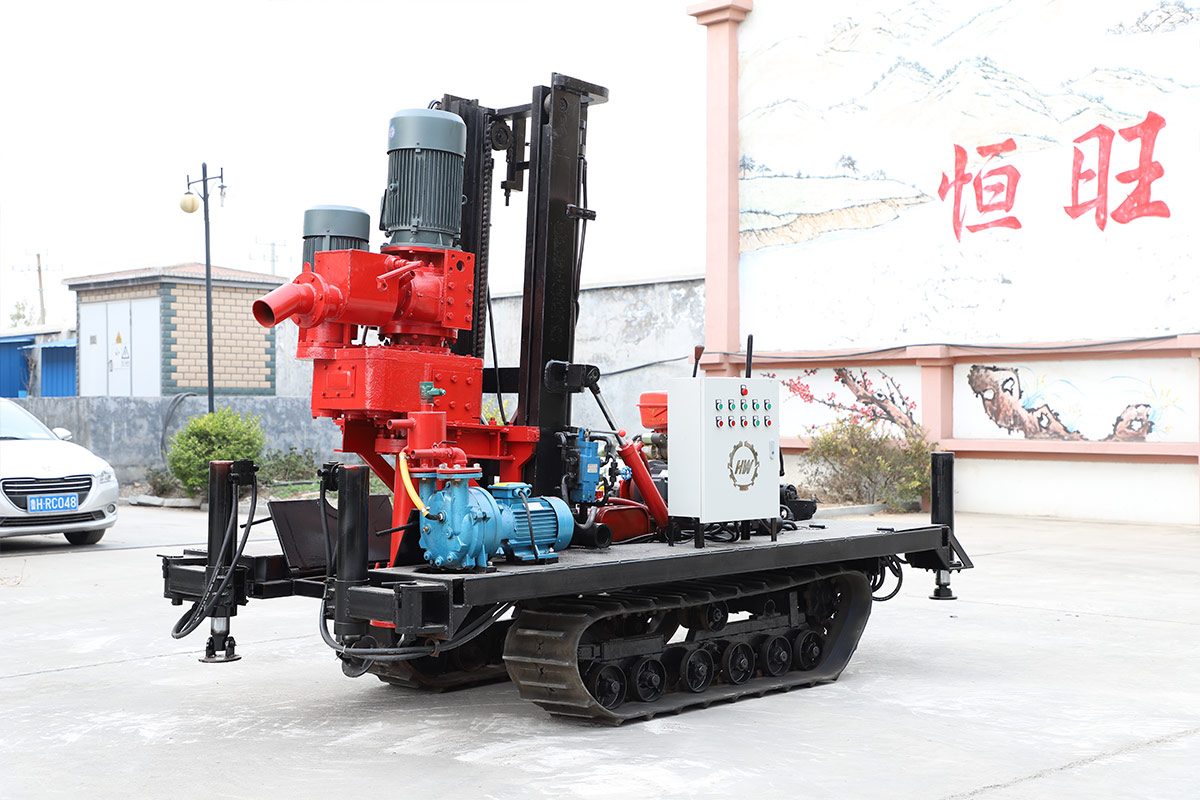

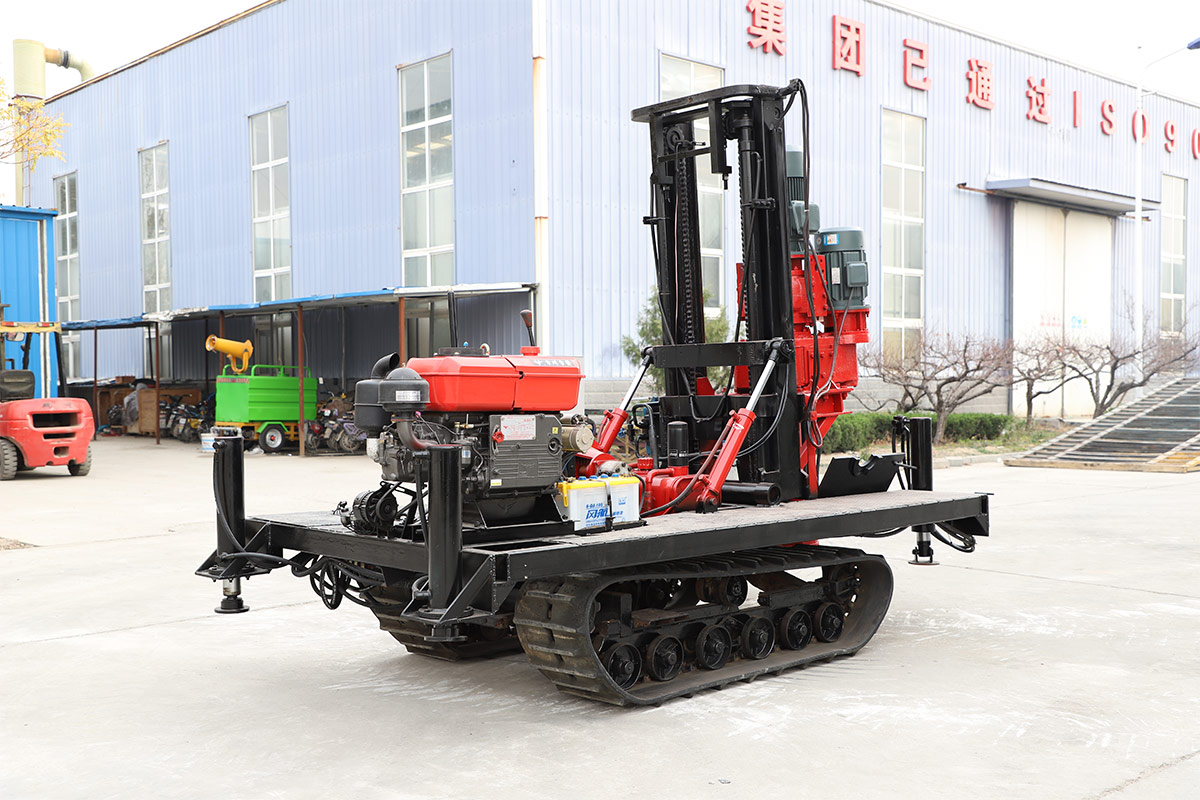

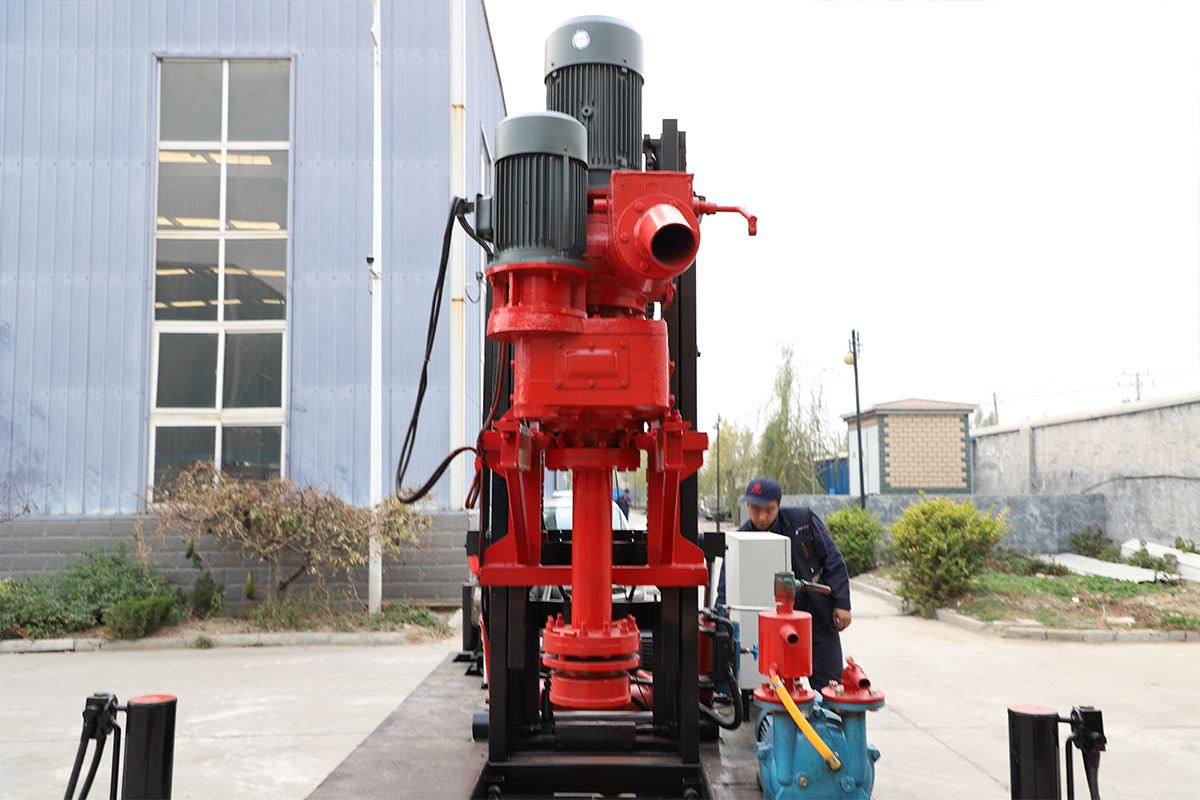

JZF-D positive and negative circulation drilling rig is a crawler type drilling rig that integrates positive circulation and reverse circulation drilling functions.
The positive circulation is mainly used for drilling sandy soil, and the reverse circulation is mainly used for slime or pebble.
This drilling rig can easily handle the drilling of soil, sand, slime, and pebble layers. It has been widely used in drilling wells, farm irrigation wells, and engineering pile holes.
JZF-D Reverse Circulation Drilling Rig Features:

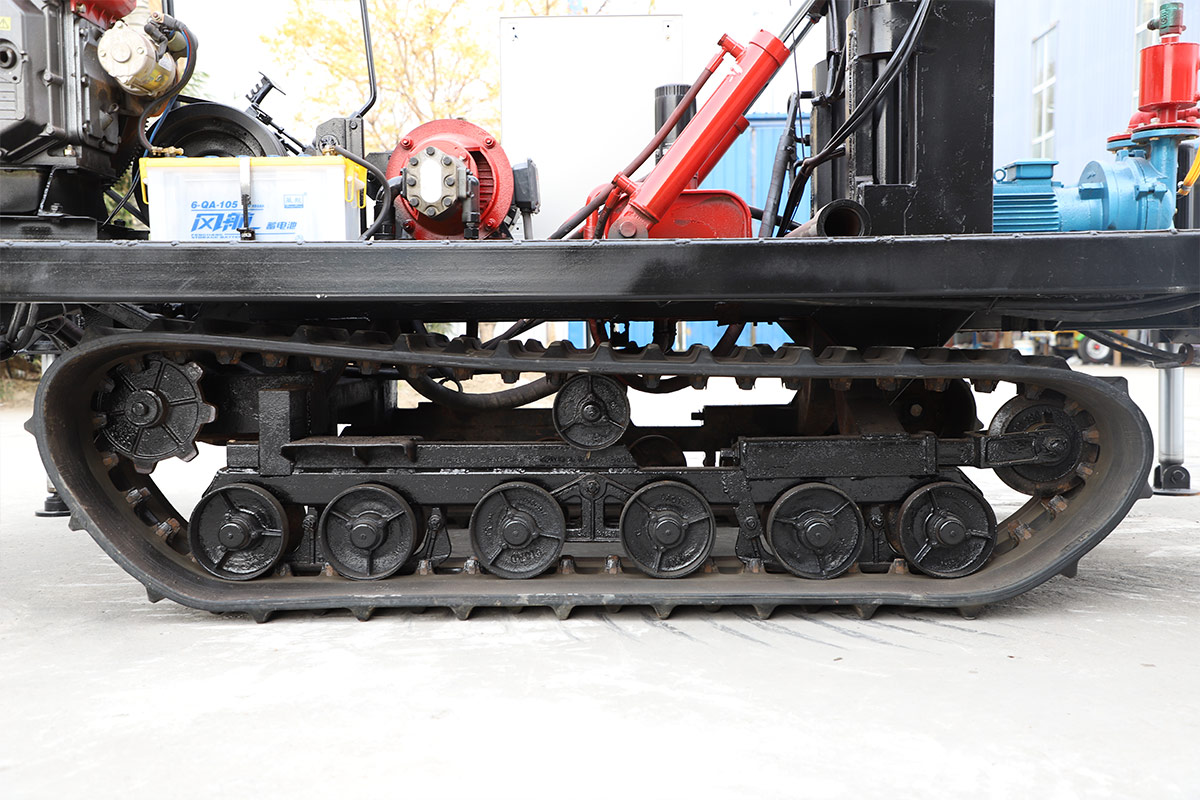

1. The steel wire rubber track chassis is adopted to reduce the walking noise of the vehicle and not hurt the road when walking on urban roads.
2. The crawler chassis is equipped with hydraulic outriggers to facilitate the leveling of the rig.
3. The walking chassis is equipped with an electric start diesel engine, which reduces the labor intensity of the operator, especially in cold seasons.
| Model | JZF-D |
| Drilling diameter (m) | 300-1000 (Reverse cycle) |
| Drilling diameter (m) | 200-850 (Positive cycle) |
| Drill rod specifications | φ140*2000 |
| Reverse circulation pump moto (kw) | 15 |
| Hydraulic oil pump (hp) | 4 |
| Machine weight (T) | 3.2 |
To get the latest parameters and quotations, please submit the form.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
